IMPACT™
Heavy-Duty
Straight Blade
Quick Specs
- 6'0" Blade Width
- 261 lb Approx. Weight
- Full Angle: 5'4" Plowing Width (Full Angle)
- Moldboard: Powder-Coated Steel
- Fits: Full Sized UTVs & Series 1 Tractors
Verify compatibility and part number information
PRO-GRADE POWER
SCALED FOR SIDEWALK USE

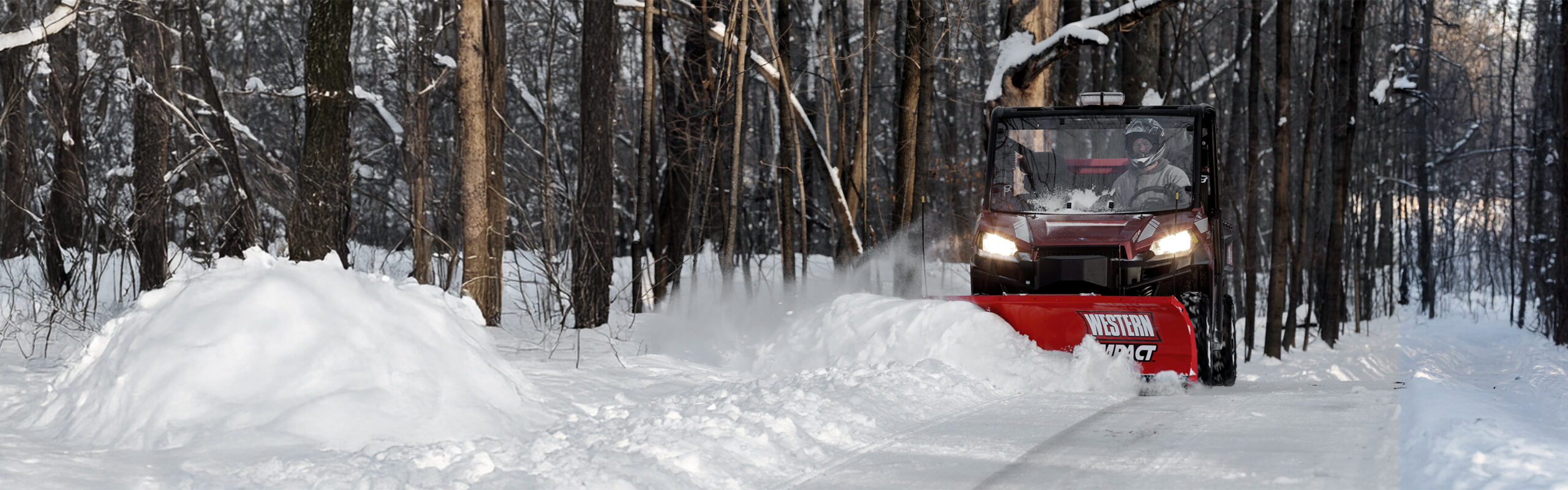

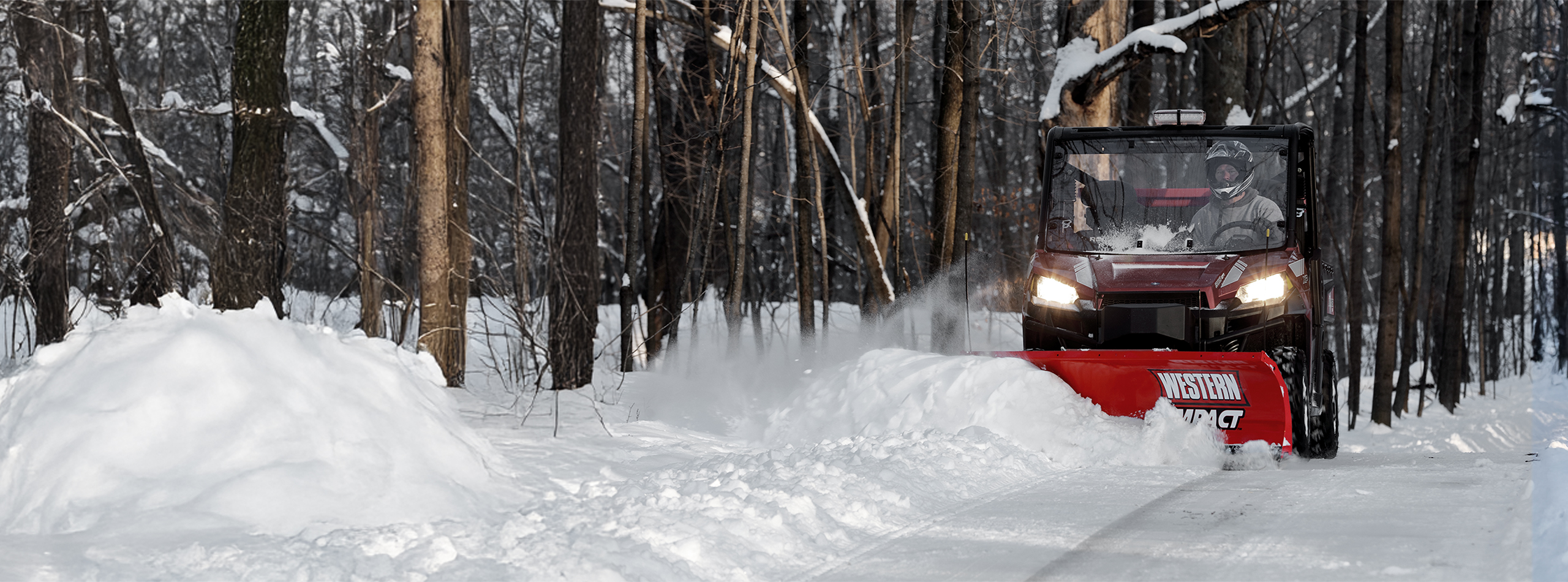

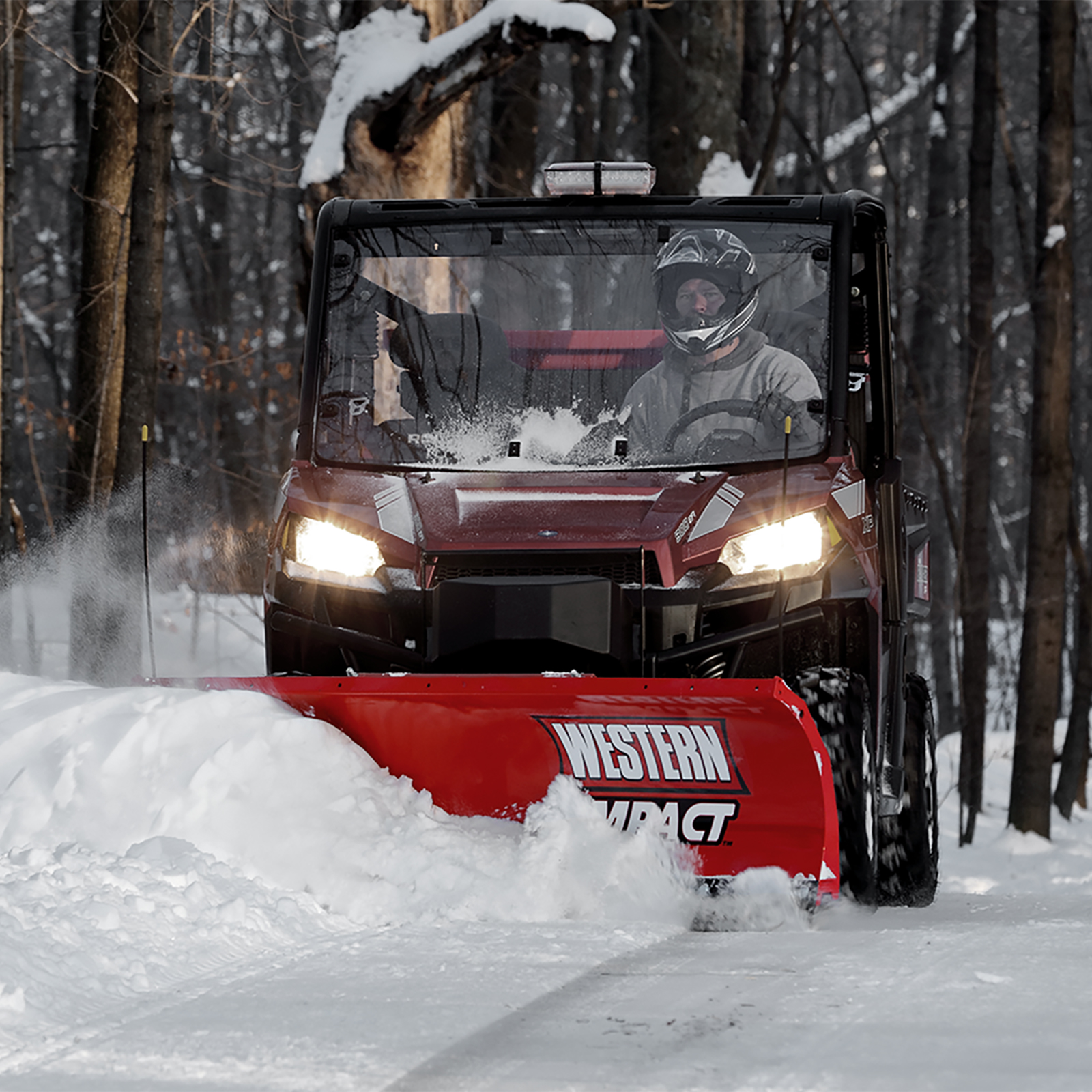

The WESTERN® IMPACT™ Heavy-Duty Straight Blade brings professional-grade clearing power to full-size UTVs and subcompact tractors, proving that massive performance doesn’t require a full-sized truck. These straight blades feature high-performance hydraulic systems and reinforced structural rigidity to withstand the toughest winter conditions. Designed specifically for the agility needed to clear narrow sidewalks and tight parking lot perimeters, the IMPACT series maximizes your fleet’s efficiency by transforming light equipment into a heavy-duty snow-moving force.
Unique Features
Blade Construction
- 23½” tall moldboard in 6′ width
- 14-gauge powder coated steel
- ¼” x 5″ high-carbon steel cutting edge comes standard to reduce wear and extend blade life
- Aggressive 70-degree attack angle ensures a clean scrape and back drag
- Pre-punched blade for easy accessory installation
Structural Reinforcement
- 4 vertical ribs eliminate blade twisting and reduce stress on plow assembly
- High-strength, low-weight, alloy steel components ensure the plow is strong enough for commercial operation yet lightweight
Scrape Lock
The WESTERN® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.
Universal Features
Accessories
LIGHT BAR KIT
Part NumbersPart Number
The IMPACT™ Heavy-Duty UTV light bar accessory features twin LED headlamps to help keep you on the right path. Like IMPACT UTV snow plows, the light bar accessory is sturdy and engineered to stand up to the rigors of commercial plowing operations.
POLY CUTTING EDGE
Part NumbersPart Number
Protect decorative concrete, driveways and other delicate surfaces with these poly cutting edges. Made of resilient compounds that allow for longer life, these poly edges adjust to road surface irregularities without gouging and quickly remove all types of snow.
CURB GUARDS
Part NumbersPart Number
Go right up to the edge with bolt-on curb guards. Protect the outer edge of your snow plow from wear when plowing along sidewalks and curbs. Made of cast metal, each curb guard effectively protects the outer edge of the plow.
Extended Harness
Part NumbersPart Number
An extended harness is required for UTVs that need a longer 130″ battery cable for the extended wheelbase and second-row seating. (The standard harness is 94″).
Specifications
| Specification | 84930 |
|---|---|
| Blade Width | 6'0" |
| Approx. Weight | 261 lb |
| Plowing Width (Full Angle) | Full Angle: 5'4" |
| Blade Height | 23.5" |
| Blade Thickness | 14 ga |
| Lift Cylinder | 1.5" x 6" |
| Angling Rams | 1" x 7" |
| Cutting Edge | ¼" x 5" |
| Specification | 84930 |
|---|---|
| Blade Type | Straight Blade |
| Moldboard Options | Steel |
| Vehicle Compatibility | Full Sized UTVs & Series 1 Tractors |
| Trip Springs | 2 |
| Ribs | 4 |
Does This Plow Fit My Vehicle?
Product Support & Resources
Buying Resources
Spec Sheet
DownloadServices & Support
Parts List
Installation Instructions
Owner's Manual
Mechanic’s Guide
Parts Finder
Quick Search
Find service documentation for your IMPACT™ Heavy-Duty (Straight Blade) model. Search by part number, literature number, or keyword.
