How do the wings operate on the WIDE-OUT™ wing plow?

Operators are in full control of the wing movement with the WIDE-OUT™ and WIDE-OUT™ XL snowplows. They can independently control each wing to effortlessly move around obstacles and efficiently tackle complex properties. Move into retracted straight, expanded straight, windrow, and scoop positions, all at the touch of a button.

What is the serial number break for the original WIDE-OUT™ and WIDE-OUT™ XL wing plows?

The early models of WIDE-OUT™ were Serial No. 180209 and lower. Current WIDE-OUTs (Gen 2) are Serial No.180210 and higher.

Does the WIDE-OUT™ have rubber or steel wing cutting edges?

The current WIDE-OUT™ and WIDE-OUT™ XL wing plow models have steel wing cutting edges. These steel wing cutting edges will fit legacy wideout models that used rubber cutting edges for the wings. The extensive use that the wing cutting edges experience are better suited for steel edges for most applications for extended longevity. [Installation Instructions]

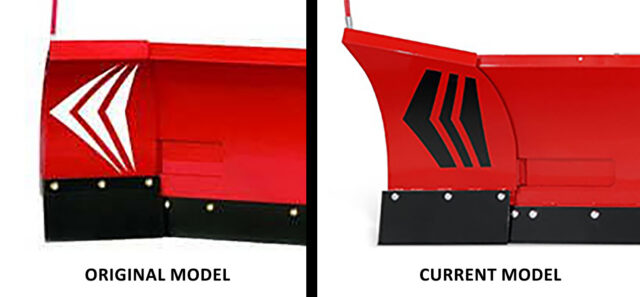

How can you visually tell the difference between the old and new WIDE-OUT™ wing plow models?

The early WIDE-OUT™ wing plow models have flat-top wings with a white chevron design on the wing and the welded moldboard is 8’-10’ in width. The current WIDE-OUT™ and WIDE-OUT™ XL wing plow models have flared wings with a black chevron design and a bolted-on moldboard. The newer models also come in both 8’-10’ and 8’6”-11’ widths.

WIDE-OUT™ &
WIDE-OUT™ XL
Adjustable Winged Snowplow

Quick Specs

Select a model:

8'-10' (#180210-higher), Powder-Coated Steel 8'6"-11', Powder-Coated Steel

8'-10' (#180210-higher) Blade Width
1,057 lbs Approx. Weight
Retracted: 7'2" Expanded: 9' Scoop: 7'11" Plowing Width (Full Angle)

Fits: Truck Class 2 - 6 & Tractors

Does this Plow fit my vehicle?

Verify compatibility and part number information

STAY IN CONTROL &
ADAPT TO CHANGING WEATHER

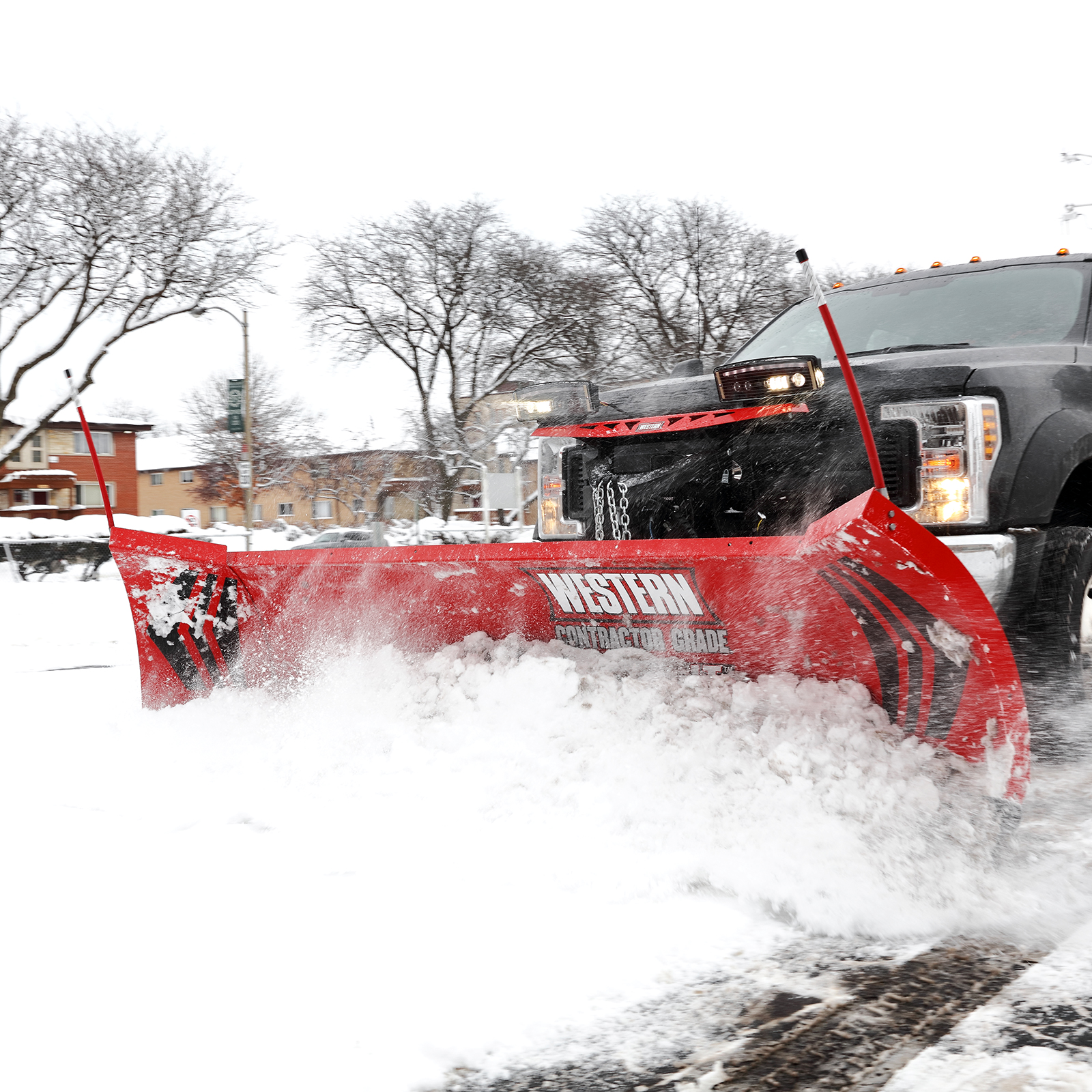

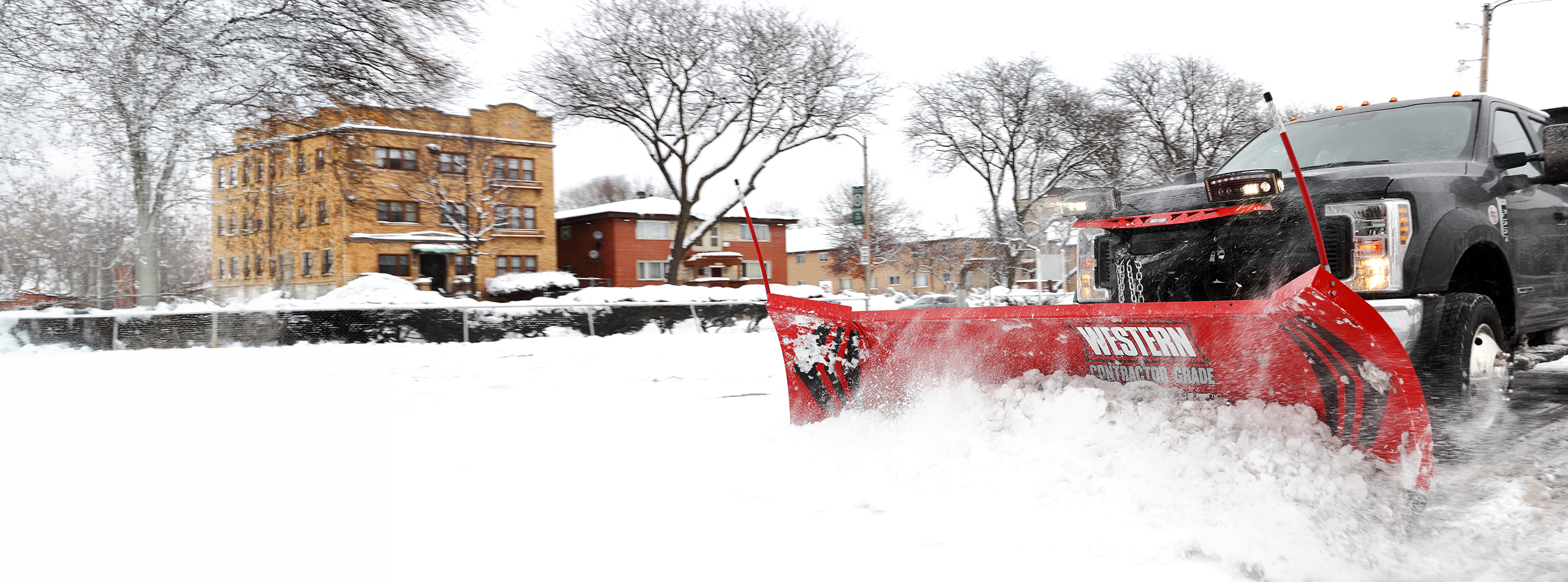

When you’re out in the elements, you need a plow you can trust to get the job done. The WESTERN^® WIDE-OUT™ and WIDE-OUT™ XL adjustable plows are built to dominate any storm. Their longer blades and flared wings let you push a massive amount of snow in fewer passes. Operators have complete control of each wings position to maximize the snow moved with each pass effortlessly move around any obstacles. Engineered for efficiency, it’s the tool you need to make quick work of the biggest jobs.

Compatible with Trucks & Tractors

Unique Features

What Sets WIDE-OUT™ Apart

Blade Construction

31″ tall moldboard in 8′-10′ and 8’6″-11′ widths
14-gauge powder coated steel
½″ x 6″ high-carbon steel cutting edge comes standard to reduce wear and extend blade life (moldboard and wings)
Aggressive 70-degree attack angle ensures a clean scrape and back drag
Pre-punched blade for easy accessory installation

Structural Reinforcement

6 vertical ribs (8 on the WIDE-OUT XL) eliminate blade twisting and reduce stress on plow assembly
High-strength steel base channel offers additional support to bottom of blade
Exclusive, Dual POWER BAR provides exceptional torsional strength and rigidity
1½″ diameter pivot bolt secures the plow in place for proper alignment

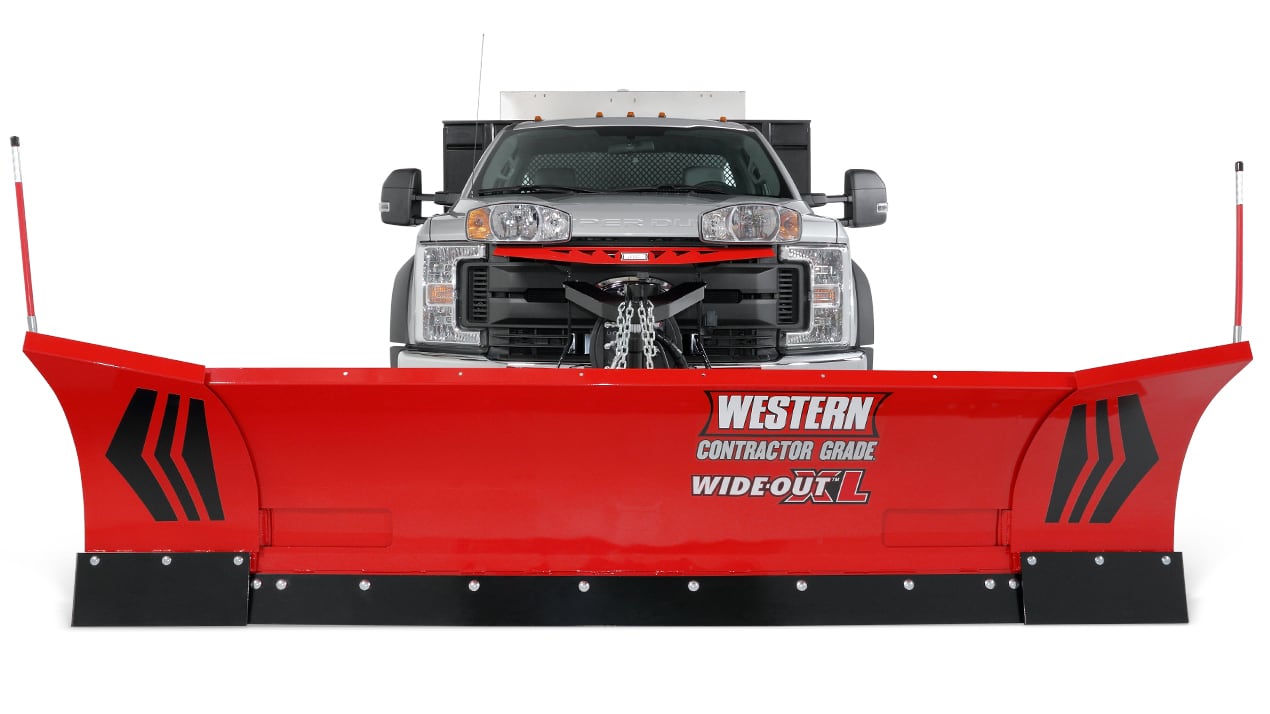

Expandable to 11'

Available in two sizes, the WIDE-OUT blade expands from 8′ wide to 10′ wide and the WIDE-OUT XL plow extends from 8’6″ to a full 11′, to move more snow in fewer passes.

Flared Wings for Efficiency

The WIDE-OUT plows, equipped with flared wings as tall as 36″ on the WIDE-OUT XL model, help move snow up to 30% faster.

Providing unmatched versatility and efficiency, operators can control each wing independently to move into Retracted Straight, Expanded Straight, Windrow and Scoop positions, all at the touch of a button.

See Details

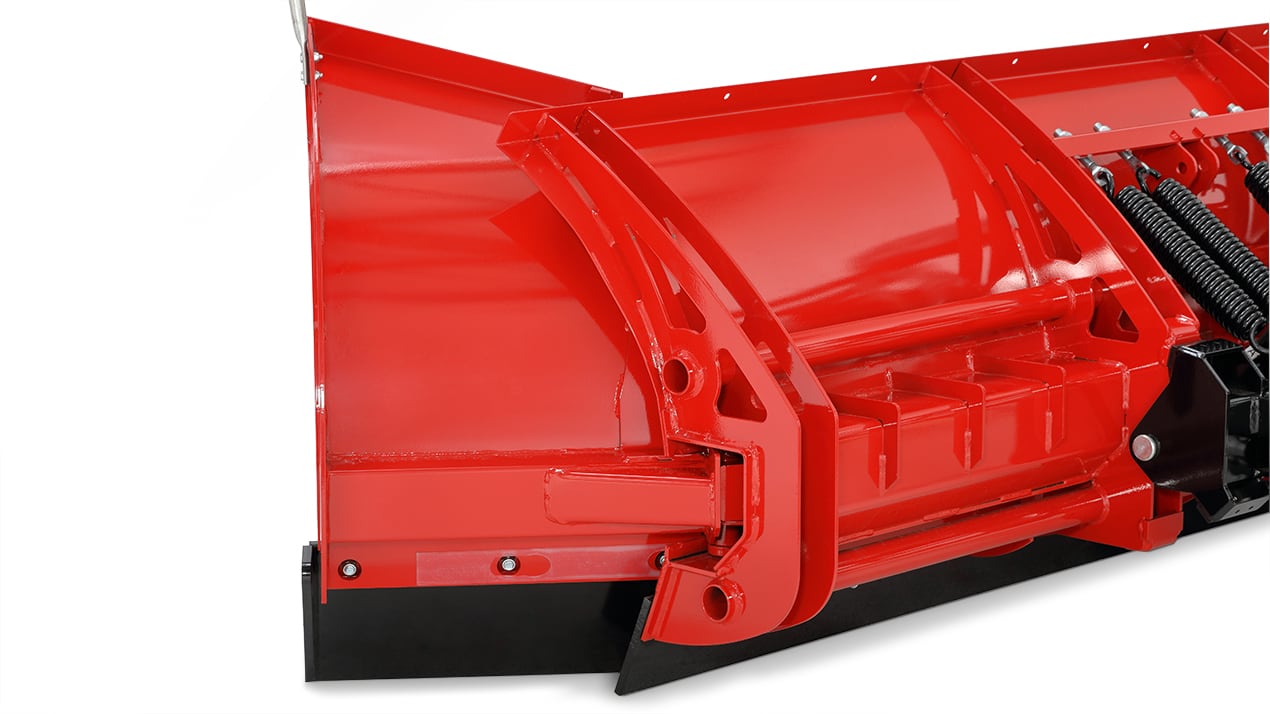

Heavy-Duty Slide Box

DUAL POWER BAR

The exclusive WESTERN® Dual POWER BAR is a structural reinforcement feature that runs horizontally along the back of the moldboard to tie the vertical ribs together. It provides exceptional torsional strength, rigidity, and structural integrity, preventing the blade from twisting, warping, or buckling under heavy loads and when striking hidden obstacles.

Universal Features

Every WESTERN snowplow includes

Standard Options

Headlights & Controls

Headlights

STANDARD OPTION

NIGHTHAWK™ Dual-Halogen Headlights

NIGHTHAWK™ dual-halogen plow headlights light up the road with brighter performance and greater reach than traditional halogen plow lights, keeping you safe and on the job. Halogen plow headlights are known to generate heat and minimize the buildup of snow and ice on the lens.

See Details

STANDARD OPTION

NIGHTHAWK™ LED Headlights

NIGHTHAWK™ LED headlights are designed with patented EdgeView™ Technology. The dedicated LED bulb directs light through the outer edge of each plow light to provide a full 180 degrees of light visibility from plow edge to plow edge, giving you the best all-around view of the plow’s operating environment.

See Details

Controls

STANDARD OPTION

Handheld Control

Included with Snowplow Purchase

The CabCommand hand-held control offers compact, ergonomic push-button operation. For efficient, precise and intuitive blade control while plowing, it features power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.

See Details

STANDARD OPTION

Joystick Control

Included with Snowplow Purchase

The joystick control provides a familiar, fluid interface for precise blade control. Features include power “on” and “float” LED indicators, night-time backlighting, and a quick-disconnect plug for easy removal.

See Details

Accessories

View All Accessories

BACK DRAG EDGE

Part Numbers

Part Number

#52278-1

For 8'-10' Model

#81985

For 8'6"-11' XL Model

Ensure a clean scrape every time, when you back drag. The WESTERN back drag edge is built to be as rugged and durable as every other component of your plow. Constructed of 0.25″ abrasion-resistant steel and angled to maximize back dragging performance. This easy to install back drag edge is a key tool in any snowfighter’s kit.

POLY WING CUTTING EDGE

Part Numbers

Part Number

#80261

For 8'-10' Model

#81988

For 8'6"-11' XL Model

Poly edges on each independently-controlled WIDE-OUT snow plow wing let operators better adjust to road surface irregularities without gouging and quickly remove all types of snow.

SHOE KIT

Part Numbers

Part Number

#44277-1

For Main Blade

Protect your plow and the road, while extending the life of your cutting edge with an adjustable shoe kit. The cast iron construction and shape increases the surface contact area and helps glide over gravel and dirt at the correct height. Extending cutting edge and base angle life when plowing on rocky or abrasive surfaces.

10" RUBBER DEFLECTOR

Part Numbers

Part Number

#52280-1

For 8'-10' Model

#81989

For 8'6"-11" XL Model

Control the snow and always see where you’re going with optional deflectors. Our 10″, 2-ply rubber snow deflectors include bolt-on steel plates to ensure proper positioning of the deflectors to keep your view clear and clean.

Specifications

Selecting a model updates product features and specs below.

Metric

Specification	85810-1	85850-1
Blade Width	8'-10' (#180210-higher)	8'6"-11'
Approx. Weight	1,057 lbs	1,120 lbs
Plowing Width (Full Angle)	Retracted: 7'2" Expanded: 9' Scoop: 7'11"	Retracted: 7'11" Expanded: 10'6" Scoop: 9'6"
Blade Size	Retracted: 8' Expanded: 10' Scoop: 8'10"	Retracted: 8'6" Expanded: 11' Scoop: 9'10"
Blade Height	At Center: 31" At End: 35"	At Center: 31" At End: 36"
Blade Thickness	14 ga	14 ga
Lift Cylinder	1¾" x 8"	1¾" x 8"

Specification	85810-1	85850-1
Moldboard Options	Powder-Coated Steel	Powder-Coated Steel
Blade Type	Adjustable Winged Blade	Adjustable Winged Blade
Vehicle Compatibility	Truck Class 2 - 5 & Tractors	Truck Class 2 - 6
Trip Springs	4	4
Ribs	6	8
Angling Rams	1½" x 10"	1½" x 10"
Cutting Edge	½" x 6" (Standard)	½" x 6" (Standard)
Mount Type	UltraMount^® 2	UltraMount 2
