ENFORCER™
V-Plow
Quick Specs
Select a model:
- 7'6" Blade Width
- 556 lbs Approx. Weight
- Full Angle: 6'7" Scoop: 6'5" Full V: 6'9" Plowing Width (Full Angle)
- 7'6" Blade Width
- 511 lbs Approx. Weight
- Full Angle: 6'7" Scoop: 6'5" Full V: 6'9" Plowing Width (Full Angle)
- Fits: Half-Ton Trucks & Tractors
Verify compatibility and part number information
SHOW THEM WHAT
A CLEAN PASS LOOKS LIKE

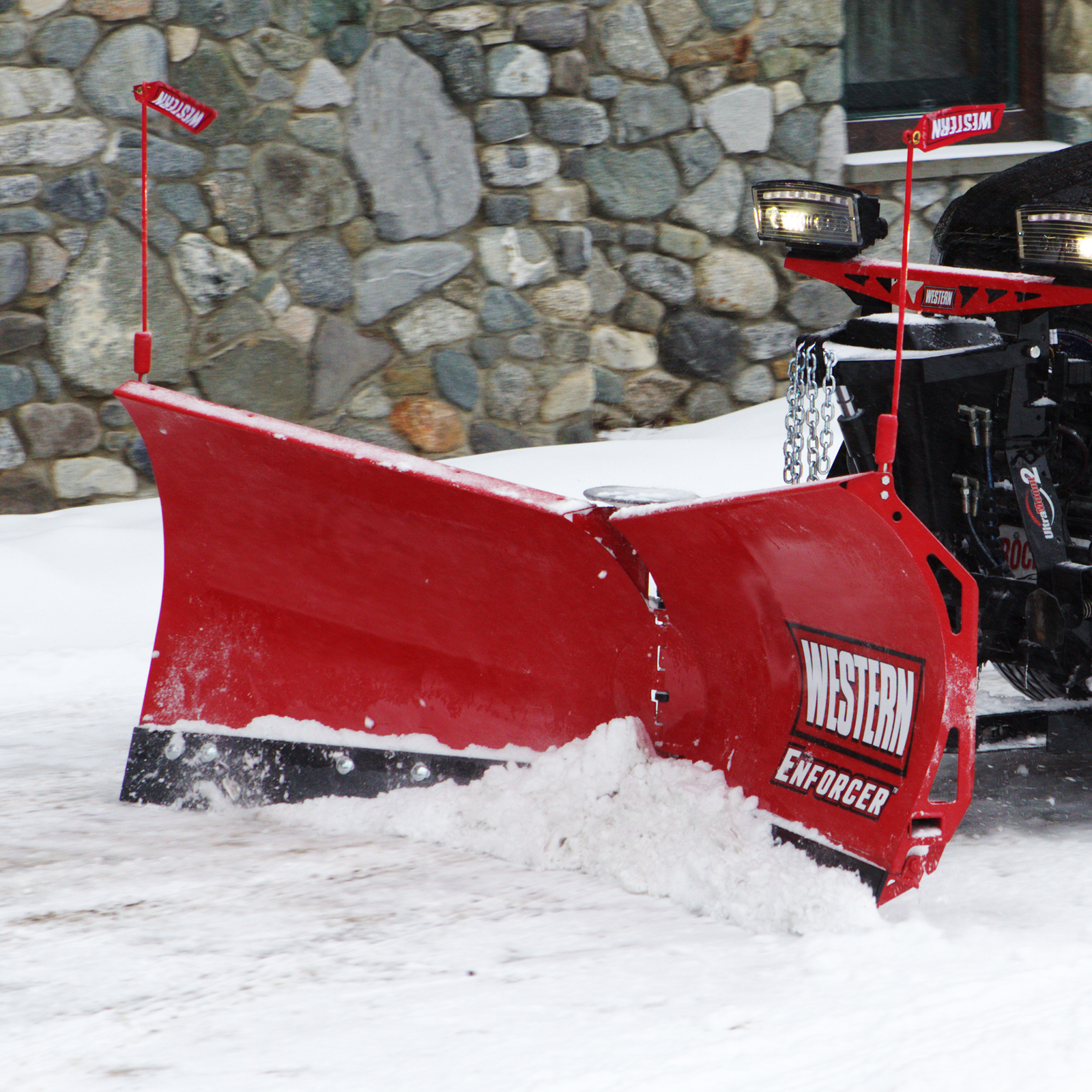

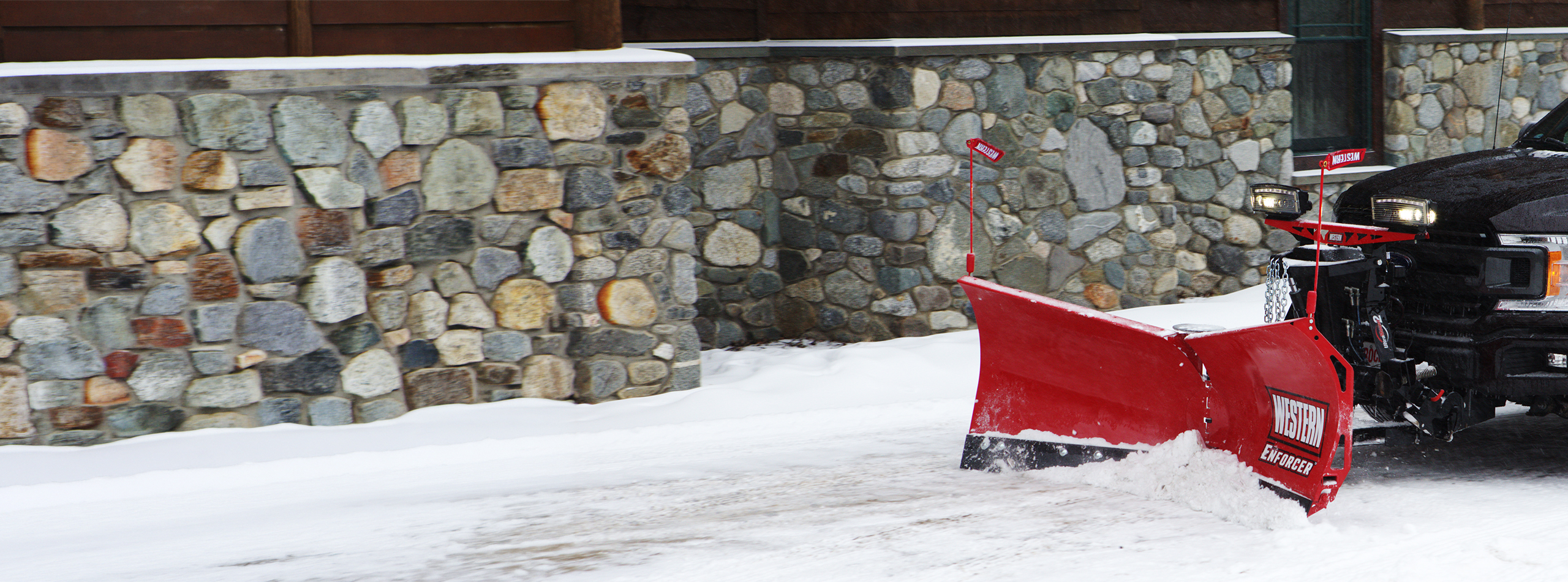

The WESTERN® ENFORCER™ v-plow is purpose-built to handle a wide range of half-ton truck applications, providing commercial level performance. Engineered for versatility, this plow lets you bust through drifts, back drag, or scoop snow to clear any property. Its high-strength, low-alloy steel construction makes it lighter without sacrificing strength found in traditional steel plows. It is the perfect match for half-ton trucks and tractors.
Unique Features
Plow Blade Construction
- 27″ tall (center) flared wing moldboard to 33″ (outer edge) in 7’6″ width
- 14-gauge, powder coated or stainless steel
- Constructed from high-strength, low-alloy steel for outstanding durability and an optimized weight that helps preserve payload capacity on half-ton trucks
- ⅜” x 6″ high-carbon steel cutting edge comes standard to reduce wear and extend blade life
- Aggressive 70-degree attack angle ensures a clean scrape and back drag
- Pre-punched blade for easy accessory installation

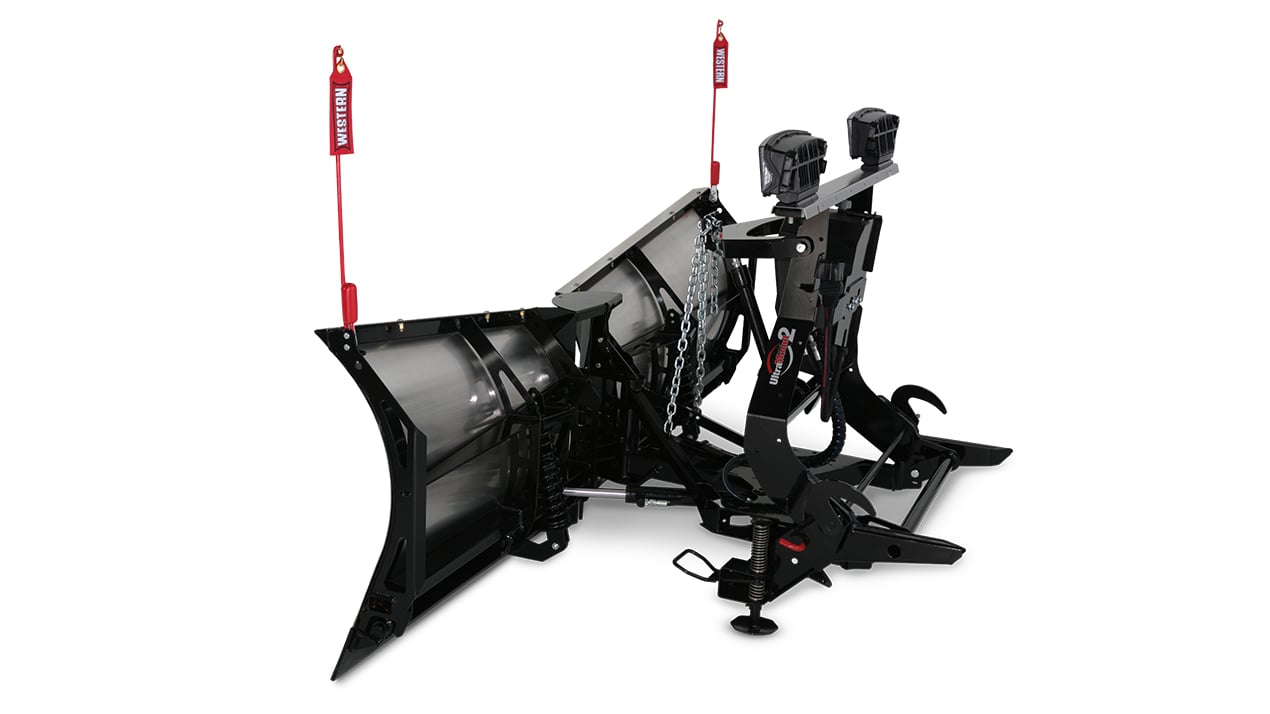

Structural Reinforcement
- 6 vertical ribs (plus two additional horizontal ribs on the stainless steel model) eliminate blade twisting and reduce stress on plow assembly
- ¾″ diameter, heat-treated steel center pin resides within a three-connection-point hinge for wings tight for improved performance
Universal Features
Accessories
1/2" STEEL CUTTING EDGE
Part NumbersPart Number
Made of abrasion-resistant steel, the 1/2″ cutting edge gives your v-plow extra wearability by increasing the surface area at the point of contact.
POLY CUTTING EDGE
Part NumbersPart Number
Sensitive surfaces found in many residential and commercial applications require a more forgiving approach. Reduce the risk of property damage with poly cutting edge kits.
BACK DRAG EDGE
Part NumbersPart Number
Ensure a clean scrape every time, when you back drag. The WESTERN back drag edge is built to be as rugged and durable as every other component of your plow. Constructed of 0.25″ abrasion-resistant steel and angled to maximize back dragging performance. This easy to install back drag edge is a key tool in any snowfighter’s kit.
*Curb Guards and Shoe Kits cannot be used simultaneously with the Back Drag Edge.
10" RUBBER DEFLECTOR
Part NumbersPart Number
Control the snow and always see where you’re going with an optional deflector. The 10″, 2-ply rubber snow deflector fits all ENFORCER™ v-plow blades. Bolt on steel plates ensure proper positioning of the deflectors to keep your view clear and clean.
Specifications
| Specification | 97545 | 97540 |
|---|---|---|
| Blade Width | 7'6" | 7'6" |
| Approx. Weight | 556 lbs | 511 lbs |
| Plowing Width (Full Angle) |
Full Angle: 6'7" Scoop: 6'5" Full V: 6'9" |
Full Angle: 6'7" Scoop: 6'5" Full V: 6'9" |
| Blade Height |
At Center: 27" At End: 33" |
At Center: 27" At End: 33" |
| Blade Thickness | 14 ga | 14 ga |
| Lift Cylinder | 1¼" x 8.625" | 1¼" x 8.625" |
| Angling Rams | 1½" x 12" | 1½" x 12" |
| Cutting Edge | ⅜" x 6" (Standard) | ⅜" x 6" (Standard) |
| Specification | 97545 | 97540 |
|---|---|---|
| Moldboard Options | Stainless Steel | Powder-Coated Steel |
| Blade Type | V-Plow | V-Plow |
| Vehicle Compatibility | Half-Ton Trucks & Series 3 Tractors | Half-Ton Trucks & Series 3 Tractors |
| Trip Springs | 2 | 2 |
| Ribs | 6 | 6 |
| Mount Type | UltraMount® 2 | UltraMount® 2 |
