IMPACT™
Mid-Duty
Straight Blade Snowplow
Quick Specs
Select a model:
- 5'6" Blade Width
- 4'11" Plowing Width (Full Angle)
- Hydraulic: 190 lb Winch: 175 lb Approx. Weight
- 6'0" Blade Width
- 5'4" Plowing Width (Full Angle)
- Hydraulic: 195 lb Winch: 180 lb Approx. Weight
- Fits: Mid Sized, Crossover & Sport UTVs
Verify compatibility and part number information
HEAVY-DUTY RESULTS
FOR MID-DUTY APPLICATIONS

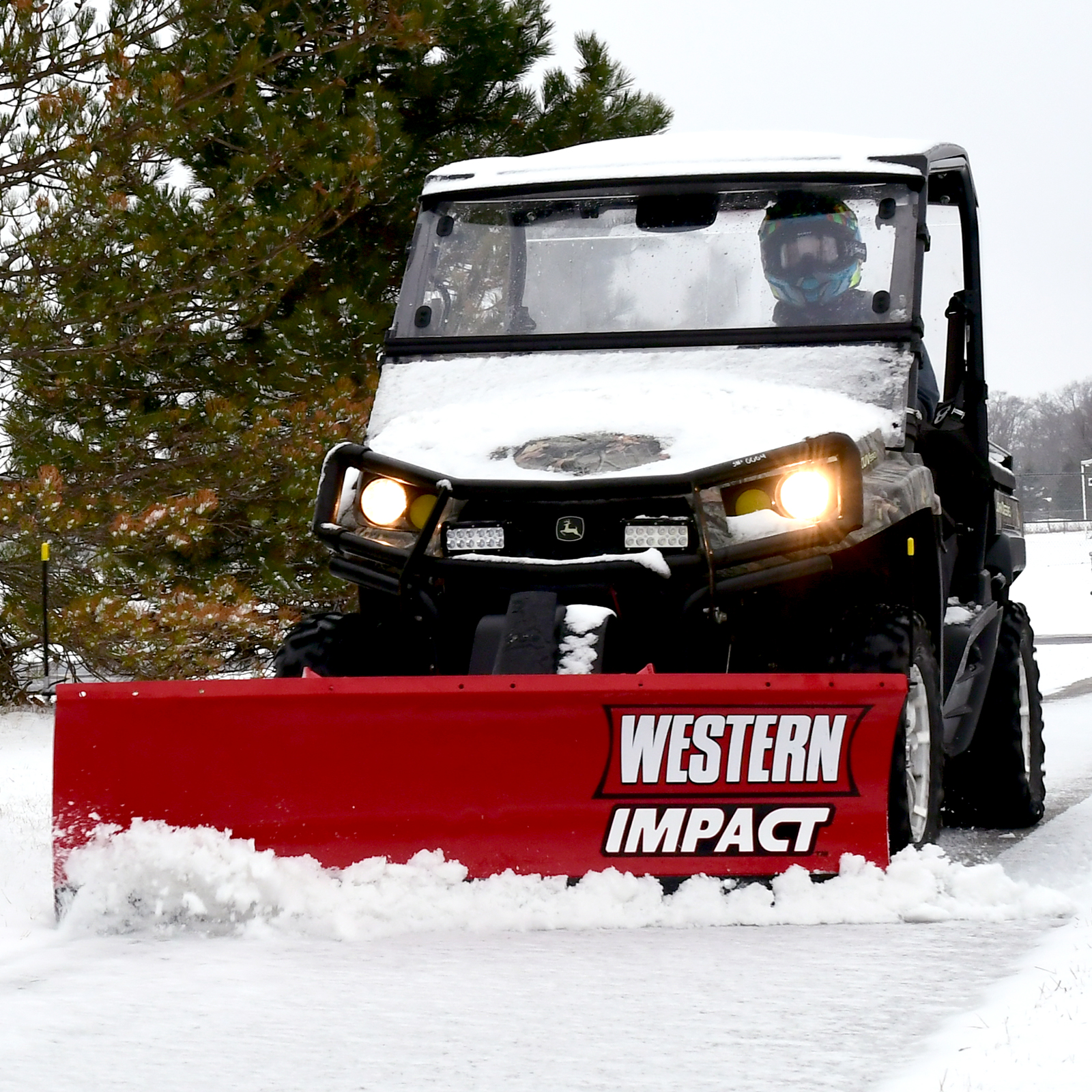

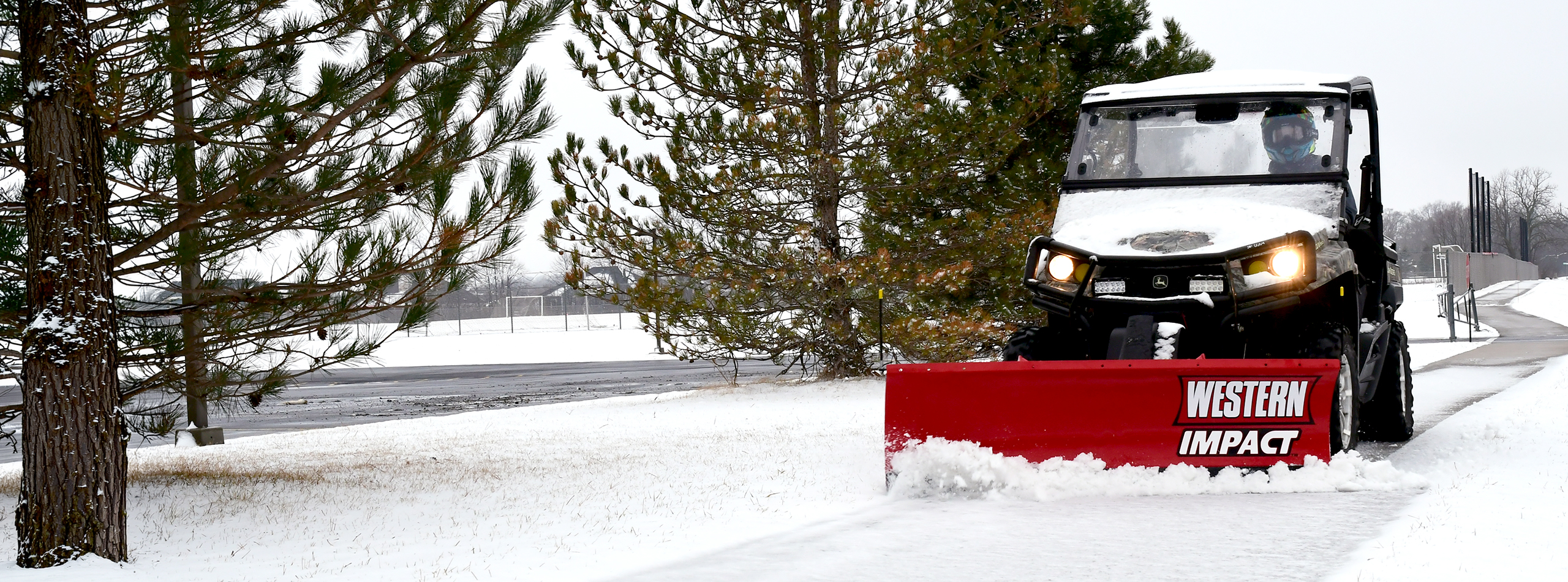

The WESTERN® IMPACT™ Mid-Duty straight blade is a snowplow built from the ground up for lighter, crossover UTVs. This plow is intentionally designed for homeowners and contractors who need to handle sidewalks or clear tight parking lot edges. This plow is perfectly sized for your mid-duty sport or recreational UTV without sacrificing performance. Choose between a full hydraulic system for a plow lift and angle or a winch option to match your needs and budget.
Compatible with UTVs
Unique Features
BLADE CONSTRUCTION
- 19.67″ tall moldboard in 5’6″ or 6’ widths
- 14-gauge powder coated steel
- ¼” x 5″ high-carbon steel cutting edge comes standard to reduce wear and extend blade life
- Aggressive 70-degree attack angle ensures a clean scrape and back drag
- Pre-punched blade for easy accessory installation

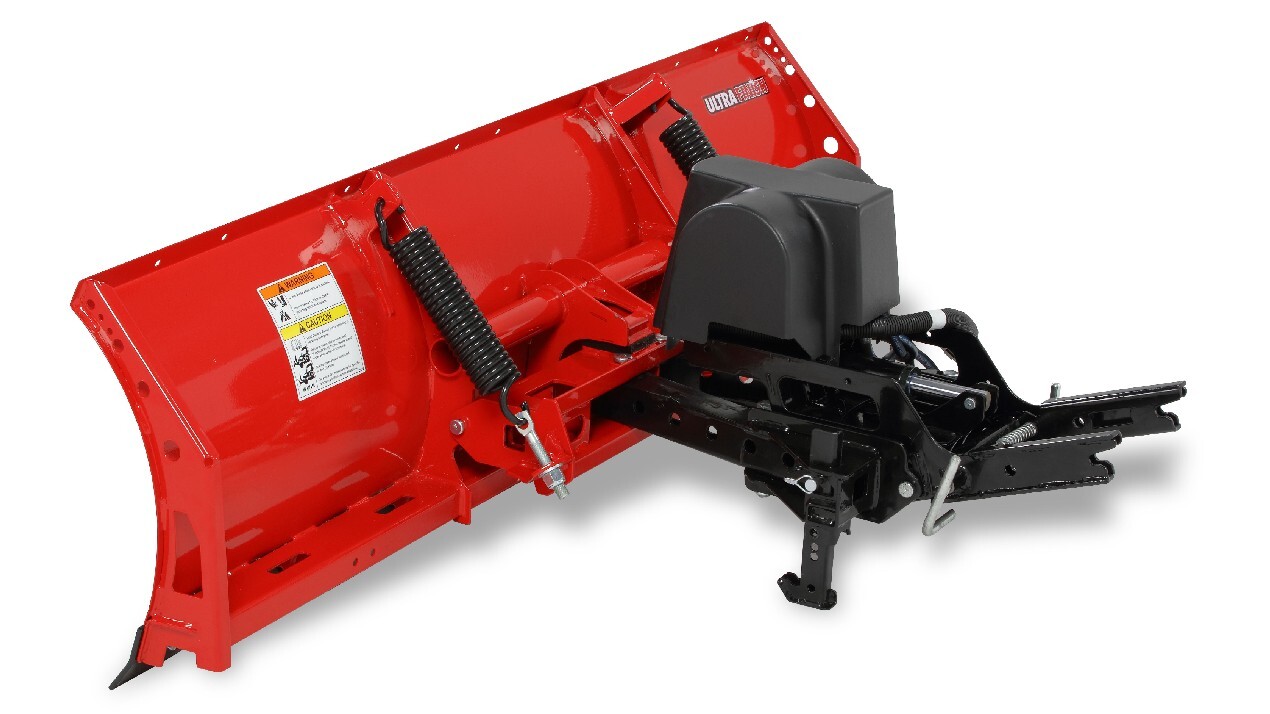

STRUCTURAL REINFORCEMENT
- 4 vertical ribs eliminate blade twisting and reduce stress on plow assembly
- High-strength, low alloy steel construction, strong enough for commercial operation yet lightweight

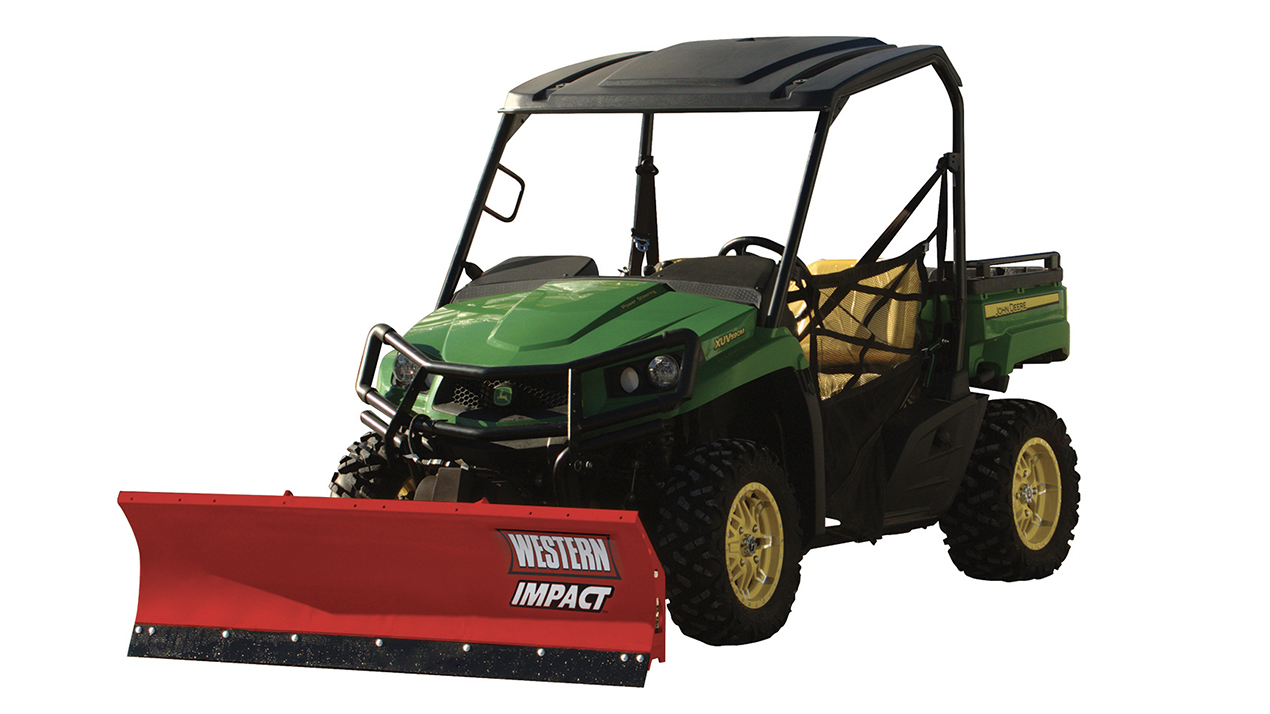

To ensure the blade stays aligned with the wheel track, the unique patented Sway-Frame™ design allows the blade to shift side-to-side. This keeps the blade in the optimal position to maximize cleanup with each pass, preventing the UTV wheels from packing down missed snow.

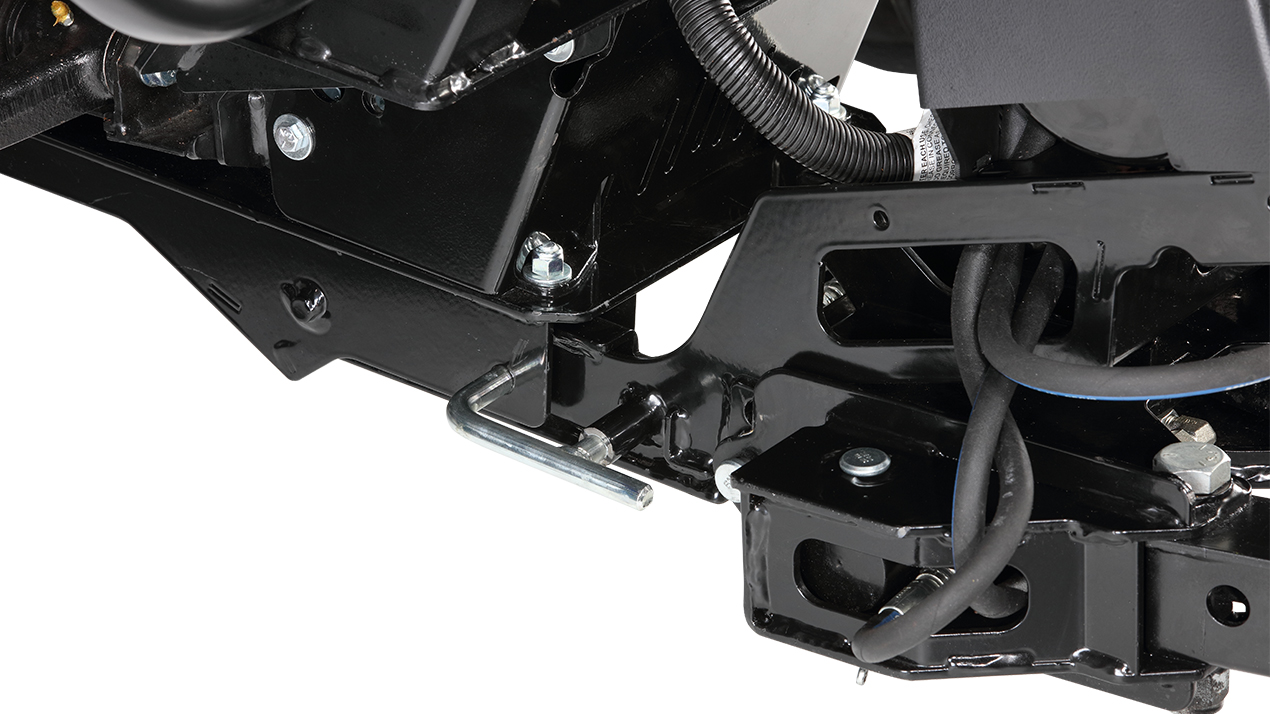

The mounting system is easy to use and install. To make operation easier, the mounting system optimizes ground clearance when installed. Tough construction will allow it to withstand harsh conditions year-over-year.
The removable receivers and low profile undercarriage provide exceptional ground clearance to maximize ramp angle, so your unit will be trail ready when the plow is not attached.
*Not applicable to some mounts
The winch lift version comes with many of the features that the hydraulic lift version offers, including the unique Sway-Frame™ design and with two blade widths: 66 and 72 inches. The ultra-light winch system comes with a unique bail design to reduce side stress on the winch assembly equipped on the vehicle and provides a more vertical lift.
Angling the plow is as easy as unpinning an assembly, manually moving the blade to your desired point, and pinning it back in just a few seconds. The mounting system is easy to install and use, as it is identical to the powered version. Its design optimizes ground clearance and is built tough to withstand harsh winter environments year after year.
*Available for winch lift models only.
Universal Features
Trip Protection
Standard Options
Accessories
HIGH-WEAR CUTTING EDGE
Part NumbersPart Number
Increase wear resistance and restore your worn base angle to the proper geometry. This 3/8″ cutting edge fits the same hole pattern as the 1/4″ cutting edge that comes standard on your blade from the factory. Made of abrasion-resistant, high-carbon steel, the 3/8″ cutting edge gives your UTV plow extra wearability by increasing the surface area at the point of contact.
RUBBER DEFLECTORS
Part NumbersPart Number
Control the snow and always see where you’re going with optional deflectors. The 2-ply rubber snow deflector custom fits the IMPACT™ UTV V-plow blades. Bolt on steel plates ensure proper positioning of the deflectors to keep your view clear and clean.
POLY CUTTING EDGE
Part NumbersPart Number
Protect decorative concrete, driveways and other delicate surfaces with these poly cutting edges. Made of resilient compounds that allow for longer life, these poly edges adjust to road surface irregularities without gouging and quickly remove all types of snow.
SHOE KIT
Part NumbersPart Number
Protect your plow and the road, while extending the life of your cutting edge with an adjustable shoe kit. The cast iron construction and shape increases the surface contact area and helps glide over gravel and dirt at the correct height. Extending cutting edge and base angle life when plowing on rocky or abrasive surfaces.
Specifications
Selecting a model updates product features and specs below.
| Specification | 74365 | 74872 |
|---|---|---|
| Blade Width | 5'6" | 6'0" |
| Approx. Weight |
Hydraulic: 190 lb Winch: 175 lb |
Hydraulic: 195 lb Winch: 180 lb |
| Plowing Width (Full Angle) | 4'11" | 5'4" |
| Blade Height | 19.67" | 19.67" |
| Blade Thickness | 16 ga | 16 ga |
| Lift Cylinder (Single Acting) |
Hydraulic: 1.5" x 3" (one) Winch: N/A |
Hydraulic: 1.5" x 3" (one) Winch: N/A |
| Cutting Edge | ¼" x 4" | ¼" x 4" |
| Specification | 74365 | 74872 |
|---|---|---|
| Moldboard Options | High-Strength Steel | High-Strength Steel |
| Blade Type | Straight Blade | Straight Blade |
| Vehicle Compatibility | Mid Sized, Crossover & Sport UTVs | Mid Sized, Crossover & Sport UTVs |
| Trip Springs | 2 | 2 |
| Ribs | 4 | 4 |
| Angling Rams (Double Acting) |
Hydraulic: 1.5" x 4" Winch: N/A |
Hydraulic: 1.5" x 4" Winch: N/A |
| Mount Type | Mid-Duty UTV Mounting System | Mid-Duty UTV Mounting System |
