How do you adjust the width of the IMPACT™ heavy-duty v-plow blade?

Pull the pin and adjust to the next setting to use the alternate plow setting. The plowing width is 5′6″ when fully angled or in V-mode, and 5′1″ in scoop mode. The different plow configurations let you handle different snow consistencies and depths with ease, all with one plow.

Is the IMPACT™ Heavy-Duty v-plow on a Mini Truck street legal to drive between properties?

It depends entirely on your state’s specific vehicle registration laws. While these trucks are efficient for clearing tight spaces, many states classify them as “Off-Road Utility Vehicles,” which may restrict or prohibit them from traveling on public roads between job sites. Contact your local municipality to determine exact regulations.

Does my IMPACT™ Heavy-Duty v-plows require different wiring for a John Deere XUV 845/875 versus a XUV 835/865?

Yes, while the plow blade and primary mounting components may be shared, the wiring and specific attachment hardware vary between these vehicles. It is critical that your dealer is fully informed of your exact vehicle model to ensure the correct components are ordered. Specifically, the John Deere-compatible IMPACT™ kits utilize a unique lift frame and proprietary wiring designed to integrate the plow’s signals directly with the John Deere’s vehicle wiring harness. To ensure seamless installation, we highly recommend using Quick Match or consulting an authorized dealer to confirm the correct components.

How long is the standard harness for an IMPACT™ heavy-duty v-plow?

The standard harness is 94” long. An extended harness (#70570) is available for UTVs that need a longer 130″ battery cable for the extended wheelbase or second-row seating—such as four-passenger/crew models—where the battery is located further from the front mounting point.

IMPACT™
Heavy-Duty
V-Plow

Quick Specs

6'0" Blade Width
355 lb Approx. Weight
Full Angle: 5'0" Scoop: 4'7" Full V: 5'0" Plowing Width (Full Angle)

Moldboard: Powder-Coated Steel
Fits: Full Sized UTVs & Series 1 Tractors

Does this Plow fit my vehicle?

Verify compatibility and part number information

WORK HARD,
PLAY HARDER

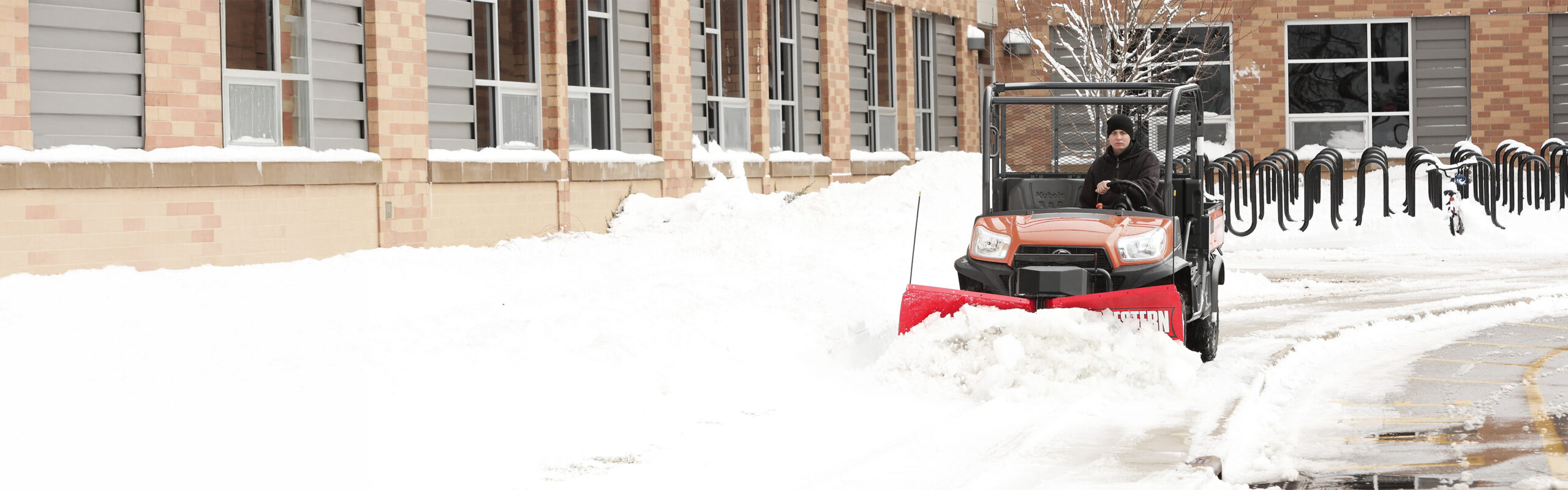

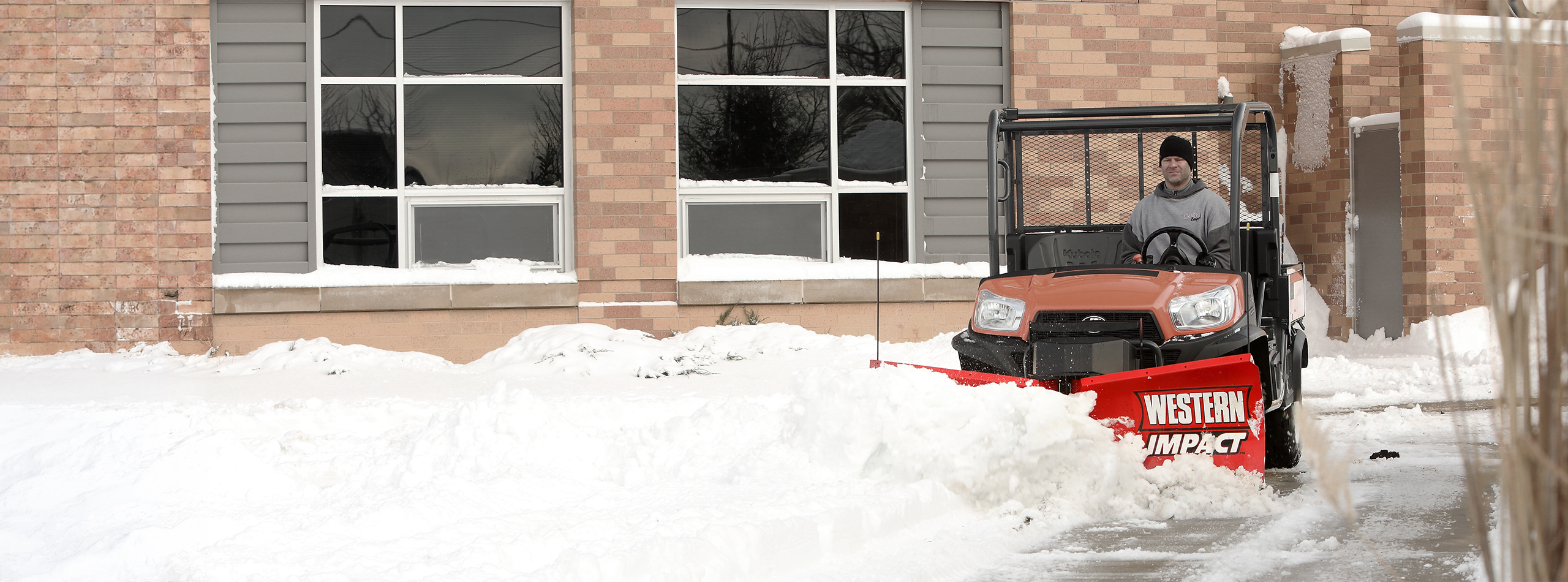

Don’t let its size fool you. The WESTERN^® IMPACT™ Heavy-Duty snowplows deliver big-plow performance for full-size UTVs and subcompact tractors so each storm feels like a snow day. By tapping into our decades of expertise in designing and manufacturing truck plows, the IMPACT Heavy-Duty v-plow models are purpose-built to maximize the performance of your UTV or subcompact tractor fleet. These plows are built to effortlessly tackle sidewalks and parking lot perimeters with full-performance hydraulic systems and robust structural rigidity.

Compatible with UTVs & Tractors
Straight Blade Models Also Available

Unique Features

What Sets IMPACT HD (V-Plow) Apart

Blade Construction

25¼” tall (center) to 29¼” tall (outer edge) flared wing moldboard in 6′ width
14-gauge powder coated steel
¼” x 5″ high-carbon steel cutting edge comes standard to reduce wear and extend blade life
Aggressive 70-degree attack angle ensures a clean scrape and back drag
Pre-punched blade for easy accessory installation

Structural Reinforcement

6 vertical ribs eliminate blade twisting and reduce stress on plow assembly
High-strength, low-weight, alloy steel components provide a favorable strength-to-weight ratio, keeping stress off of the UTV frame.
3/4″ diameter, steel center pin resides within a three-connection-point hinge, keeping wings tight for improved performance

Scrape Lock

The WESTERN® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.

See Details

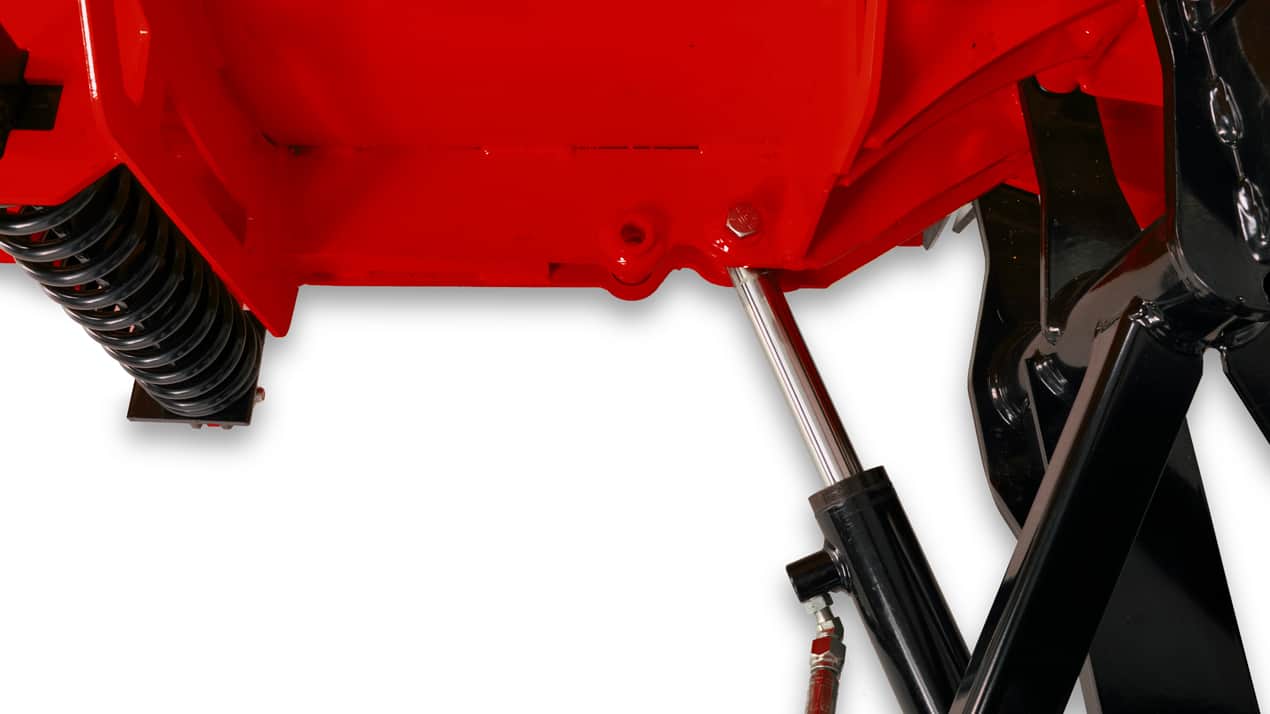

Adjustable Width

Adjustable Width

When fully angled or in V mode, the IMPACT^™ UTV v-plow plowing path is 5′ wide, and 4′ 7″ in scoop. For UTVs with a wider wheel base, a width-adjustment setting is available to make your plowing path wider in these positions. Using the alternate setting, the plowing width is 5′ 6″ when fully angled or in V, and 5′ 1″ in scoop.

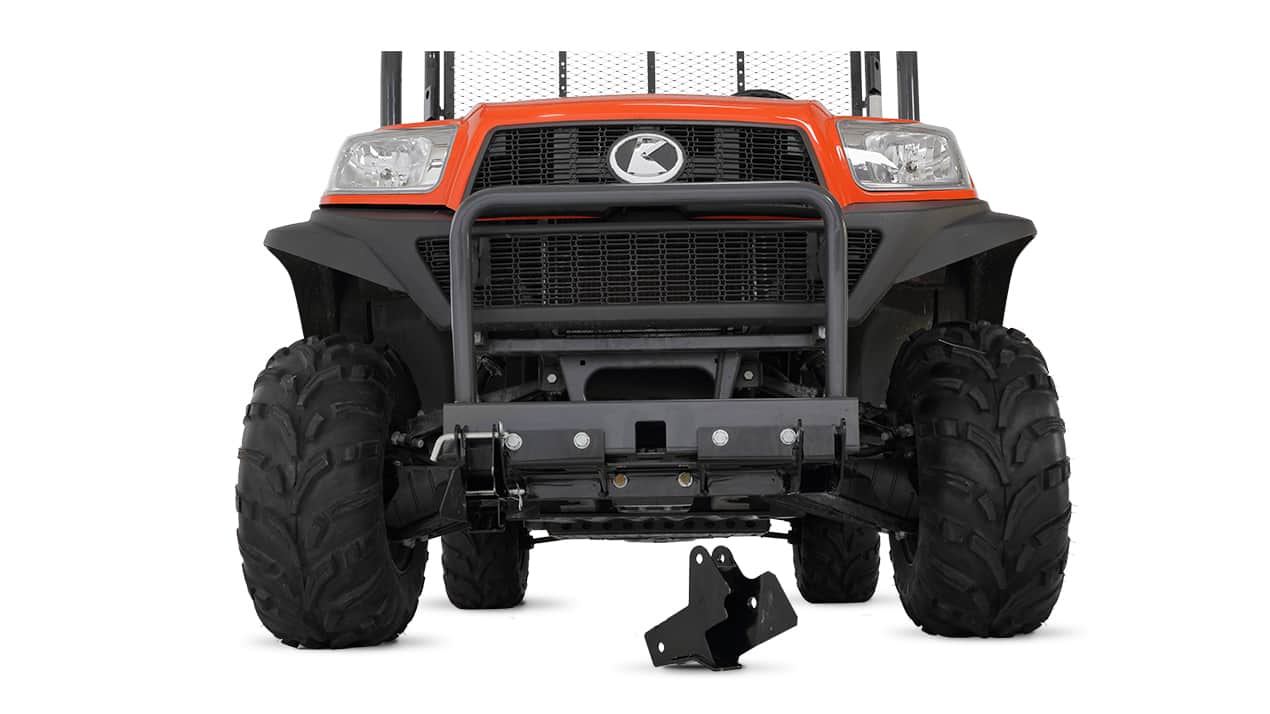

Ground Clearance

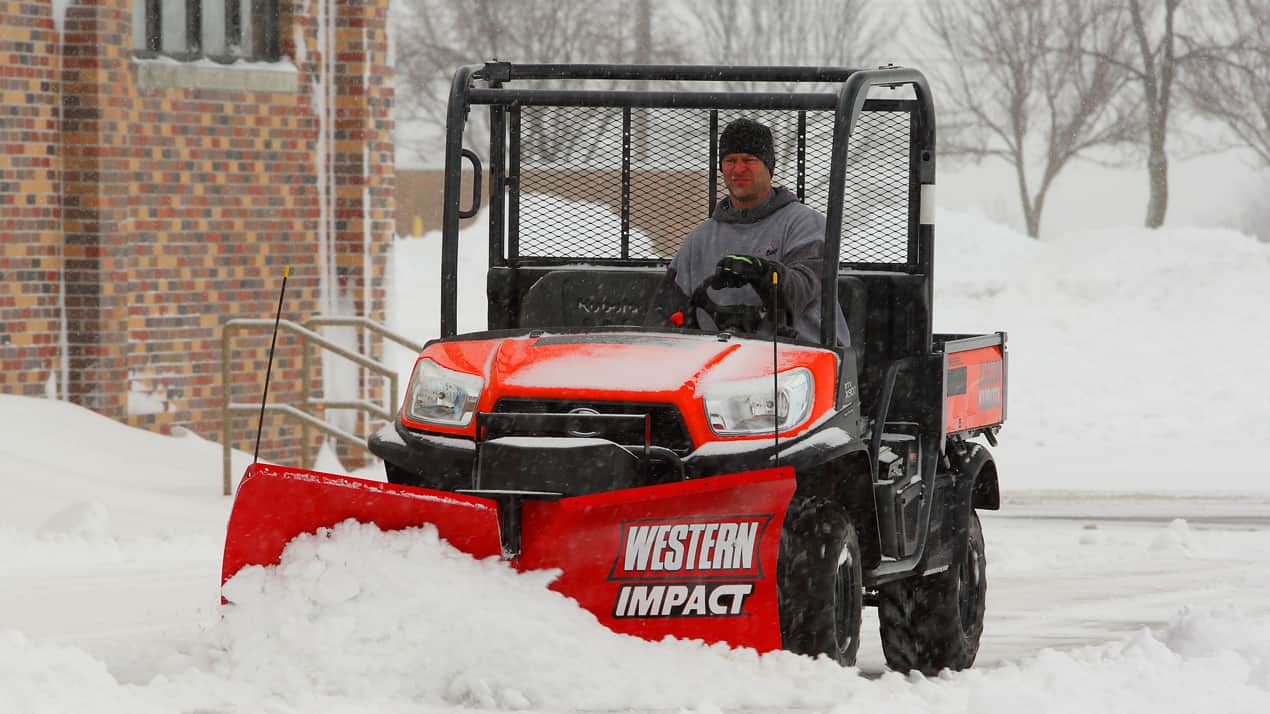

Double-acting Cylinders

A standard feature on the IMPACT^™ UTV v-plow, UltraLock double-acting cylinders allow the operator to use the v-plow in straight blade mode by locking the wings together instead of having to toggle each wing independently.

The double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

Steel Center Gap Cover

Universal Features

Every WESTERN snowplow includes

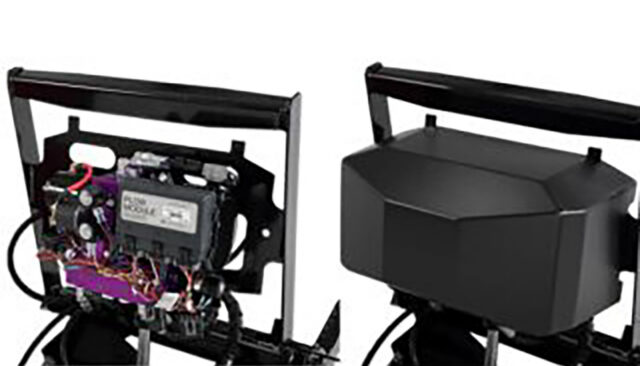

Hydraulics

We manufacture our own hydraulic components to ensure the highest standards of quality and reliability. Fully enclosed components are protected from the elements. Hydraulic Scrape Lock holds the blade down for more efficient scraping and clean back dragging.

See Details

Trip Protection

Each blade features independent trip-edge design with heavy-duty coil springs for protection when encountering bumps and obstacles. Whether in V, scoop or straight blade configuration, the trip-edge helps protect the plow, the equipment, and the operator. Since only the edge trips, snow remains in front of the blade, so you can keep going without spilling…

ULTRAFINISH™ Powder-Coat

The ULTRAFINISH™ baked on powder coat with epoxy primer protects against wear and rust. An eight-wheel shot blaster pre-treatment and multi-stage pre-wash prepares the plow surface for optimum coating adhesion.

See Details

SECURITY GUARD™ (Anti-Theft)

The exclusive SECURITY GUARD™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow hydraulic functions when it is detached from your truck, rendering your plow inoperable to unauthorized users.

See Details

Standard Options

Controls

STANDARD OPTION

Handheld Control

Included with Snowplow Purchase

The CabCommand hand-held control offers compact, ergonomic push-button operation. For efficient, precise and intuitive blade control while plowing, it features power “on” and “float” LED lights, backlighting for night operation, and plug-in connector for easy removal.

See Details

STANDARD OPTION

Joystick Control

Included with Snowplow Purchase

The joystick control provides a familiar, fluid interface for precise blade control. Features include power “on” and “float” LED indicators, night-time backlighting, and a quick-disconnect plug for easy removal.

See Details

Accessories

View All Accessories

WING EXTENSION KIT

Part Numbers

Part Number

#52657

For V-Plows

Get more jobs done faster with plow wings. Available for the IMPACT™ UTV v-plow, these wings add more carrying capacity. Made of 14-gauge steel with high strength steel ribs, the wings are a perfect compliment to an IMPACT UTV v-plow blade. No installation required—the innovative design means quick and easy attach/detach.

Extended Harness

Part Numbers

Part Number

#70570

For V-Plows & Straight Blades

An extended harness is required for UTVs that need a longer 130″ battery cable for the extended wheelbase and second-row seating. (The standard harness is 94″).

LIGHT BAR KIT

Part Numbers

Part Number

#83980

For V-Plow & Straight Blade

The IMPACT^™ Heavy-Duty UTV light bar accessory features twin LED headlamps to help keep you on the right path. Like IMPACT UTV snow plows, the light bar accessory is sturdy and engineered to stand up to the rigors of commercial plowing operations.

BLADE ANGLE STOP

Part Numbers

Part Number

#83616

For V-Plow

Protect your plow by ensuring heavy snow loads are distributed evenly with the blade angle stop. Made of reinforced, 0.188″ high-strength steel that reduces stress on the plow’s back iron and hydraulic rams for improved service life and performance. The easy-to-install kit comes with all of the required hardware.

Specifications

Metric

Specification	74360
Blade Width	6'0"
Approx. Weight	355 lb
Plowing Width (Full Angle)	Full Angle: 5'0" Scoop: 4'7" Full V: 5'0"
Blade Height	At Center: 25.75" At End: 29.25"
Blade Thickness	14 ga
Lift Cylinder	1.5" x 6"
Angling Rams	1" x 8.75"
Cutting Edge	¼" x 5"

Specification	74360
Blade Type	V-Plow
Moldboard Options	Steel
Vehicle Compatibility	Full Sized UTVs & Series 1 Tractors
Trip Springs	2
Ribs	6
