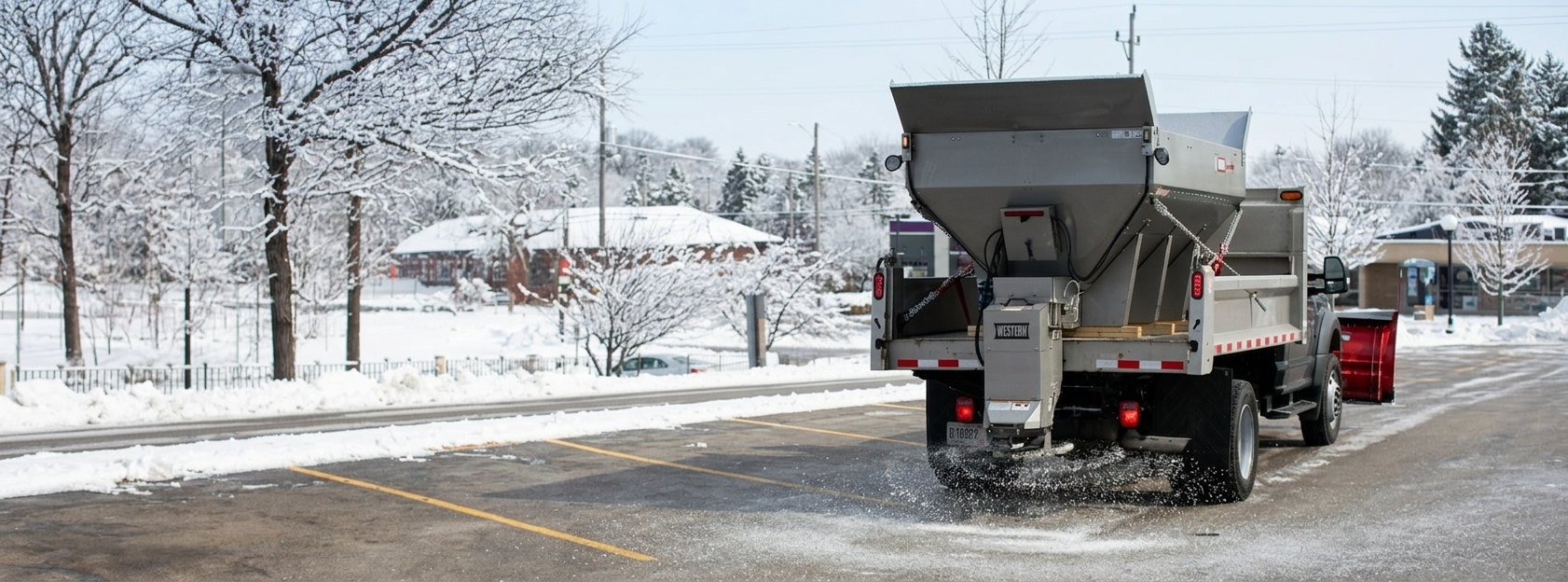

MARAUDER™ Stainless Steel Hopper Spreader

  • Capacity: 1.5 - 5.0 cu yd
  • Materials: Salt & Sand
  • Spread Pattern: Broadcast

RIGHT TOOL FOR THE JOB

It’s your job to make sure the world keeps moving … and to do that, you need ice control equipment you can rely on. The all-new MARAUDER stainless steel hopper lineup is engineered to get the job done right. Choose the best material delivery system for your operation based on the de-icer you commonly use … either the all-new HELIXX™ shaftless auger for precise rock salt application or the pintle chain conveyor that’s perfect for thick, heavy de-icing materials. Whatever choice you make, you’ll get the delivery performance you demand.

Unique Features

Standard Spreader Features

Product Specs

Metric
ModelsS150C* / S150A*S220C* / S220A*S300C* / S300A*S400C* / S400A*S500C* / S500A*
Vehicle Compatibility3/4- & 1-Ton Pickup Trucks3/4- & 1-Ton Pickup TrucksDump Body or Flatbed Trucks (Over 15,000 lb GVWR)Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)
Vehicle Compatibility3/4- & 1-Ton Pickup Trucks3/4- & 1-Ton Pickup TrucksDump Body or Flatbed Trucks (Over 15,000 lb GVWR)Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)Dump Body or Flatbed Trucks (Over 15,000 lb GVWR)
Material CompatibilityChain: Sand, Salt & 50/50 Mix
Auger: Bulk Rock Salt
Chain: Sand, Salt & 50/50 Mix
Auger: Bulk Rock Salt
Chain: Sand, Salt & 50/50 Mix
Auger: Bulk Rock Salt
Chain: Sand, Salt & 50/50 Mix
Auger: Bulk Rock Salt
Chain: Sand, Salt & 50/50 Mix
Auger: Bulk Rock Salt
Vehicle CompatibilityChain: Sand, Salt & 50/50 Mix
Auger: Bulk Rock Salt
Chain: Sand, Salt & 50/50 Mix
Auger: Bulk Rock Salt
Chain: Sand, Salt & 50/50 Mix
Auger: Bulk Rock Salt
Chain: Sand, Salt & 50/50 Mix
Auger: Bulk Rock Salt
Chain: Sand, Salt & 50/50 Mix
Auger: Bulk Rock Salt
Capacity (Volume)1.5 cu yd2.2 cu yd3.0 cu yd4.0 cu yd5.0 cu yd
Capacity (Volume)1.15 cu m1.68 cu m2.29 cu m3.06 cu m3.82 cu m
Capacity (Weight)3,240 lb4,752 lb6,480 lb8,640 lb10,800 lb
Capacity (Weight)1,470 kg2,155 kg2,939 kg3,919 kg4,899 kg
Spreading WidthAuger (Salt): Up to 36'
Chain (Salt): Up to 36'
Chain (Sand): Up to 24'
Auger (Salt): Up to 36'
Chain (Salt): Up to 36'
Chain (Sand): Up to 24'
Auger (Salt): Up to 36'
Chain (Salt): Up to 36'
Chain (Sand): Up to 24'
Auger (Salt): Up to 36'
Chain (Salt): Up to 36'
Chain (Sand): Up to 24'
Auger (Salt): Up to 36'
Chain (Salt): Up to 36'
Chain (Sand): Up to 24'
Spreading WidthAuger (Salt): Up to 10.97 m
Chain (Salt): Up to 10.97 m
Chain (Sand): 7.32 m
Auger (Salt): Up to 10.97 m
Chain (Salt): Up to 10.97 m
Chain (Sand): 7.32 m
Auger (Salt): Up to 10.97 m
Chain (Salt): Up to 10.97 m
Chain (Sand): 7.32 m
Auger (Salt): Up to 10.97 m
Chain (Salt): Up to 10.97 m
Chain (Sand): 7.32 m
Auger (Salt): Up to 10.97 m
Chain (Salt): Up to 10.97 m
Chain (Sand): 7.32 m
Approx. Weight**
(Empty)
Chain: 530 lb
Auger: 500 lb
Chain: 580 lb
Auger: 550 lb
Chain: 750 lb
Auger: 700 lb
Chain: 820 lb
Auger: 770 lb
Chain: 910 lb
Auger: 850 lb
Approx. Weight**
(Empty)
Chain: 240 kg
Auger: 227 kg
Chain: 263 kg
Auger: 249 kg
Chain: 340 kg
Auger: 318 kg
Chain: 372 kg
Auger: 349 kg
Chain: 413 kg
Auger: 386 kg
Hopper Length (A)84.50"96.50"96.50"108.50"108.50"
Hopper Length (A) 214.63 cm245.11 cm245.11 cm275.59 cm275.59 cm
Length from Cab Side to Second Leg (B)Chain: 65.50"
Auger: 62.50"
Chain: 70.50"
Auger: 67.50"
Chain: 82.50"
Auger: 79.50"
Chain: 82.50"
Auger: 79.50"
Chain: 82.50"
Auger: 79.50"
Length from Cab Side to Second Leg (B)Chain: 166.37 cm
Auger: 158.75 cm
Chain: 179.07 cm
Auger: 171.45 cm
Chain: 209.55 cm
Auger: 201.93 cm
Chain: 209.55 cm
Auger: 201.93 cm
Chain: 209.55 cm
Auger: 201.93 cm
Overall Hopper Length (C)Chain: 107"
Auger: 111.50"
Chain: 119.25"
Auger: 123"
Chain: 120.50"
Auger: 123"
Chain: 128.75"
Auger: 129"
Chain: 126.25"
Auger: 129"
Overall Hopper Length (C)Chain: 271.78 cm
Auger: 283.21 cm
Chain: 302.90 cm
Auger: 312.42 cm
Chain: 306.07 cm
Auger: 312.42 cm
Chain: 327.03 cm
Auger: 327.66 cm
Chain: 320.68 cm
Auger: 327.66 cm

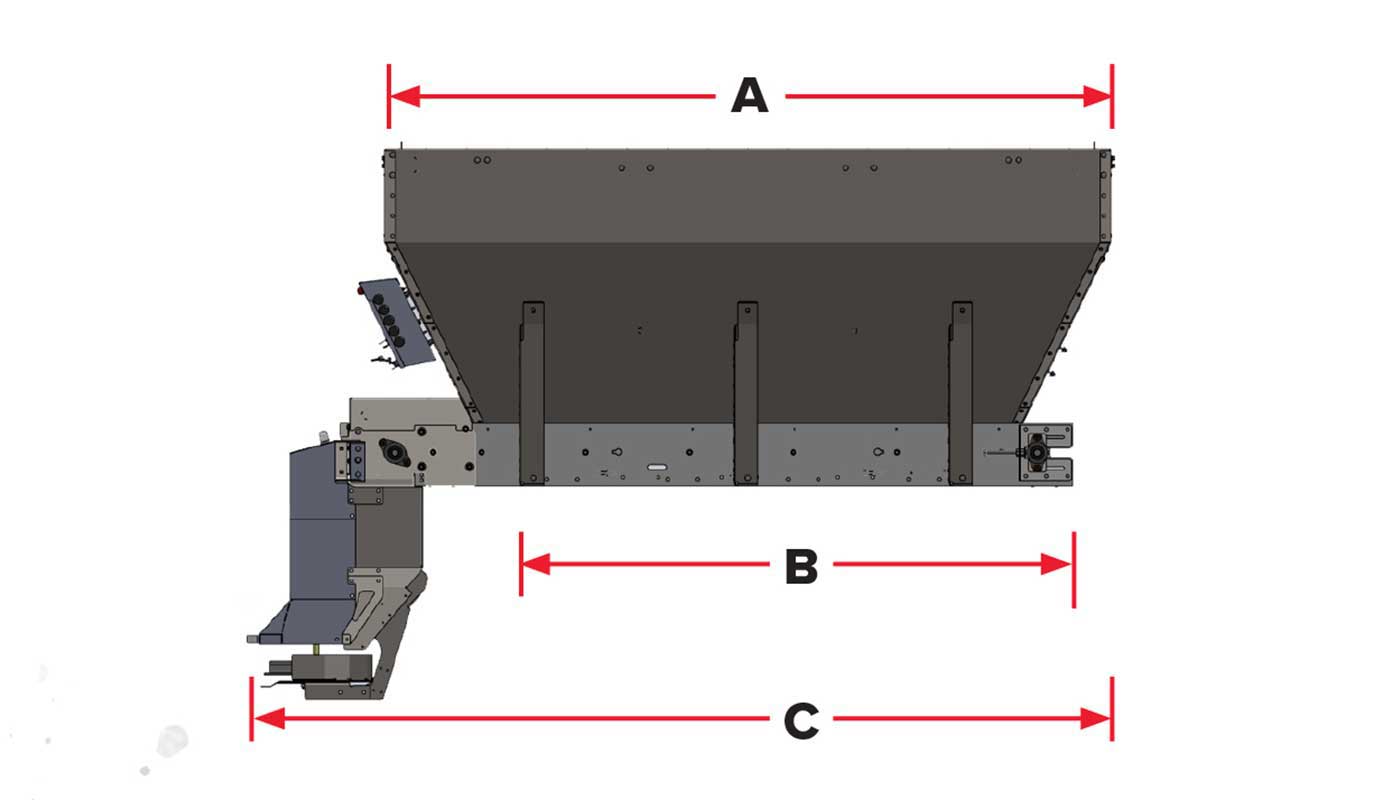

Reference Diagram
(A-C)
Reference Diagram
(A-C)
Width of Hopper Opening (D)
50" 50" 70" 70" 70"
Width of Hopper Opening (D) 127 cm127 cm177.8 cm177.8 cm177.8 cm
Height of Hopper w/o Chute (E)32"35.75" 41" 43.75" 50.50"
Height of Hopper w/o Chute (E)81.28 cm90.81 cm104.14 cm111.13 cm128.27 cm
Reference Diagram
(D-E)
Reference Diagram
(D-E)
Material Delivery DimensionsChain: 16" Wide
Auger: 6" Diameter
Chain: 16" Wide
Auger: 6" Diameter
Chain: 16" Wide
Auger: 6" Diameter
Chain: 16" Wide
Auger: 6" Diameter
Chain: 16" Wide
Auger: 6" Diameter
Material Delivery DimensionsChain: 40.64 cm Wide
Auger: 15.24 cm Diameter
Chain: 40.64 cm Wide
Auger: 15.24 cm Diameter
Chain: 40.64 cm Wide
Auger: 15.24 cm Diameter
Chain: 40.64 cm Wide
Auger: 15.24 cm Diameter
Chain: 40.64 cm Wide
Auger: 15.24 cm Diameter
Hopper ConstructionRiveted Stainless SteelRiveted Stainless SteelRiveted Stainless SteelRiveted Stainless SteelRiveted Stainless Steel
Hopper ConstructionRiveted Stainless SteelRiveted Stainless SteelRiveted Stainless SteelRiveted Stainless SteelRiveted Stainless Steel
Spinner Size16" Diameter16" Diameter16" Diameter16" Diameter16" Diameter
Spinner Size40.64 cm Diameter40.64 cm Diameter40.64 cm Diameter40.64 cm Diameter40.64 cm Diameter
* C = Pintle Chain Conveyor / A = HELIXX Shaftless Auger
* Material weight equates to approximately 2,160 lb/cu yd or 80 lb/cu ft for 1 bag of rock salt.
