How many snowplows can a WESTERN® PILE DRIVER™ pusher replace?

Contactors have reported that one fixed wing pusher is equivalent to the same efficiency and can clear as much snow as 3 snowplows. With the terrain-response advanced cutting edge (TRACE™) the 2′, independent sections remove more snow, reducing the amount of salt required.

How do I know which coupler works with my vehicle and PILE DRIVER™ pusher?

This coupler guide identifies the couplers available from Western Products and the loaders that they work with (Cat Fusion, CAT IT, ISO 23727 / VOLVO 120, ISO / JOHN DEERE 304, JRB 416, or UNIVERSAL SKID-STEER / SAE J2513).

How much maintenance is required for the PILE DRIVER™ pusher?

Maintaining the PILE DRIVER™ is quick and cost-effective. Routine grease points along the TRACE™ edge, pivot pins, and cylinders ensure smooth operation with a singular spring, while 2’ modular sections let you replace only worn areas rather than an entire cutting edge. Self-leveling side plates keep the TRACE edge in direct contact with the surface, and reversible, bolt-on shoes allow for fast field replacements using a standard 3/4-inch socket, ratchet, and wrench. This modular design eliminates the need for welding, meaning you only buy individual wear items. Additionally, the reversible shoes double your service life by allowing you to simply flip them to use the opposite edge before replacement.

I received a municipal bid for a large school campus, how do I decide which size PILE DRIVER™ fixed wing pusher I need?

Choosing the right size pusher depends primarily on your vehicle’s weight and horsepower. Skid-steers generally pair best with 8’ or 10’ models in 30” height, while tractors benefit from taller (like 36” heights), narrower options (like 8’ and 10’ widths) to match operator seat height and machine capacity. For compact wheel loaders, weighing between 9,000 and 20,000 pounds, pushers can range from 8’ to 16’ with a 30” height offering a lower profile and excellent visibility, whereas loaders over 20,000 pounds can easily handle larger models with 36” or 42” heights. Consult Quick Match to verify the exact fit and couplers required for your specific machine. Western Products is an approved supplier through Sourcewell (Contract #033126-DDY), streamlining the bidding process for government, education, and nonprofit entities. This saves snow and ice contractors time and money through competitively solicited contracts.

What makes the patented TRACE™ edge for PILE DRIVER™ pushers unlike anything else on the market?

The TRACE™ (terrain response advanced cutting edge) is a proprietary innovation featuring independent 2’ sections designed to raise, oscillate, and trip along with a singular spring for easy serviceability. This allows the plow to seamlessly adapt to uneven contours and obstacles on the road surface. By working together to maintain constant, close contact, the system removes significantly more snow on the first pass, which drastically reduces the amount of salt needed for ice control.

PILE DRIVER™
TRACE™ Edge
Technology

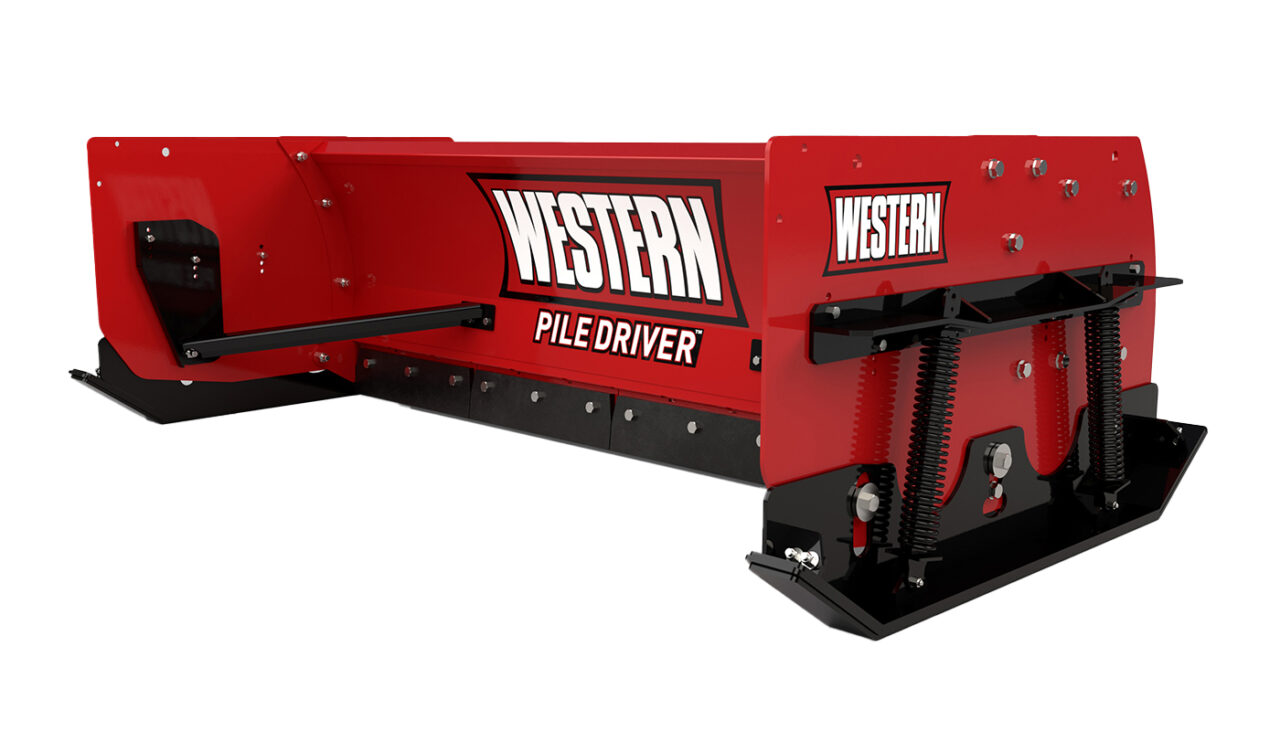

Fixed-Wing Pusher Box Plow

Quick Specs

Select a model:

8' Blade Width
2,658 lb Approx. Weight

Fits: Skid-Steers, Tractors & Wheel Loaders

Does this Plow fit my vehicle?

Verify compatibility and part number information

GO BIG
WITH SNOW REMOVAL

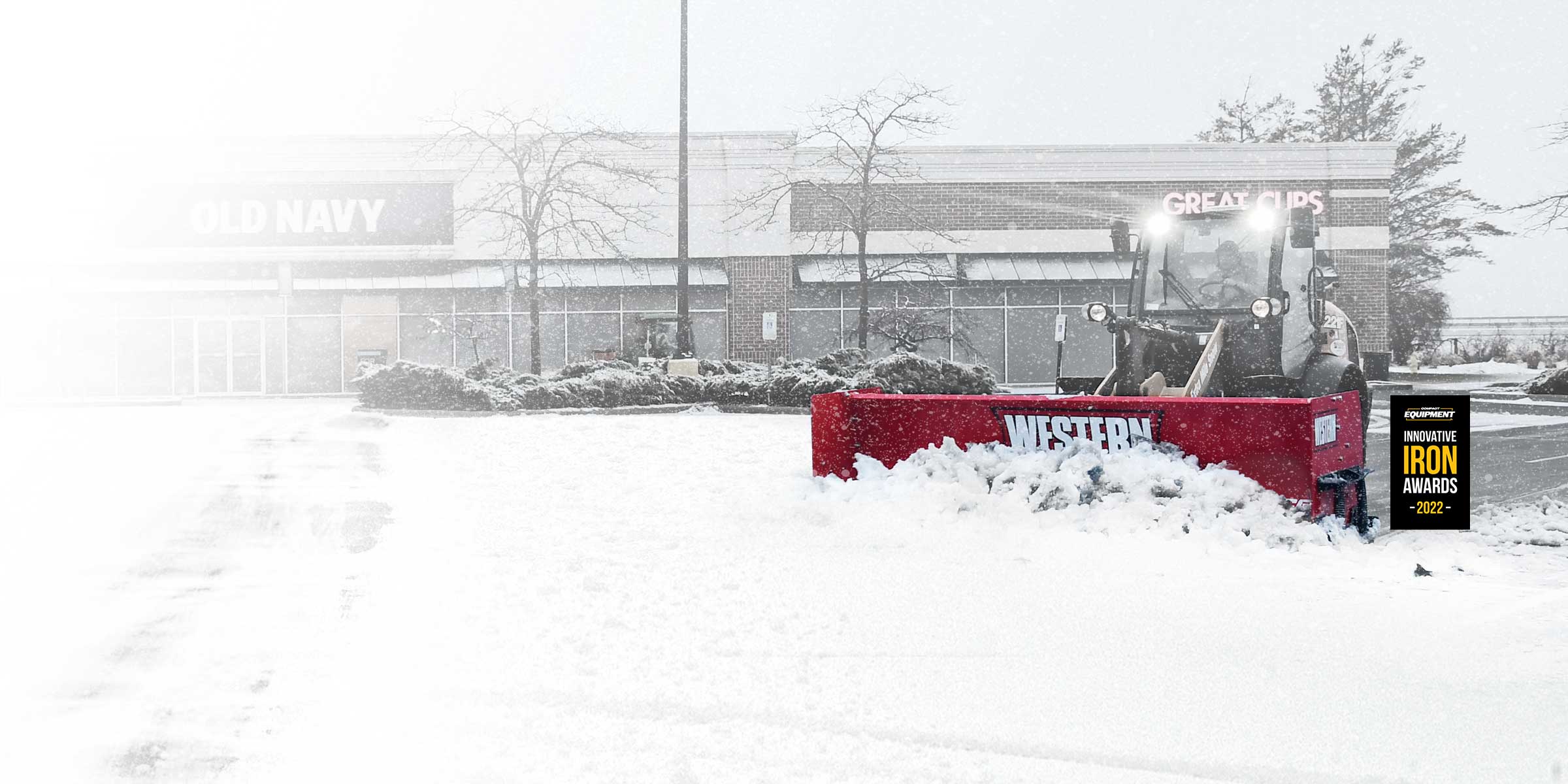

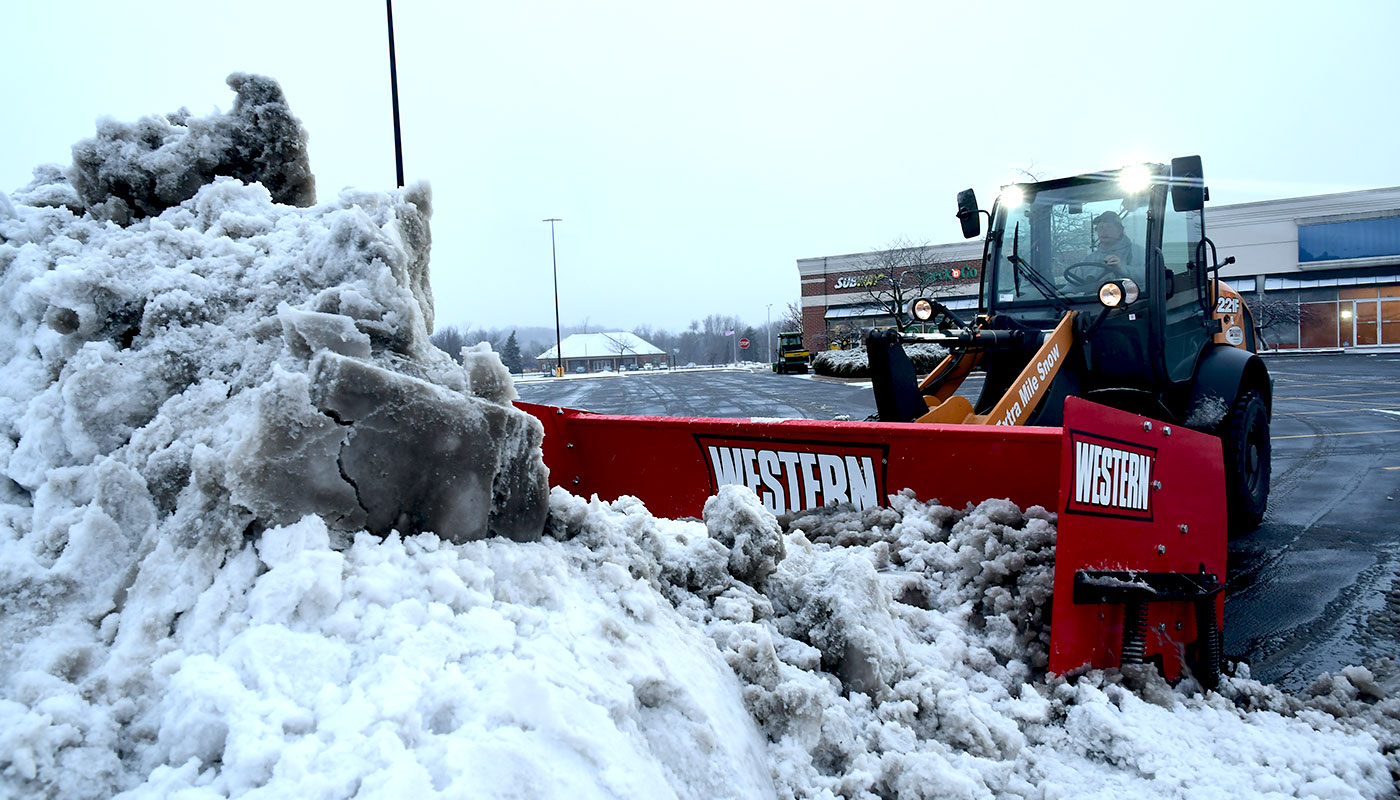

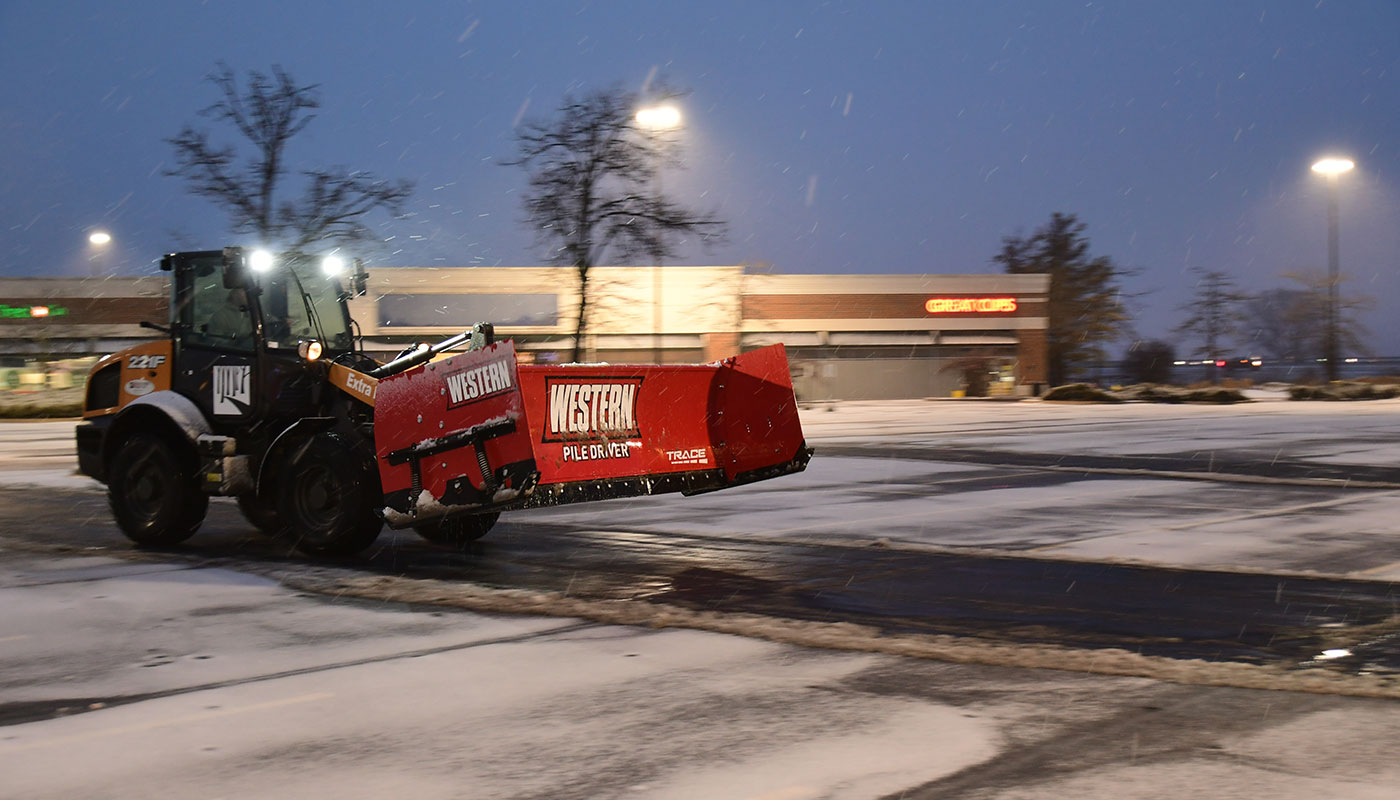

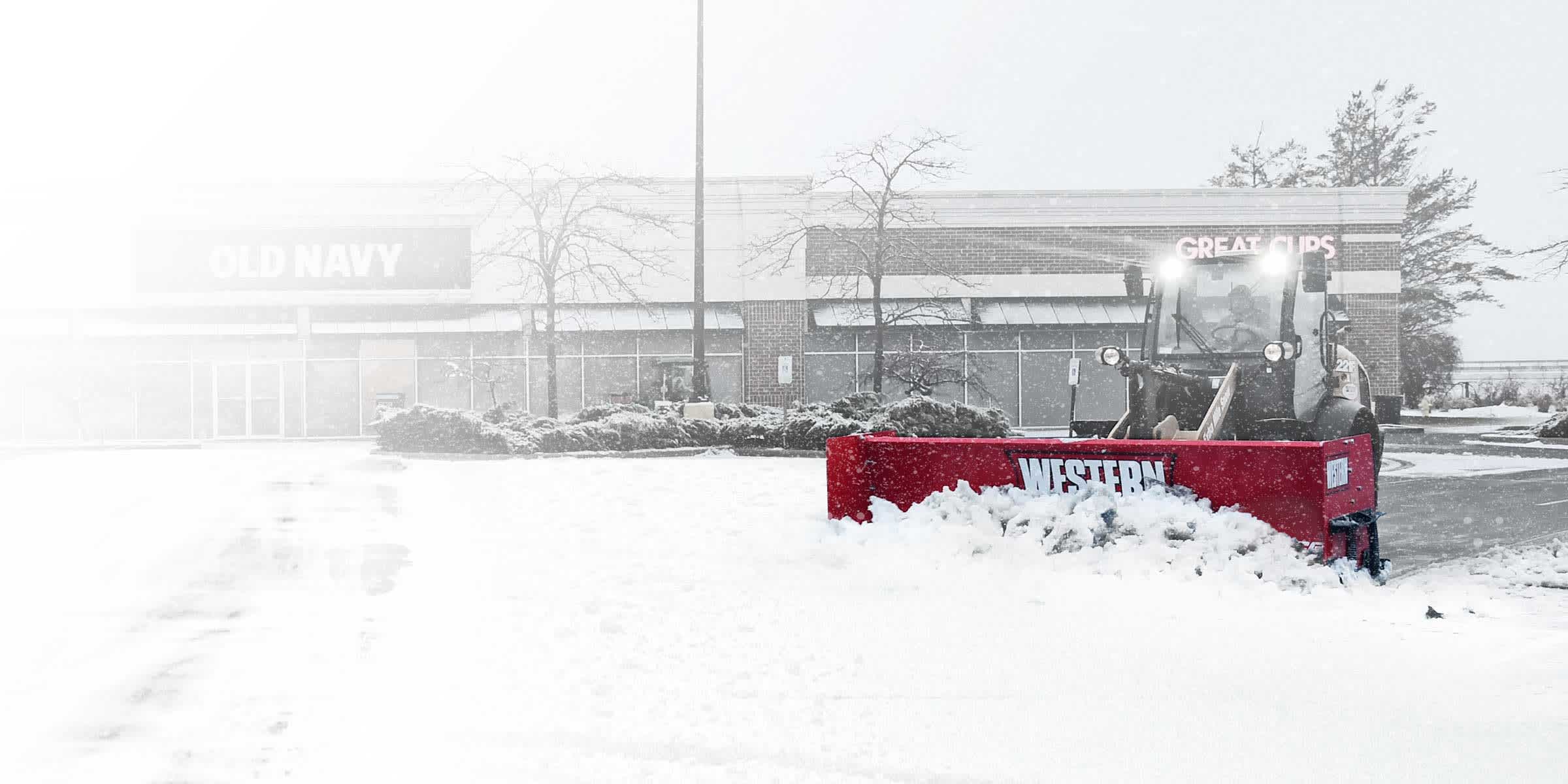

When the snow starts falling, there’s no time to waste. The world keeps moving, and the snow needs to get out of the way. The award-winning WESTERN^® PILE DRIVER fixed wing pusher plows with TRACE edge technology move massive amounts of snow—scraping down to the pavement—so you can get more jobs done faster. Available in 8′ to 16′ widths, these pushers raise the bar on efficiency. Made for skid-steers, loaders, and backhoe loaders—these units maximize snow removal and reduce your operations reliance on rock salt.

Compatible with Skid-Steers, Tractors & Wheel Loaders

Unique Features

What Sets PILE DRIVER™ Apart

Pusher Construction

30″, 36″, and 42″ tall pushers available in 8′, 10′, 12′, 14′ & 16′ widths
12-gauge, powder-coated steel
2′ cutting edge sections made of high-carbon steel with carbide inserts (TRACE)
Aggressive 84-degree attack angle ensures a clean scrape and back drag

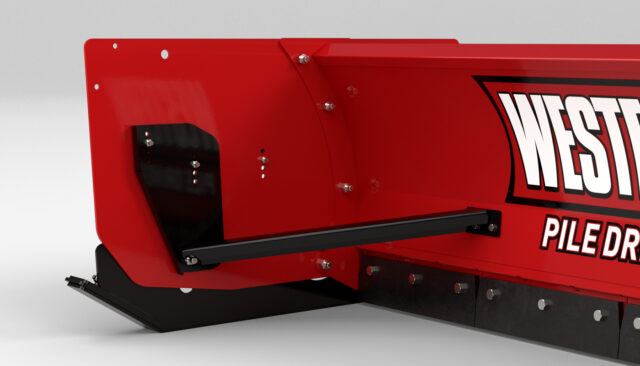

Structural Reinforcement

2 vertical ribs (per 2’ section) eliminate blade twisting and reduce stress on pusher assembly
2 reinforced horizontal tubes connect the ribs and provide exceptional torsional strength and rigidity

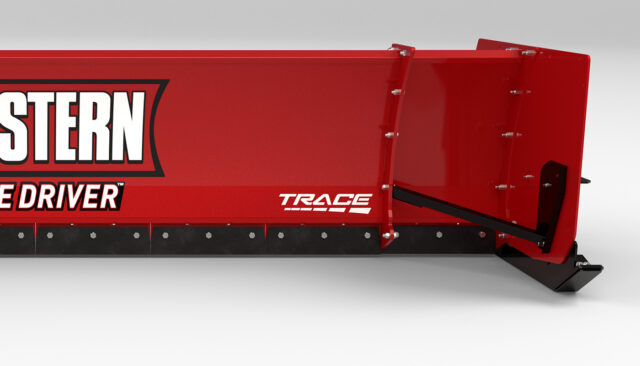

2’ cutting edge sections independently raise, oscillate, and trip

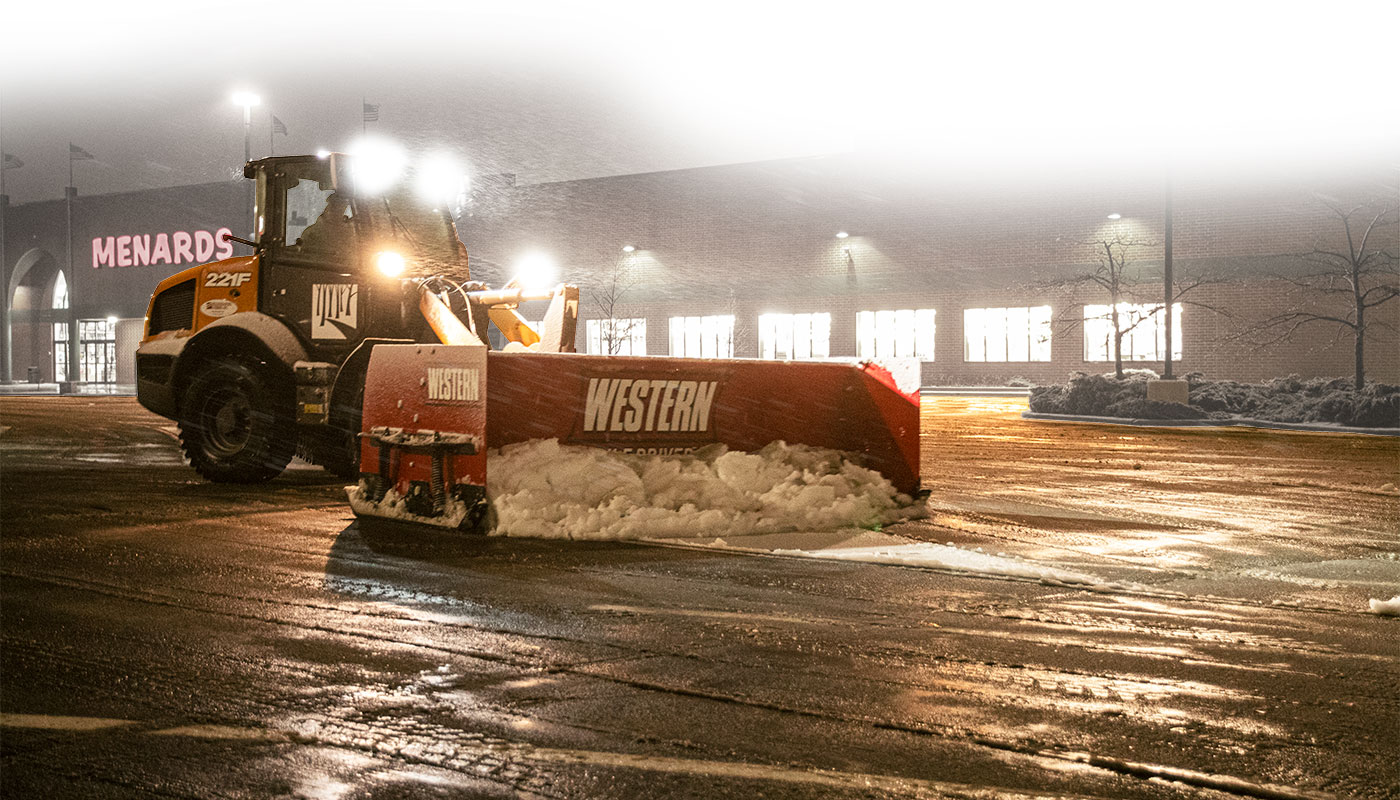

TRACE™ Edge Technology

The terrain-response advanced cutting edge is comprised of independent, 2' sections that raise, oscillate, and trip to accommodate contours and obstacles in the plowable surface. Working together, the sections remove more snow, reducing the amount of salt required. Two greasing locations allow the operator to keep the components well lubricated for maximum performance.

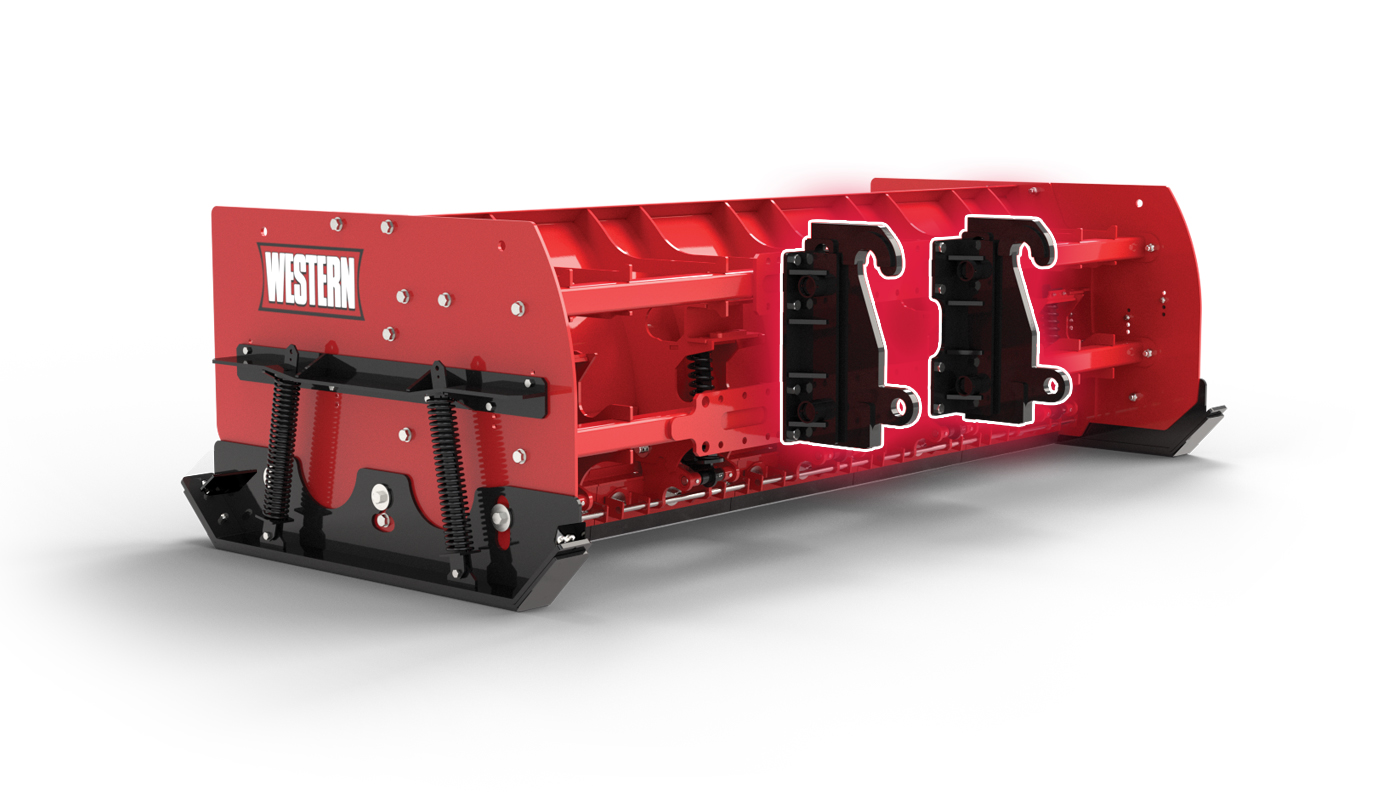

Common Attachment Plate

A common attachment plate with floating coupler makes installation easy with a wide variety of equipment and machinery, including skid-steers, wheel loaders, backhoes, and tractors. The floating coupler reduces negative down pressure from the vehicle, protecting against premature wear of the pusher cutting edge and components.

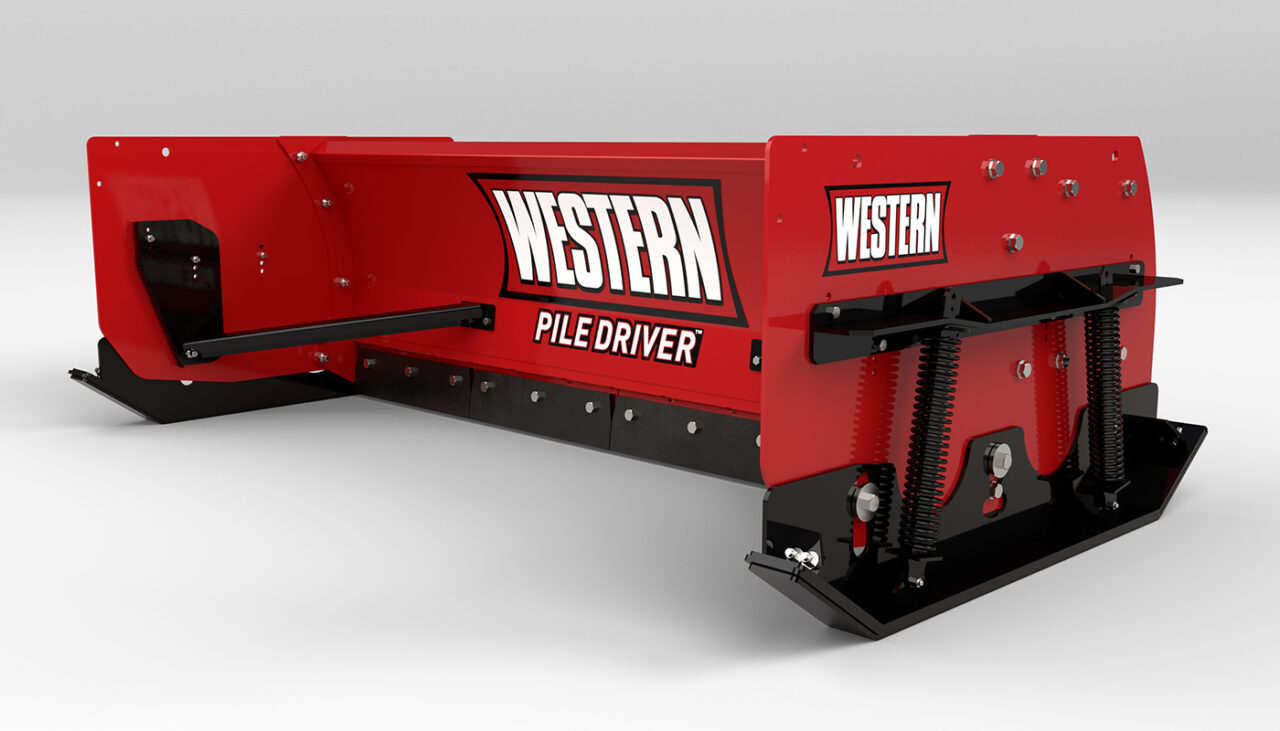

Easy Operation

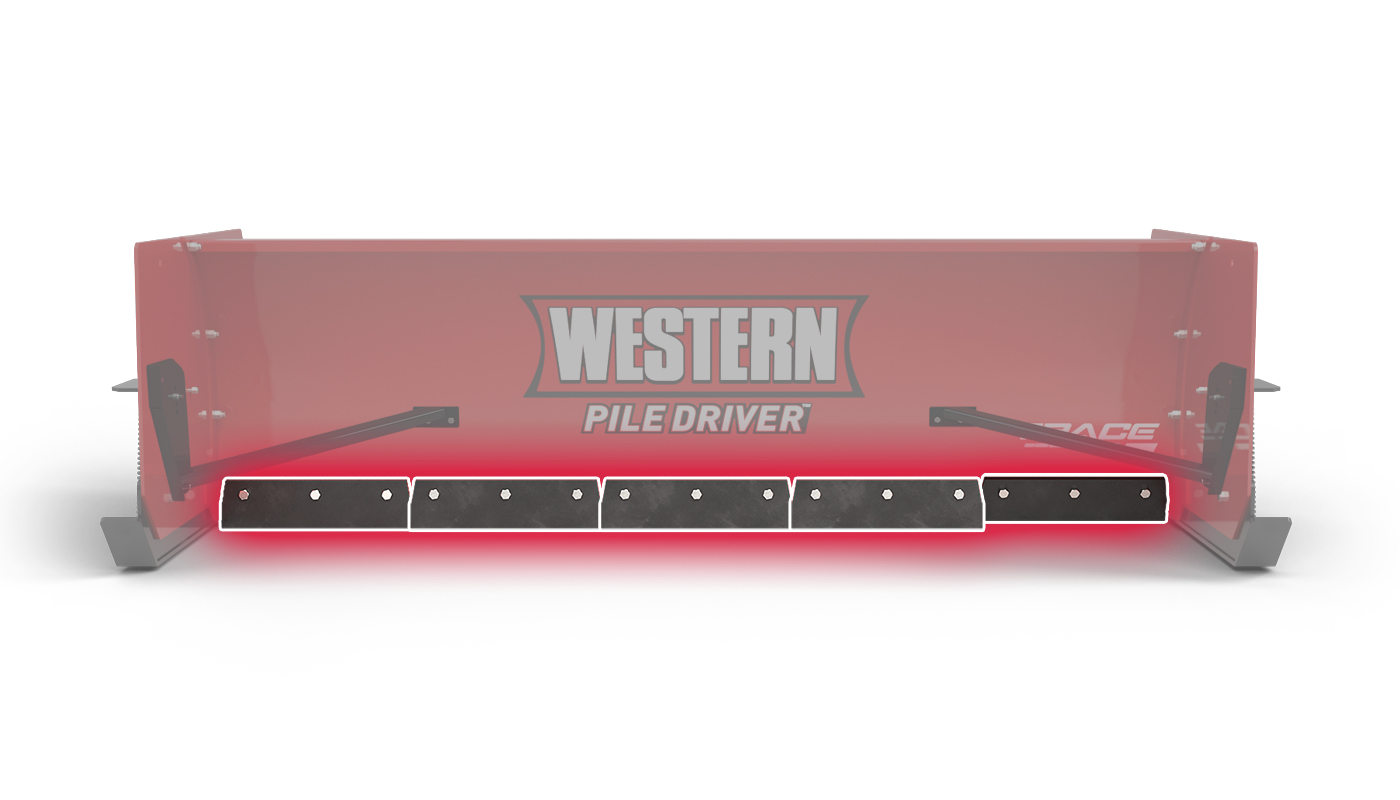

3/4" Cutting Edge With Carbide Inserts

3/4" Cutting Edge With Carbide Inserts

The PILE DRIVER plow performs in the most grueling commercial conditions. Each 2' section comes standard with a ¾" cutting edge with carbide insert and uses the same part number for easy replacement. No need to replace the full cutting edge, only the sections that show wear.

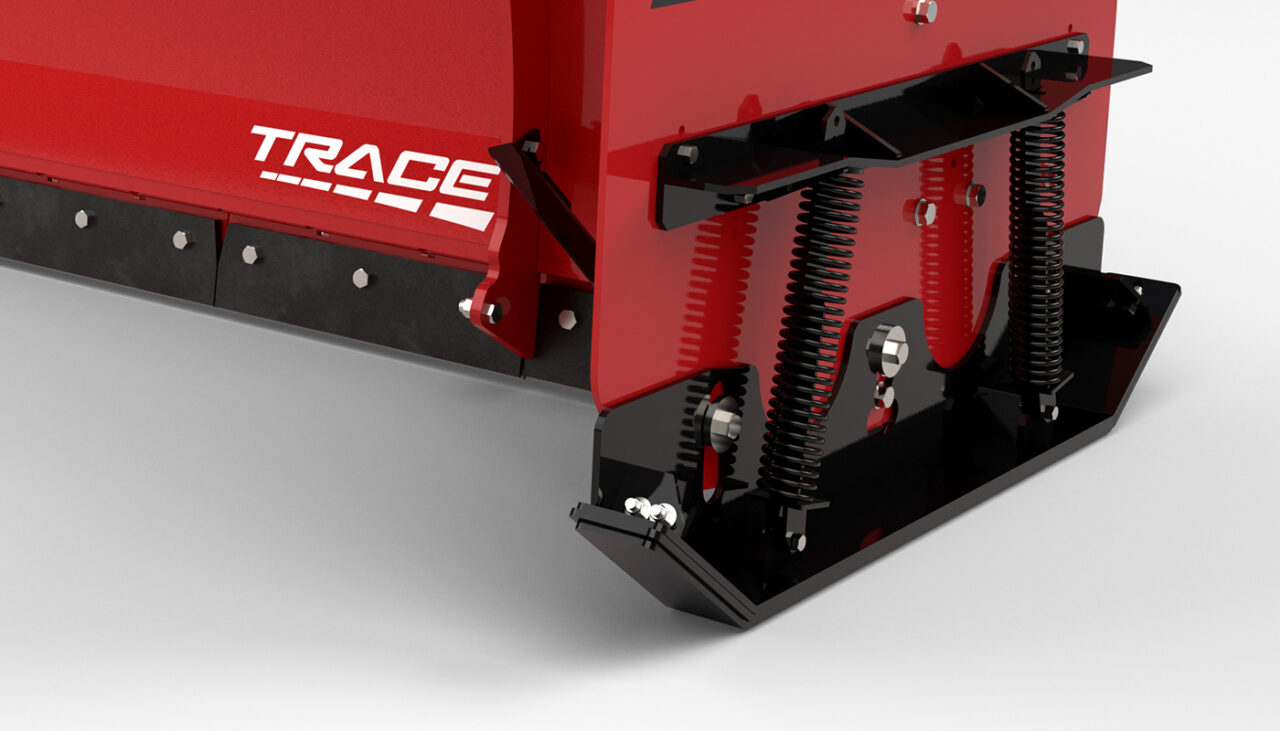

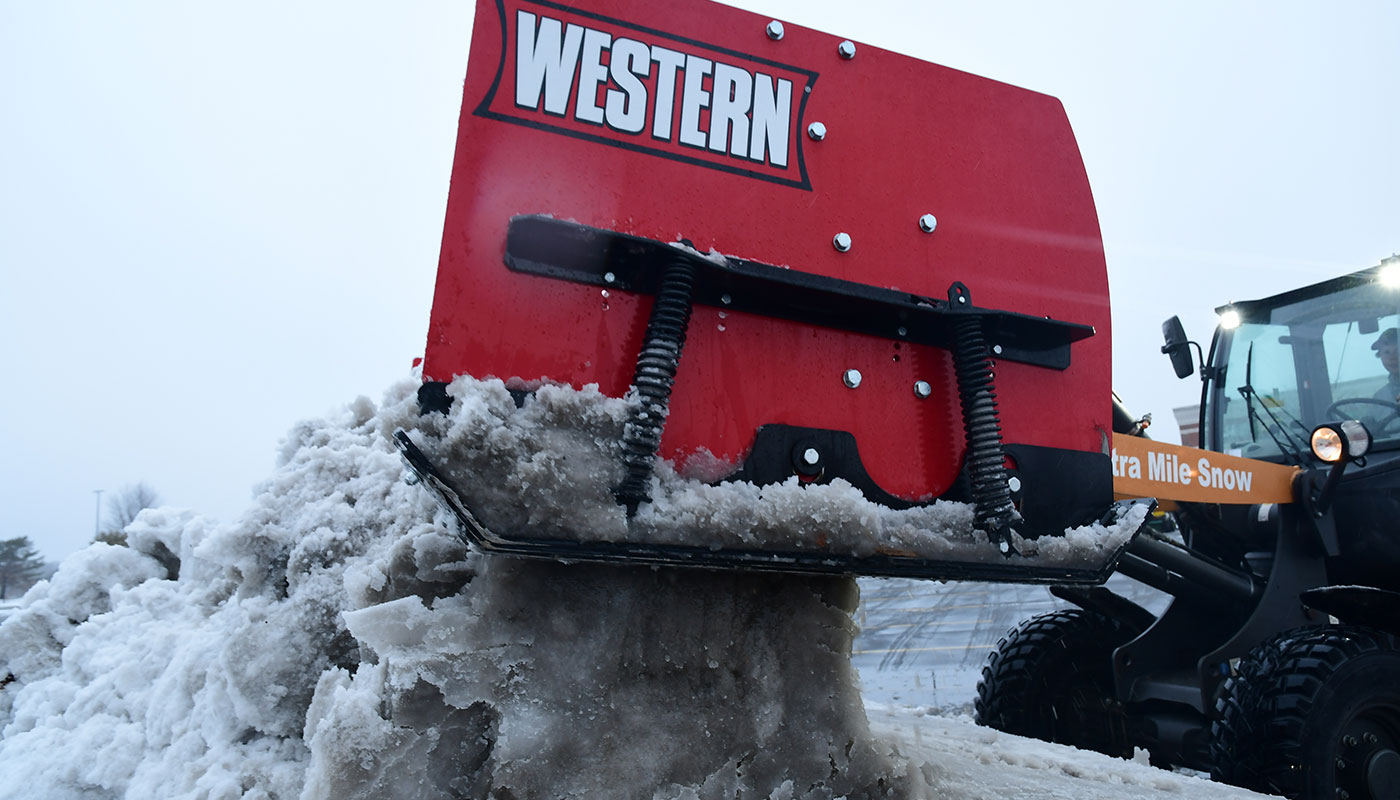

Self-Leveling Side Plates With Reversible, Bolt-On Shoes

pile driver reversible side plate and bolt on ski

Self-Leveling Side Plates With Reversible, Bolt-On Shoes

The side plates ensure the TRACE edge remains in direct contact with the plowable surface. The reversible, bolt-on ski makes serviceability easy, allowing you to use both edges of the ski before replacing. The bolt-on design makes replacement in the field possible with a ¾" socket, ratchet, and 3/4" wrench.

Universal Features

Every WESTERN snowplow includes

ULTRAFINISH™ Powder-Coat

The ULTRAFINISH™ baked on powder coat with epoxy primer protects against wear and rust. An eight-wheel shot blaster pre-treatment and multi-stage pre-wash prepares the plow surface for optimum coating adhesion.

See Details

Accessories

View All Accessories

Binder Kit

Part Numbers

Part Number

#72042

For All Models

For safety and stability, a binder kit (or chain kit) is highly recommended when plowing with the bucket still attached to the loader. The binder kit secures each side of the plow to the bucket, so it moves in sync. This can keep the plow from torqueing off when encountering an obstacle or pushing snow into a pile and backing up.

Back Drag Edge

Part Numbers

Part Number

#85733

For 8' Models

#85734

For 10' Models

#85735

For 12' Models

Ensure a clean scrape every time when back dragging snow. Built to be as rugged and durable as every other component of your pusher plow. Constructed of durable polyurethane and steel mounting components for simple installation.

Extreme Wear Shoe Kit

Part Numbers

Part Number

#89940

For All Models

Made of AR400 steel (adopted from municipal applications), this reversible bolt-on shoe kit ensures the TRACE edge remains in direct contact with the plowable surface. Helping it glide over gravel and dirt at the correct height. The AR400 steel protects your plow, the road, and extends cutting edge and base angle wear when plowing rocky or abrasive surfaces.

Specifications

Selecting a model updates product features and specs below.

Metric

Specification	31616-3	30708-2	32016-3	30710-2	32721-3	30712-3	32734-3	30714-3	32736-3	30716-3
Blade Width & Height	8' x 30"	8' x 36"	10' x 30"	10' x 36"	12' x 30"	12' x 42"	14' x 30"	14' x 42"	16' x 30"	16' x 42"
Approx. Weight	2,658 lb	2,753 lb	2,895 lb	2,947 lb	3,075 lb	3,322 lb	3,442 lb	3,791 lb	3,676 lb	3,980 lb
Application Weight (Max Operating Weight)	8,000 lb	10,000 lb	9,000 lb	12,000 lb	25,000 lb	25,000 lb	25,000 lb	30,000 lb	25,000 lb	36,000 lb
Blade Width	8'	8'	10'	10'	12'	12'	14'	14'	16'	16'
Blade Height	30"	36"	30"	36"	30"	42"	30"	42"	30"	42"
Side Plate Width	36"	36"	36"	36"	36"	36"	36"	36"	36"	36"
Side Plate Height	30"	36"	30"	36"	30"	42"	30"	42"	30"	42"
Moldboard Radius	27"	27"	27"	27"	27"	46"	27"	46"	27"	46"
Approx. Snow Capacity	75 cu ft	108 cu ft	94 cu ft	135 cu ft	113 cu ft	219 cu ft	132 cu ft	255 cu ft	151 cu ft	291 cu ft

Specification	31616-3	30708-2	32016-3	30710-2	32721-3	30712-3	32734-3	30714-3	32736-3	30716-3
Moldboard Options	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel
Blade Type	Pusher	Pusher	Pusher	Pusher	Pusher	Pusher	Pusher	Pusher	Pusher	Pusher
Vehicle Compatibility	Skid-Steer	Tractor / Wheel Loader	Skid-Steer	Tractor / Wheel Loader	Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors	Wheel Loader	Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors	Wheel Loader	Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors	Wheel Loader
Horsepower Compatibility	45+ hp (Skid-Steer)	40+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe)	60+ hp (Skid-Steer)	50+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe)	40+ hp (Tractor) 60+ hp (Wheel Loader)	100+ hp (Wheel Loader & Backhoe)	40+ hp (Tractor) 60+ hp (Wheel Loader)	140+ hp (Wheel Loader & Backhoe)	40+ hp (Tractor) 60+ hp (Wheel Loader)	140+ hp (Wheel Loader & Backhoe)
Cutting Edge Technology	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge
Cutting Edge Material	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts
Mount Type	Skid-Steer Attach Plate	Skid-Steer Attach Plate / Coupler	Skid-Steer Attach Plate	Skid-Steer Attach Plate / Coupler	Skid-Steer Attach Plate / Coupler	Coupler	Skid-Steer Attach Plate / Coupler	Coupler	Skid-Steer Attach Plate / Coupler	Coupler

Compare Products

Does This Pusher Fit My Vehicle?

Easily identify which WESTERN® pusher plows will fit your vehicle, based on your vehicle's unique specifications.

Quick Match

Product Support & Resources

Buying Resources

Full Line Brochures

Pushers

Download

Spec Sheet

Printable specification sheet for PILE DRIVER™ (TRACE™ Edge)

Download

Services & Support

Parts List

Search Documents

Installation Instructions

Search Documents

Owner's Manual

Search Documents

Mechanic’s Guide

Search Documents

Parts Finder

View

Coupler Identification Guide

View

Quick Search

Find service documentation for your PILE DRIVER™ (TRACE™ Edge) model. Search by part number, literature number, or keyword.

Search Documents

Photo & Video Gallery

View Full Gallery

+12 more

Video Gallery

View Full Gallery

Frequently asked questions

Maintaining the PILE DRIVER™ is quick and cost-effective. Routine grease points along the TRACE™ edge, pivot pins, and cylinders ensure smooth operation with a singular spring, while 2’ modular sections let you replace only worn areas rather than an entire cutting edge. Self-leveling side plates keep the TRACE edge in direct contact with the surface, and reversible, bolt-on shoes allow for fast field replacements using a standard 3/4-inch socket, ratchet, and wrench. This modular design eliminates the need for welding, meaning you only buy individual wear items. Additionally, the reversible shoes double your service life by allowing you to simply flip them to use the opposite edge before replacement.

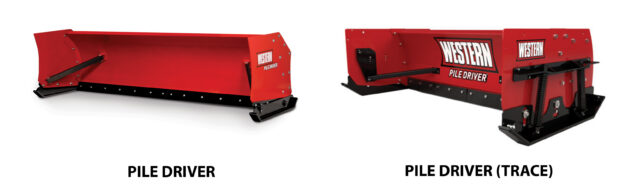

Original PILE DRIVER™ models had a rubber cutting edge that was eventually upgraded to a steel cutting edge over time. The new PILE DRIVER™ pushers have a terrain-response advanced cutting edge (TRACE) that is comprised of independent, 2′ sections that raise, oscillate, and trip to accommodate contours and obstacles in the plowable surface. The new pushers are also easy to identify by the large branding on the inside of the box, a larger inside brace that supports the wing, and a reinforced bolt-on shoe (the front angle of the ski was increased to make curbing easier).
Choosing the right size pusher depends primarily on your vehicle’s weight and horsepower. Skid-steers generally pair best with 8’ or 10’ models in 30” height, while tractors benefit from taller (like 36” heights), narrower options (like 8’ and 10’ widths) to match operator seat height and machine capacity. For compact wheel loaders, weighing between 9,000 and 20,000 pounds, pushers can range from 8’ to 16’ with a 30” height offering a lower profile and excellent visibility, whereas loaders over 20,000 pounds can easily handle larger models with 36” or 42” heights. Consult Quick Match to verify the exact fit and couplers required for your specific machine.

Western Products is an approved supplier through Sourcewell (Contract #033126-DDY), streamlining the bidding process for government, education, and nonprofit entities. This saves snow and ice contractors time and money through competitively solicited contracts.
The TRACE™ (terrain response advanced cutting edge) is a proprietary innovation featuring independent 2’ sections designed to raise, oscillate, and trip along with a singular spring for easy serviceability. This allows the plow to seamlessly adapt to uneven contours and obstacles on the road surface. By working together to maintain constant, close contact, the system removes significantly more snow on the first pass, which drastically reduces the amount of salt needed for ice control.
