Can you easily adjust the baffles on the fly from 30 to 36 inches?

Yes, it takes about a minute to unpin the trough, flip it down, and adjust the baffles on either side. Each side has a 3” baffle that can be adjusted independently. This is easy to do in the field as needed with no tools.

Is that clicking sound on my DROP™ 250 and 600 drop spreader normal?

Yes, this is by design. The agitator acts as a built-in vibrator and ensures a better flow of material.

Can you easily interchange the DROP™ spreader on multiple vehicles within your fleet?

Yes, the DROP™ 250 and 600 drop spreaders are one of the only spreaders that comes standard with three different mounts (2” receiver hitch, 3-point mount, and in-bed mount) to fit UTVs and tractors. Visit the spreader selector to confirm compatibility. NOTE: Each vehicle will require its own dedicated wiring harness for power.

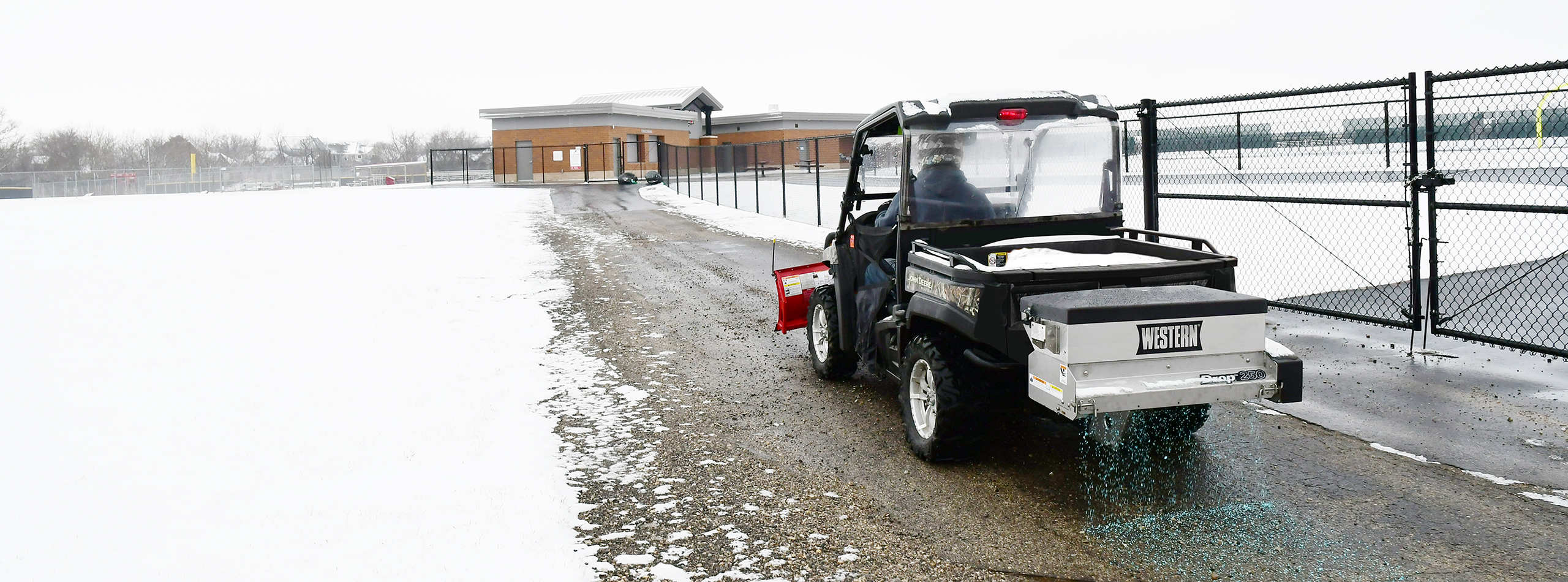

drop 250 and 600 stainless steel spreader

DROP™ 250 & 600
Stainless Steel Tailgate Spreaders

Quick Specs

Select a model:

2.5 cu ft, 250 6.0 cu ft, 600

2.5 cu ft Capacity (Volume)
350 lb Capacity (Weight)

Material: Salt & Fine Materials
Standard Mounts: 2" Receiver, 3-Point & In-Bed

Does this Spreader fit my vehicle?

Verify compatibility and part number information

PLACE SALT
EXACTLY WHERE IT’S NEEDED

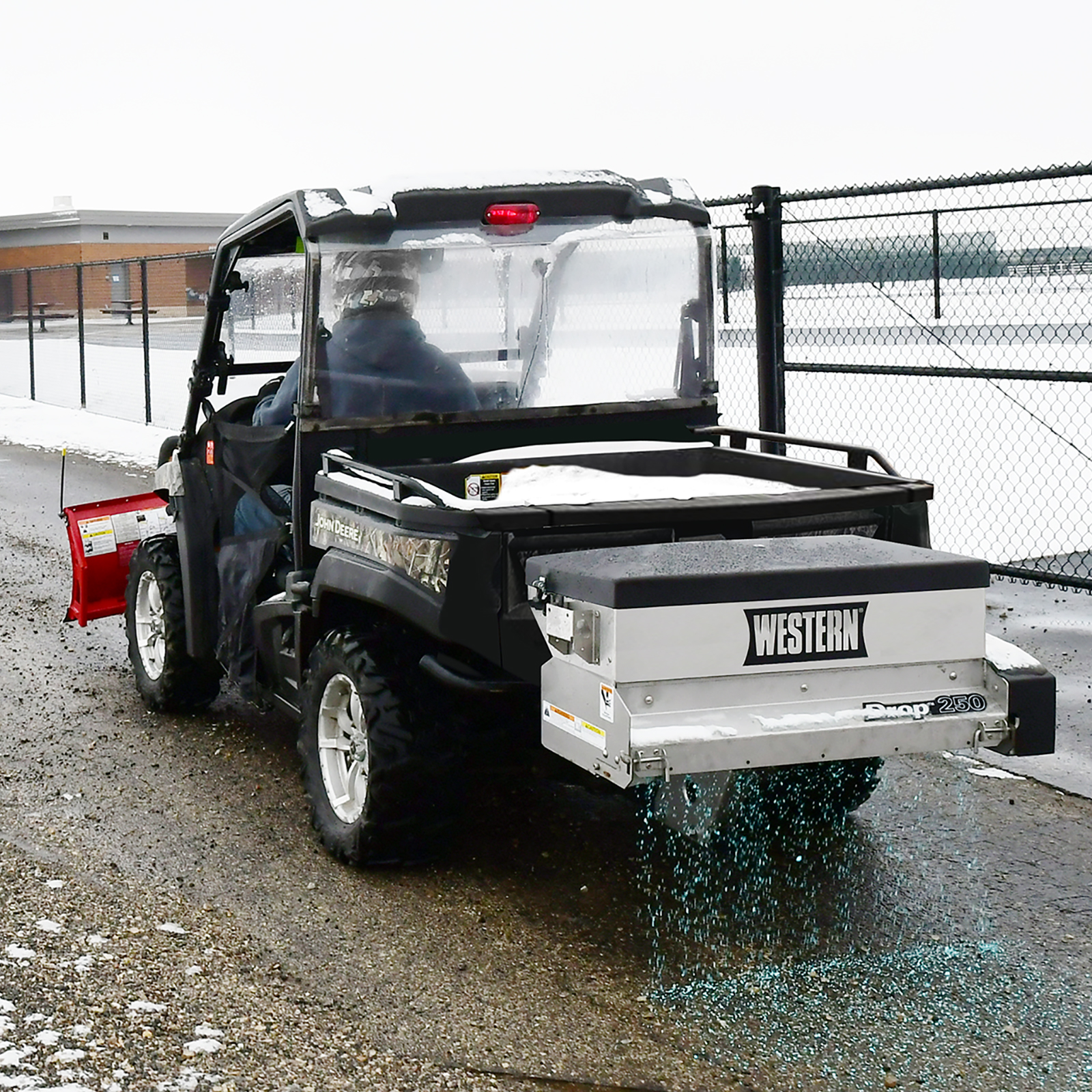

When your commercial contracts demand clear and safe sidewalks and walking paths that is surrounded by sensitive landscaping or surfaces, the WESTERN^® stainless steel DROP™ 250 (2.0 cu yd) and 600 (6.0 cu yd) spreaders are the only business tools for the job. These units are engineered to place salt exactly where it is needed, providing a controlled drop pattern up to 36 inches wide. This eliminates waste and protects non-target areas like grass and landscaping. With versatile mounting systems these spreaders fit onto UTVs and compact tractors, allowing your crew to make quick work of areas where larger trucks cannot efficiently operate.

Compatible with UTVs, Tractors & Loaders

Unique Features

What Sets DROP™ Apart

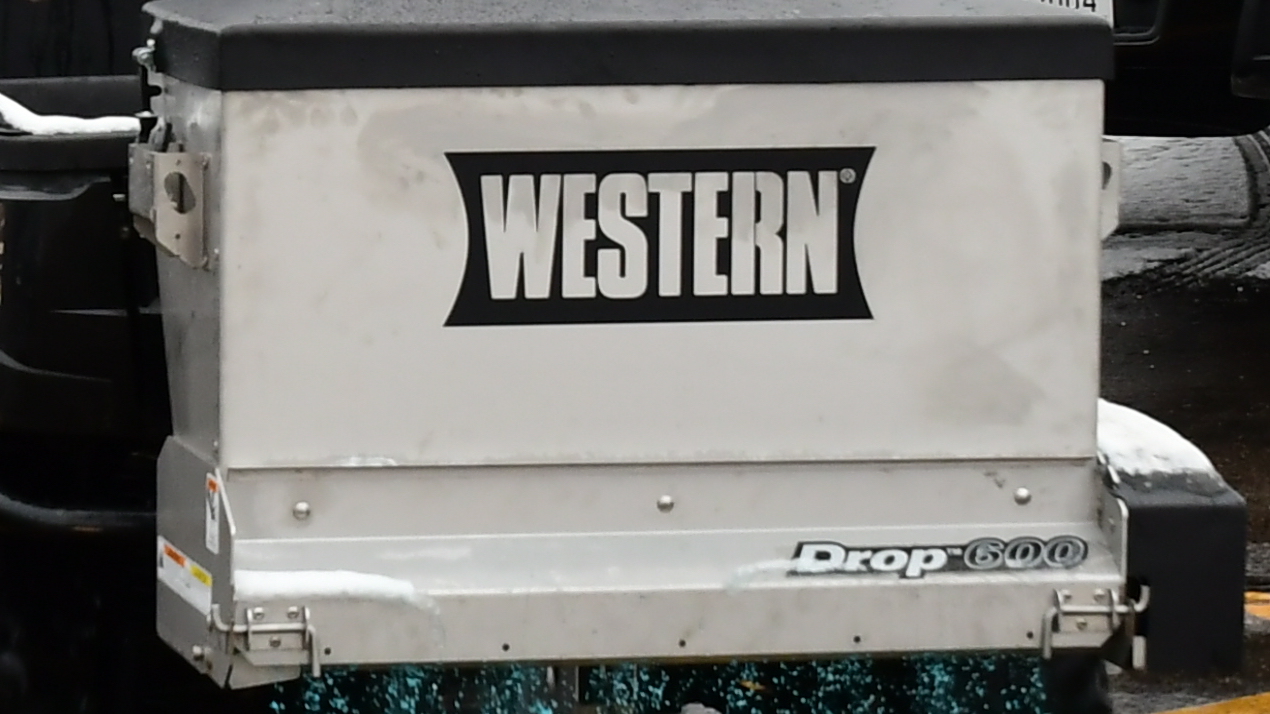

Hopper Construction

Built with corrosion-resistant stainless steel, the design uses high strength rivets and bolts for a clean appearance and superior stress resistance
Oil filled poly bearings provide a long, maintenance-free service life

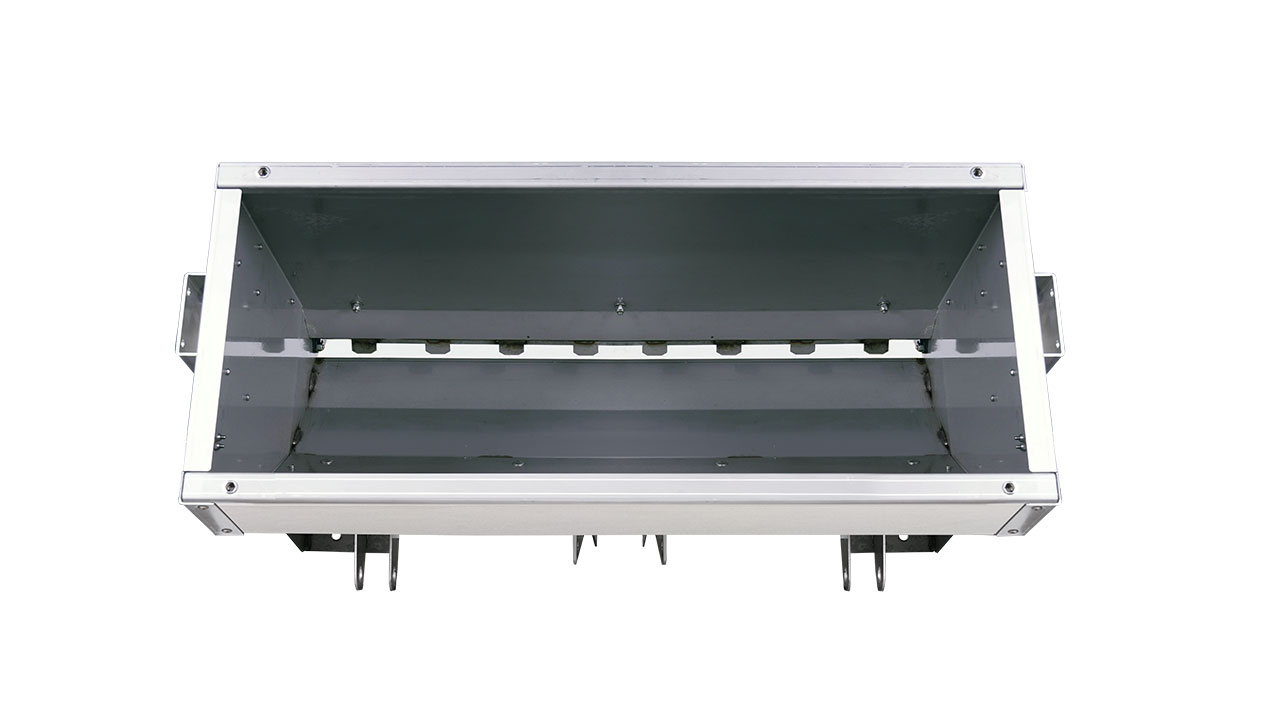

Material Delivery

Integrated baffles agitate the spinner walls with each revolution to prevent material buildup
Drop spread pattern for accurate placement, reducing the bounce and scatter of material onto surrounding areas

EASY CLEAN-OUT

EASY CLEAN-OUT

The entire trough drops open for easy and fast material clean-out when the job is done. This allows you to store any leftover de-icing material in a dry, weather-resistant container until you need it for the next job.

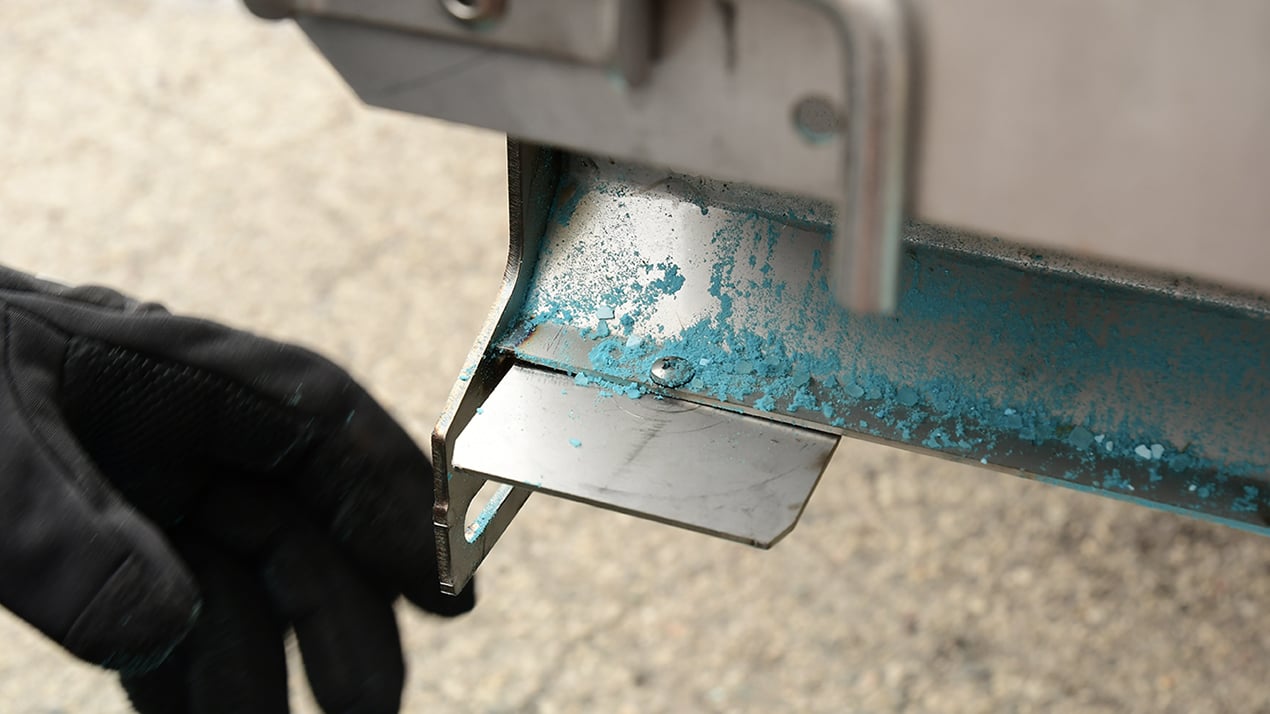

ADJUSTABLE BAFFLES (30" to 36" WIDTH)

ADJUSTABLE BAFFLES (30" to 36" WIDTH)

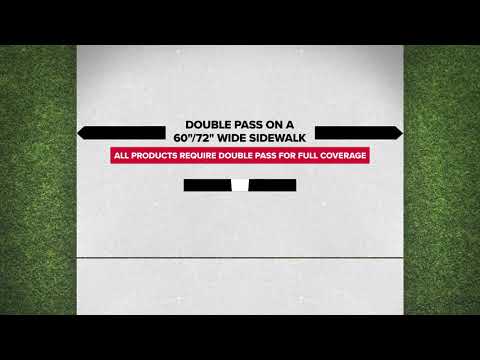

A 36″ spread width makes applications on sidewalks and walking paths easy. The WESTERN drop spreaders can treat these surfaces with one or two passes and limit damage to the grass or sensitive surfaces right next to the path. The spread width can be limited to 30″ by activating 3″ baffles on either side of the trough.

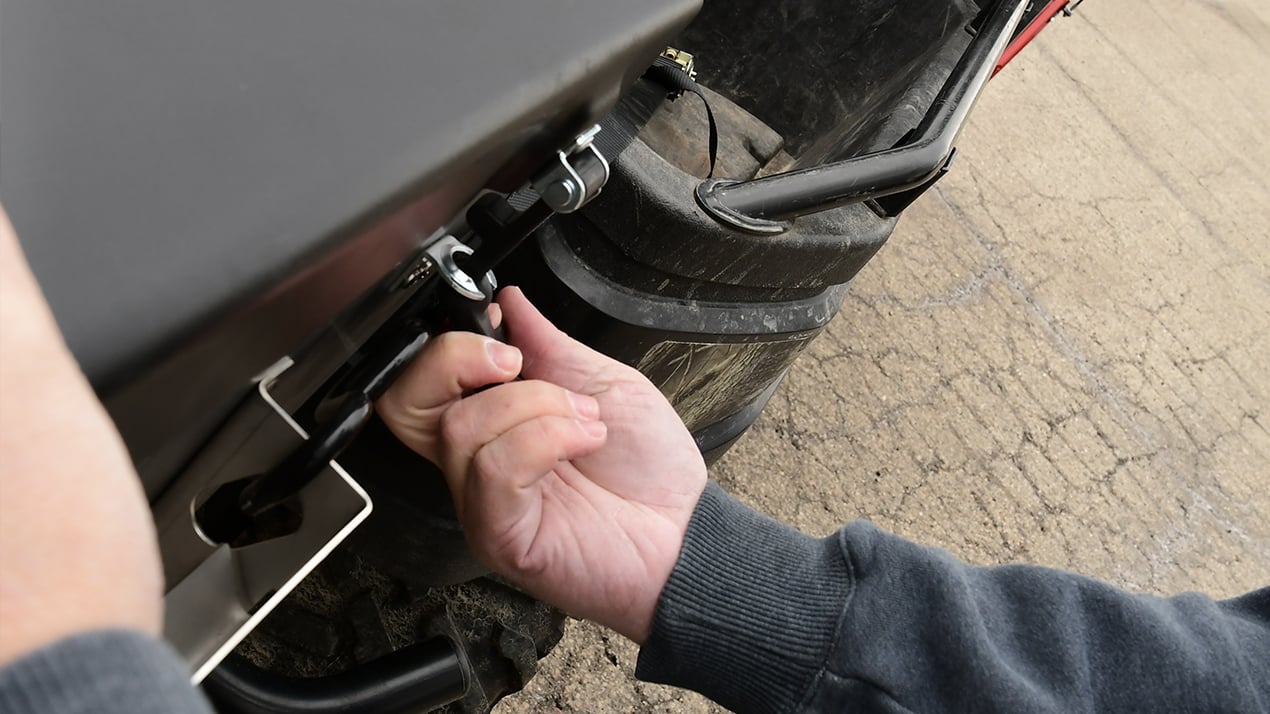

FITTED LID WITH RUBBER STRAPS

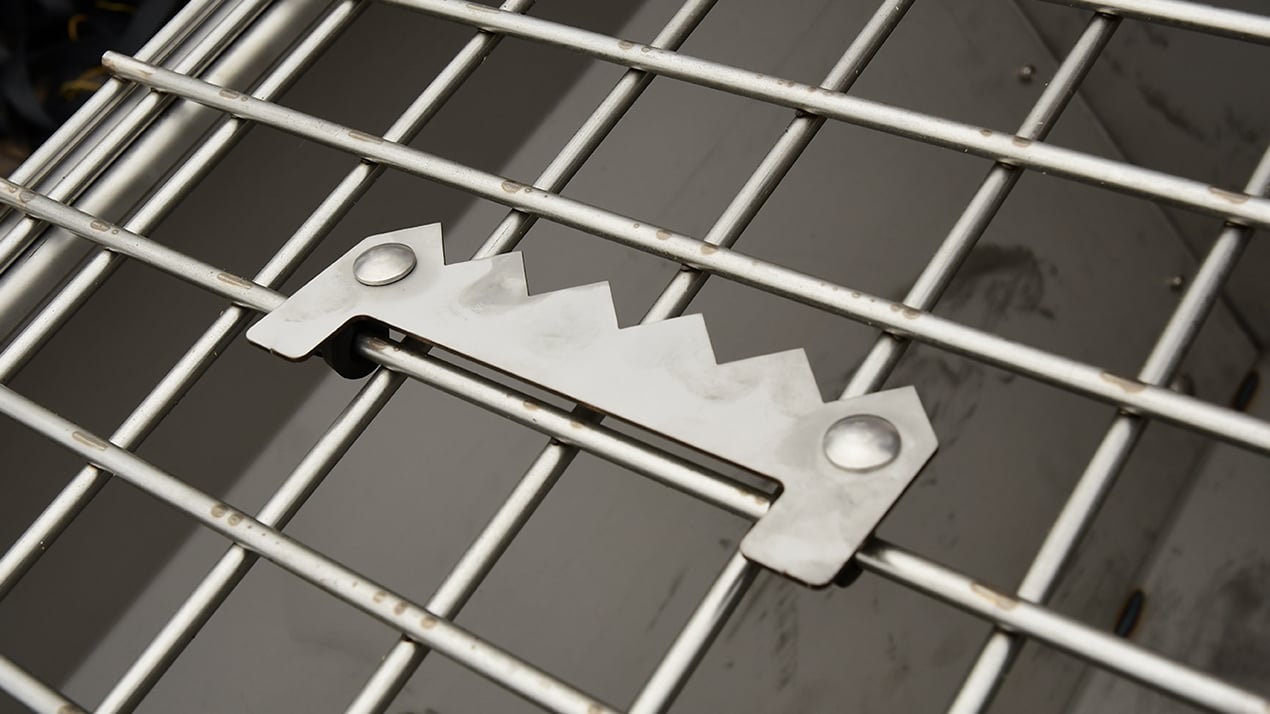

TOP SCREEN & BAG SPLITTER

A stainless steel hatch screen helps break up de-icing material to prevent bridging and clogs during operation. A hinged bag splitter that easily pulls up to open bagged rock salt for easy loading. When not in use, the bag splitter can be folded down and out of the way.

Standard Options

Mounts & Controls

Mounts

STANDARD

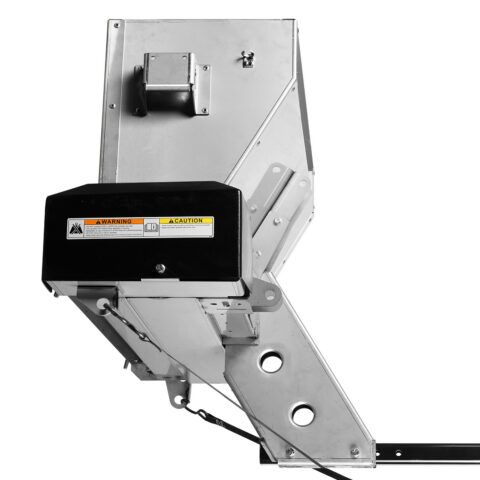

2" Receiver Hitch

Included With New Spreader Purchase

A detachable 2-inch receiver style mount is provided as a standard feature and includes all the necessary hardware to attach the spreader to the vehicle. This allows the spreaders to be mounted on various equipment; anything with a 2-inch hitch receiver with sufficient payload capacity for the selected spreader.

STANDARD

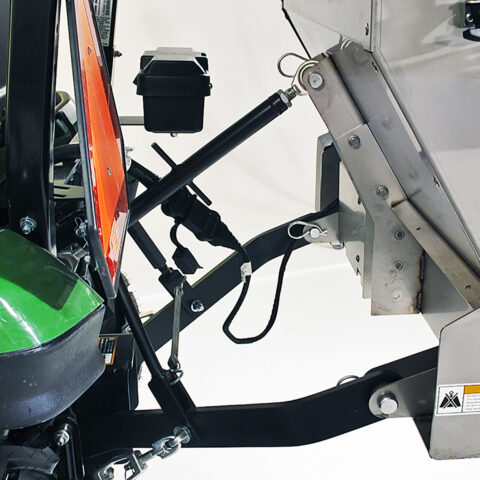

3-Point Mount

Included With New Spreader Purchase

The 3-Point Mount includes all the pins needed for installation and is intended for compact tractors and articulating loaders. The spreaders have been designed to include attachment points and hardware that are compatible with a 3-point style implement hitch.

STANDARD

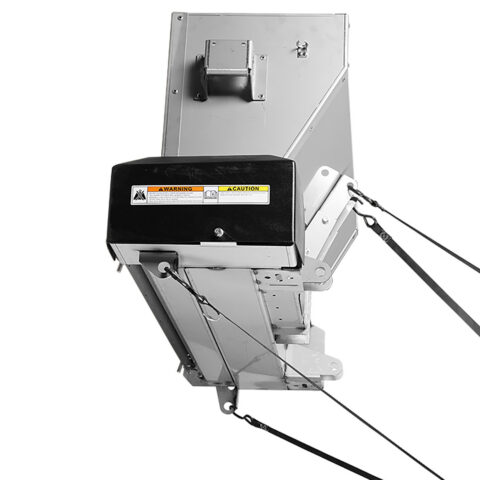

In-Bed Mount

Included With New Spreader Purchase

In-bed mounting allows the units can sit flat and balanced with brackets and ratchet tie down straps are included to secure the unit in a UTV bed. This reduces stress on the equipment since the weight is positioned over the rear wheel as opposed to behind them and increases versatility to maneuver in tight spaces.

Controls

STANDARD

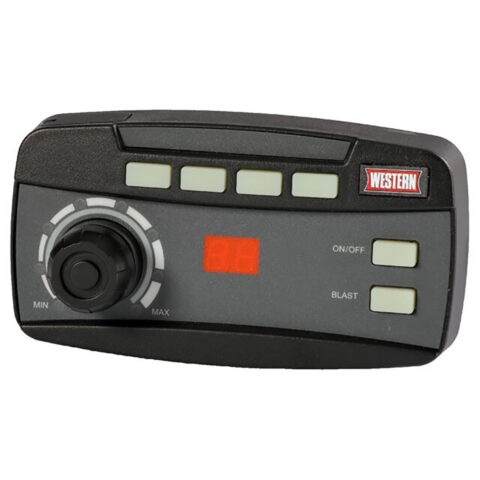

Variable Speed Control

Included with New Spreader Purchase

Match material delivery rate to the precise conditions with enhanced speed control with a single variable-speed control knob that controls material flow rate.

Material compatibility

Bagged Salt

See Details

Fine Materials

See Details

Accessories

View All Accessories

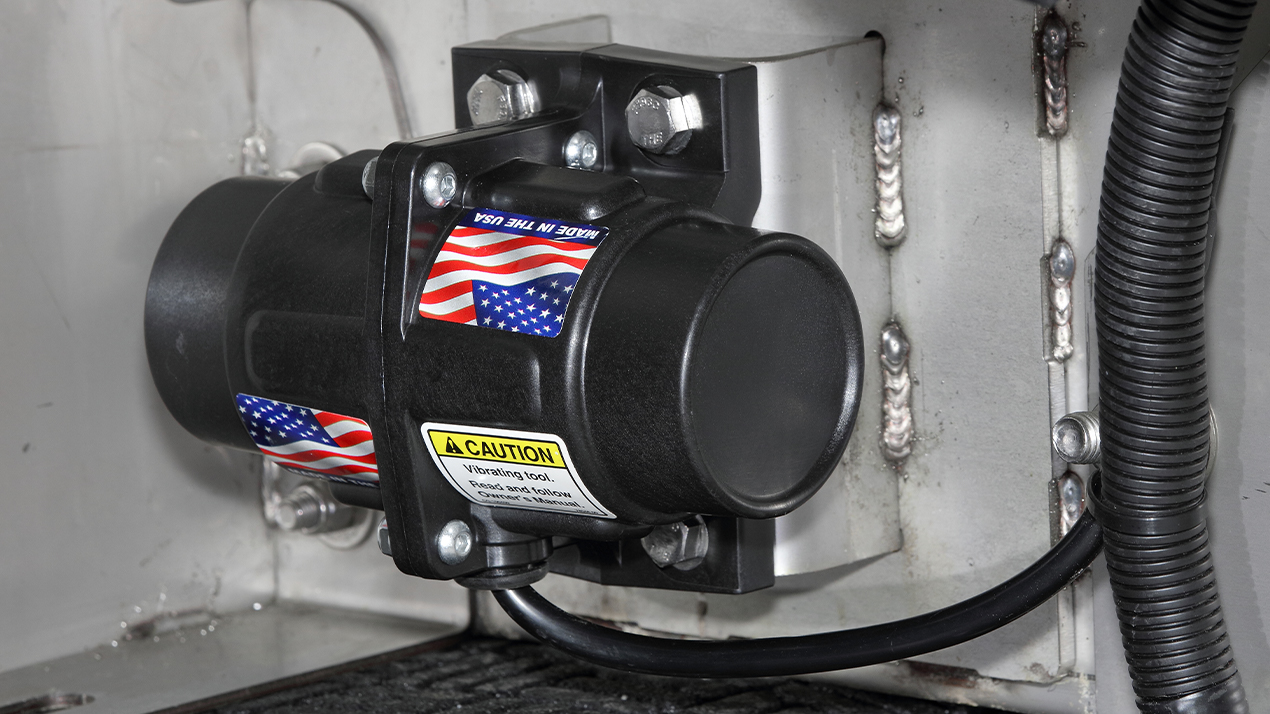

VIBRATOR KIT

Part Numbers

Part Number

#91835

For DROP 250 & 600

Loosen up with this Vibrator Kit to help move stubborn material and prevent bridging. Featuring a 200V DC vibrator motor in a metal housing, our vibrator will help prevent bridging and clogging, improving material flow so you can do your job faster and better.

SIDE EXTENSIONS

Part Numbers

Part Number

#91805

2.5 cu ft Model Expands to 4.0 cu ft

#91810

6.0 cu ft Model Expands to 8.0 cu ft

1.5 and 2.0 cu ft extension collars are available as an accessory to increase material capacity for UTVs that can handle the additional weight.

SPREADER CONTROL ADAPTER PLATE

Part Numbers

Part Number

#82018

For DROP 250 & 600

Gain the flexibility and easy installation benefits of the cup holder control mount with every spreader installation using the new Spreader Control Adapter Plate Kit. Kit contains a durable metal mounting plate and hardware.

Control Cup Holder Mount not included, order separately (#82007).

LED STROBE LIGHT KIT

Part Numbers

Part Number

#91815

For DROP 250 & 600

Make sure you’re seen, day or night, with our Strobe Lights for added visibility during operation. Encased in high impact plastic, this yellow LED strobe works in temperatures as cold as -20°F and will ensure that you’re seen in all but the worst of conditions. Make sure you spread safely with strobe light markers.

Specifications

Selecting a model updates product features and specs below.

Metric

Specification	87530	87630
Capacity (Volume)	2.5 cu ft	6.0 cu ft
Capacity (Weight)	350 lb	650 lb
Spreading Width	30" to 36"	30" to 36"
Approx. Weight (Empty)	130 lb	160 lb
Overall Dimensions (LxWxH)	17" x 42" x 17.5"	20" x 42" x 28"
Hopper Dimensions (LxWxH)	13" x 36.5" x 17.25"	17" x 36.5" x 28"

Specification	87530	87630
Model Numbers	250	600
Vehicle Compatibility	UTVs & Tractors	UTVs & Tractors
Material Compatibility	Bagged Salt / Ice Melt, Bulk Salt & Fine Materials	Bagged Salt / Ice Melt, Bulk Salt & Fine Materials
Motor	1/3 hp	1/3 hp
Frame, Hopper & Auger Drive Assembly	201 Stainless Steel	201 Stainless Steel
Available Mounts	3-Point Hitch, 2" Hitch Receiver, or In-Bed Mount	3-Point Hitch, 2" Hitch Receiver, or In-Bed Mount
Hopper Construction	201 Stainless Steel	201 Stainless Steel
