MARAUDER™
Poly Hopper Spreader
Quick Specs
Select a model:
- 1.5 cu yd Capacity (Volume)
- 3,240 lb Capacity (Weight)
- 74" Rec. Bed Length
- 1.5 cu yd Capacity (Volume)
- 3,240 lb Capacity (Weight)
- 74" Rec. Bed Length
- 2.2 cu yd Capacity (Volume)
- 4,752 lb Capacity (Weight)
- 90" Rec. Bed Length
- 2.2 cu yd Capacity (Volume)
- 4,752 lb Capacity (Weight)
- 90" Rec. Bed Length
- Materials: Salt, Sand & Liquid Brine*
Verify compatibility and part number information
SUPERIOR MATERIAL FLOW,
READY TO ATTACK ANY STORM

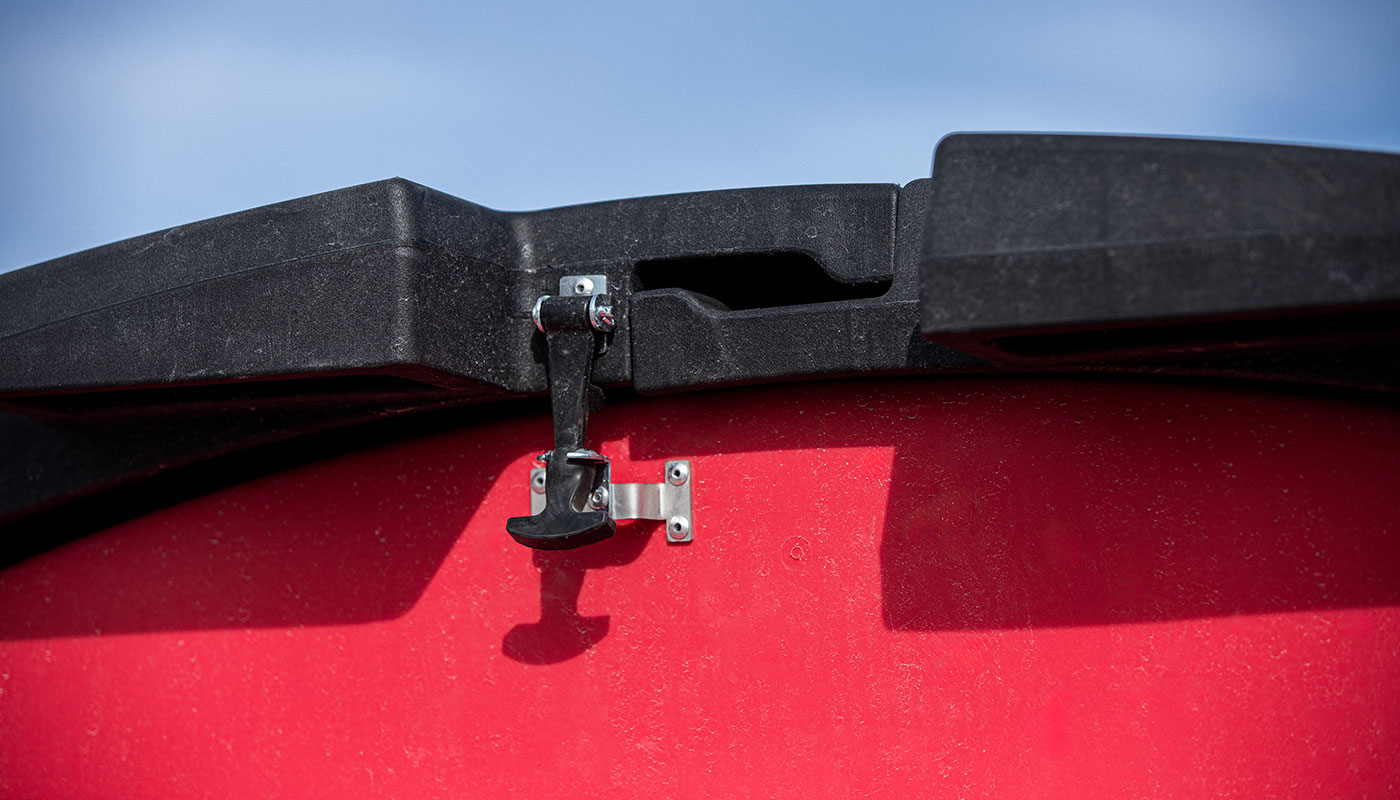

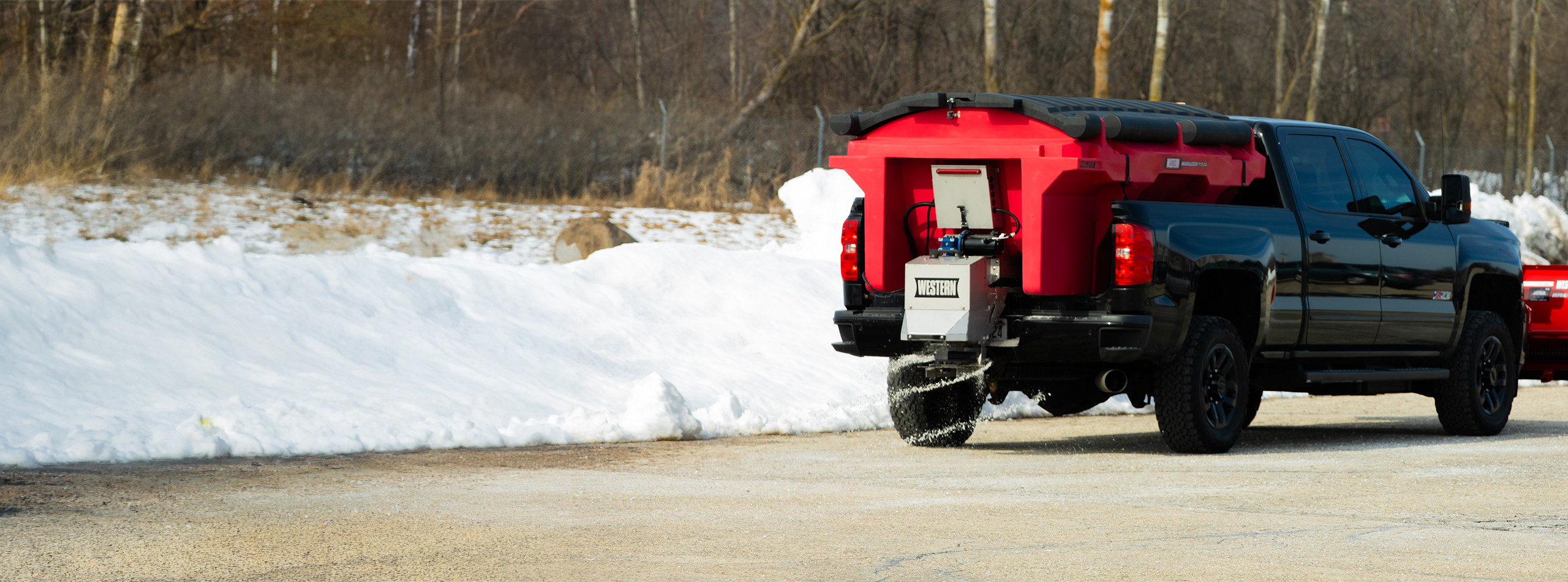

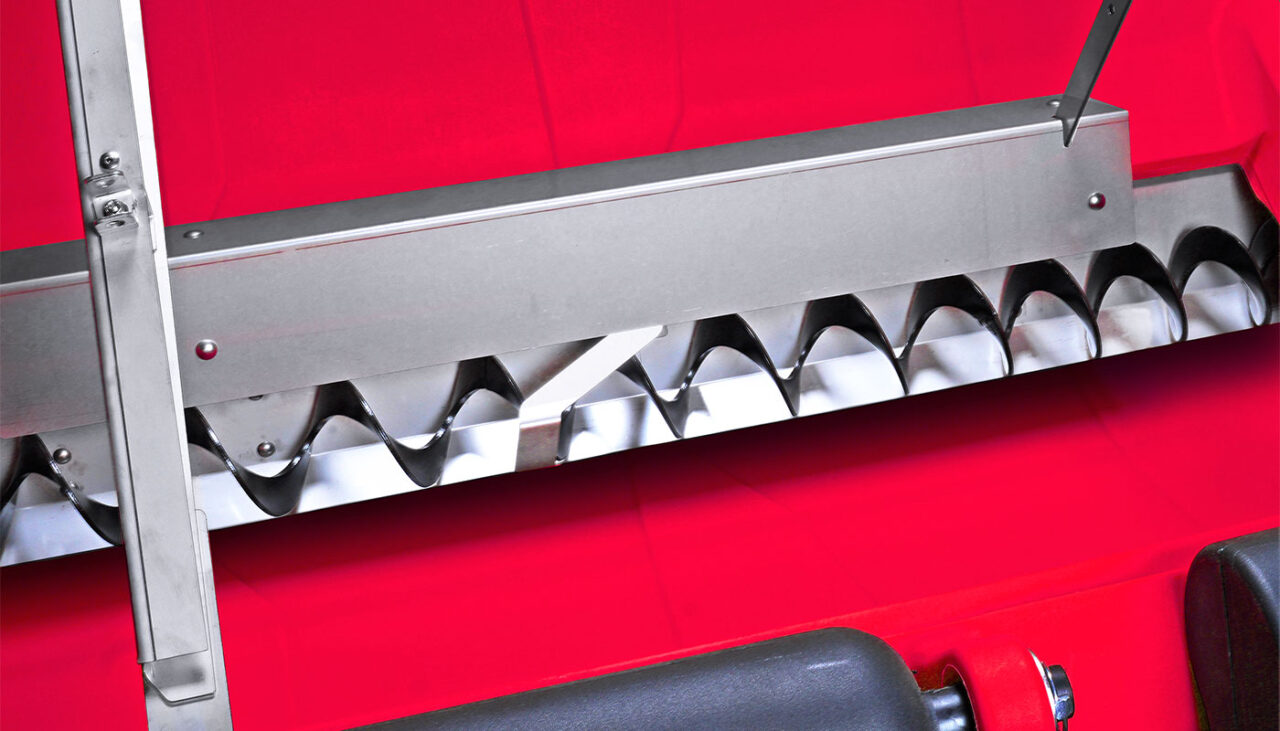

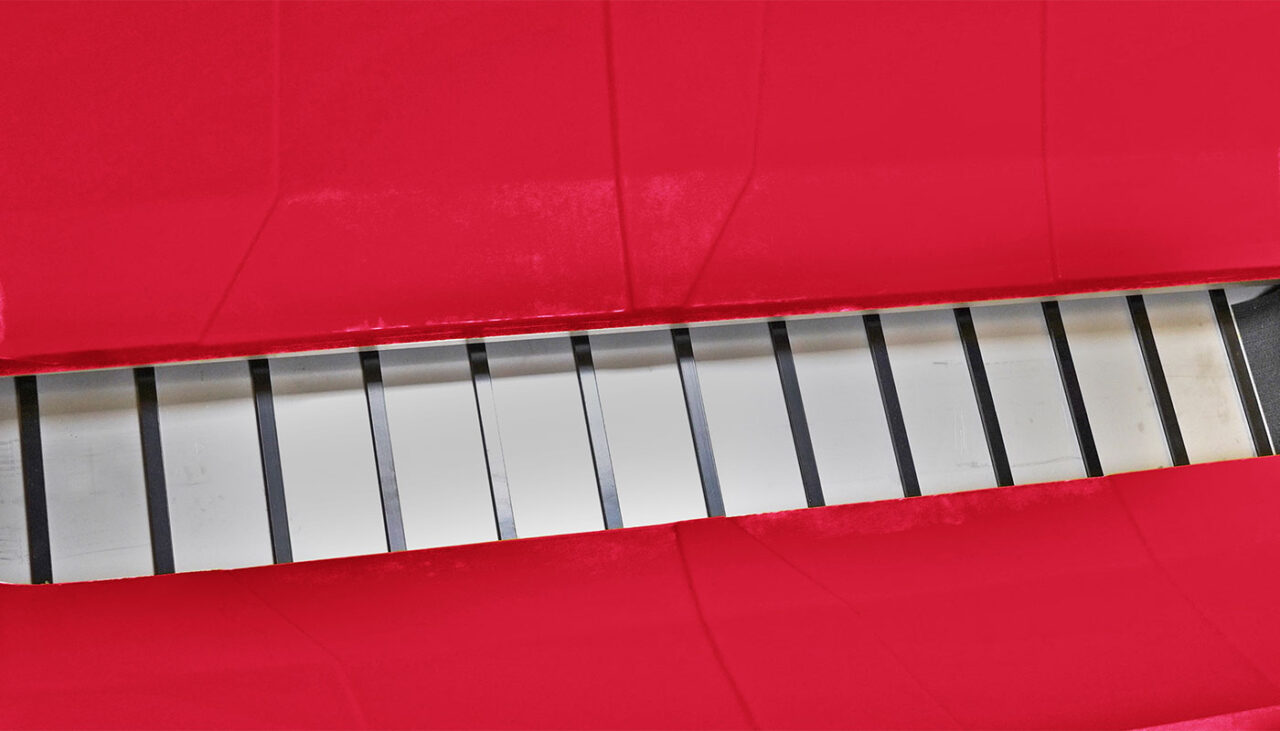

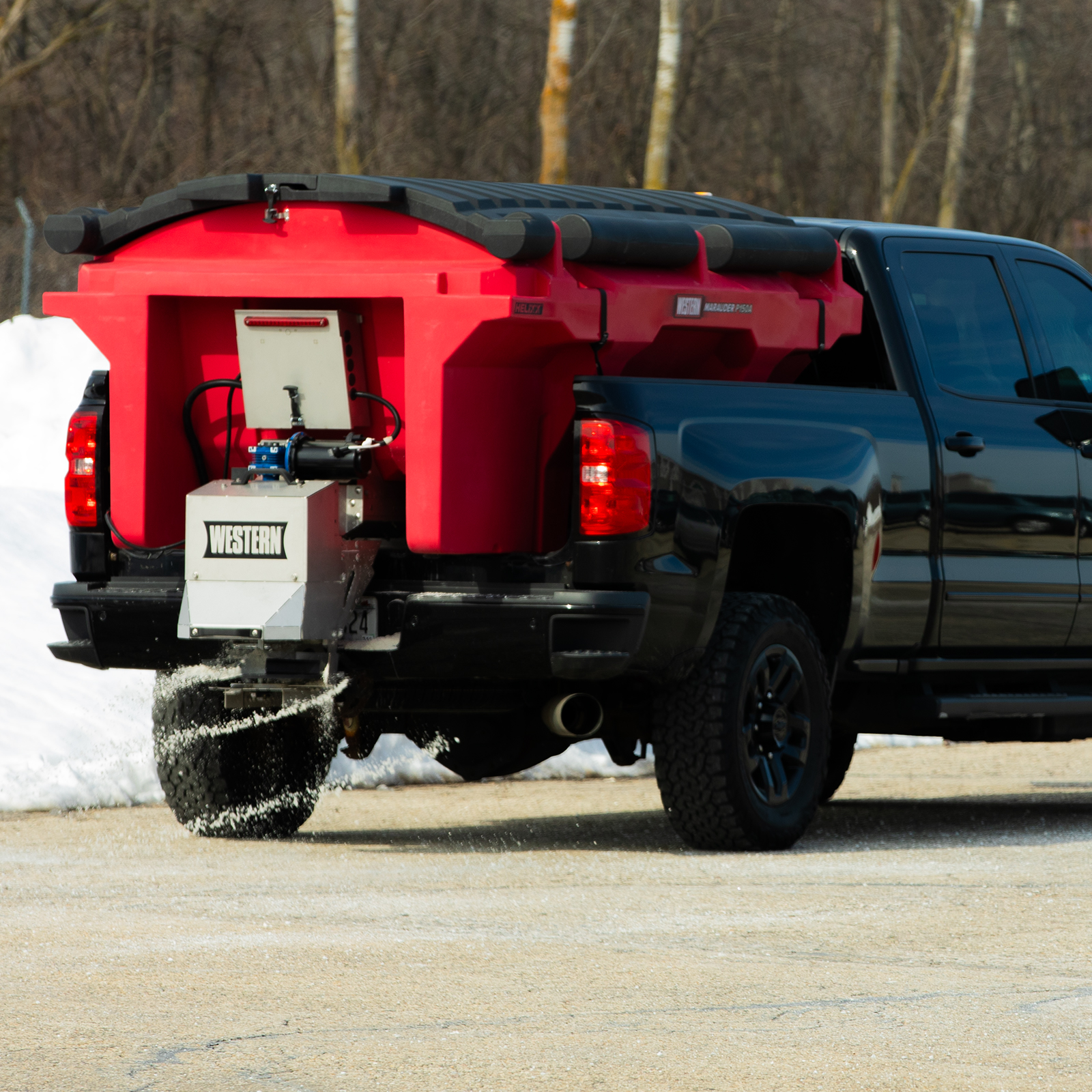

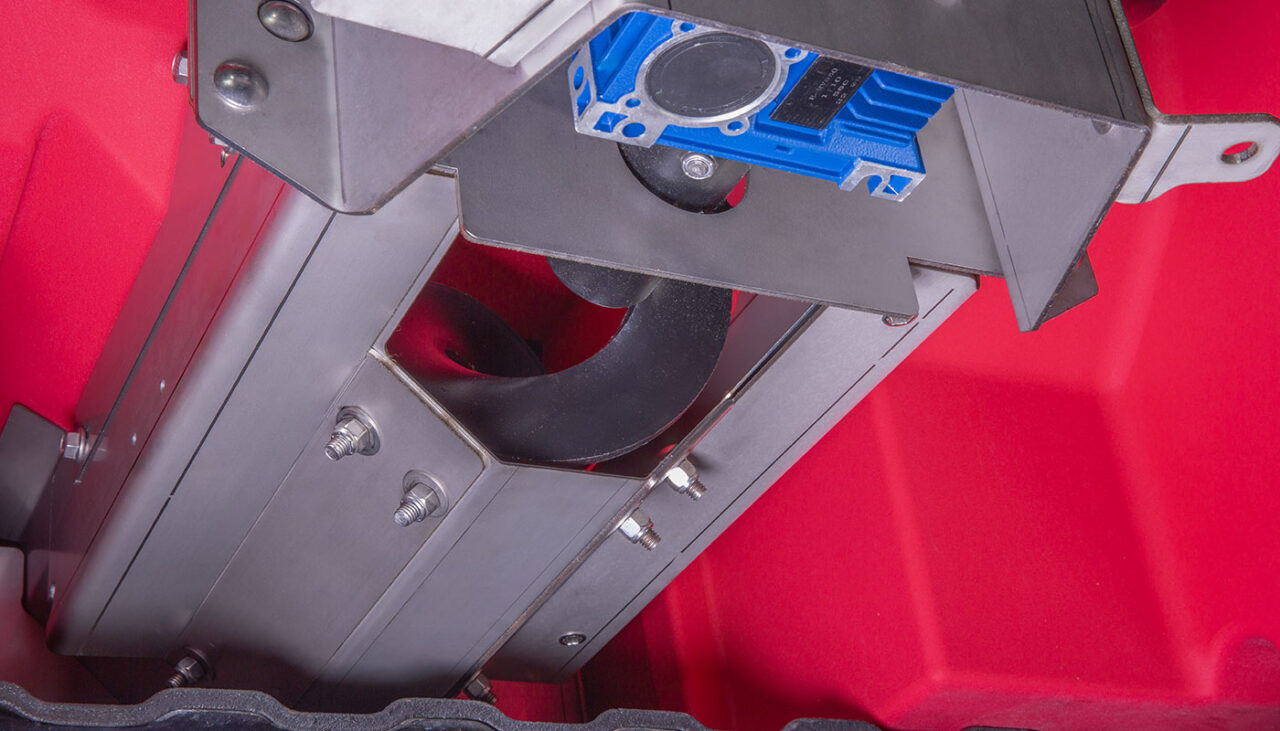

Own the storm with the WESTERN® MARAUDER poly hopper spreader line. Its robust, corrosion-free construction provides a durable, lightweight, and low-maintenance alternative to metal that stands up to aggressive de-icing chemicals. This ensures long-term reliability for your fleet. Standard, durable poly lids keep material dry and protect the vehicle from overspill during loading. Choose the material delivery system that’s best for your operation: the precise HELIXX™ shaftless auger for bulk rock salt or the heavy-duty pintle chain conveyor for bulk sand or salt/sand mix application. All units work with the Tri-Shield liquid accessory to enable pre-wet and direct liquid application in addition to granular application. Give your crew the right tool to quickly and profitably clear the entire commercial property.
Compatible with Truck
Hopper spreaders require bolting to the vehicle frame for proper operator safety.
Unique Features
Hopper Construction
- Corrosion-resistant polyethylene is lightweight, yet highly durable
- Molded geometry ensures consistent material flow and prevents bridging
- Steel top screen prevents material bridging and clogging by breaking up large chunks while loading with an anchor piece that is bolted for easy replacement
- Easily connect accessories to the rear-mounted hub for automatic integration with spreader control, eliminating the need for extra wiring

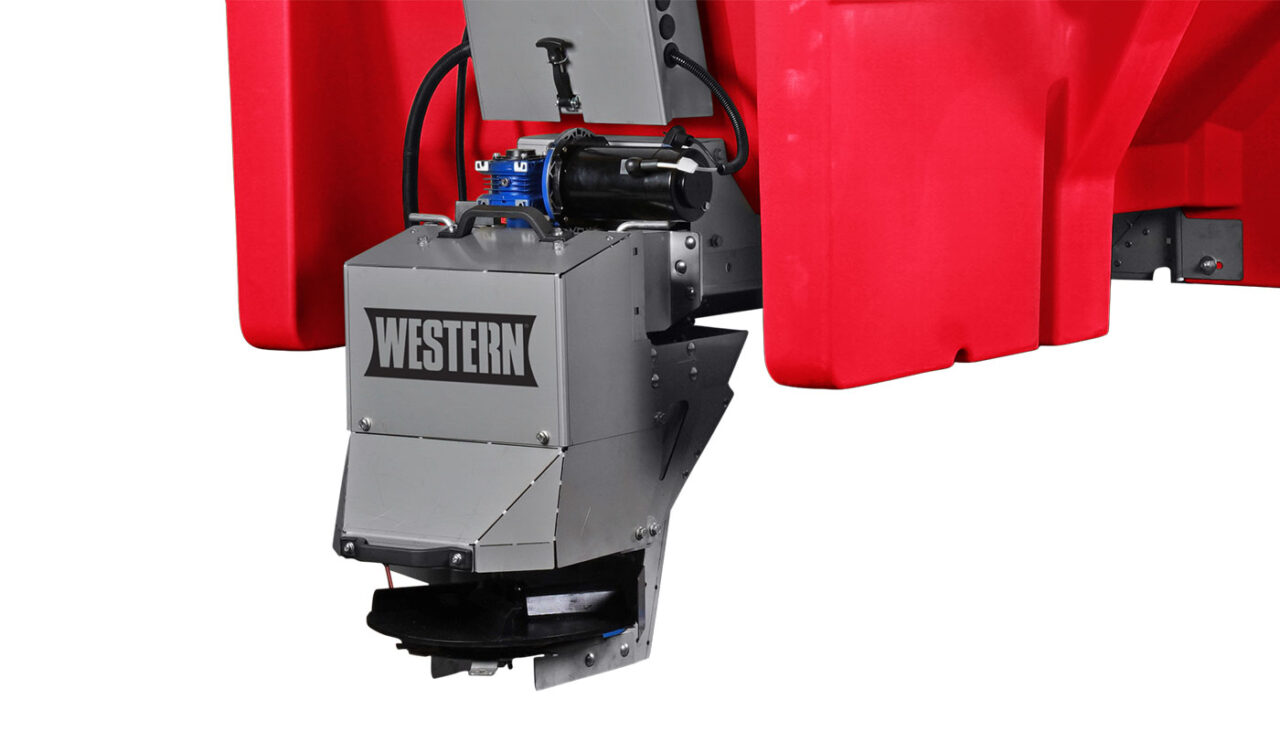

Chute Design

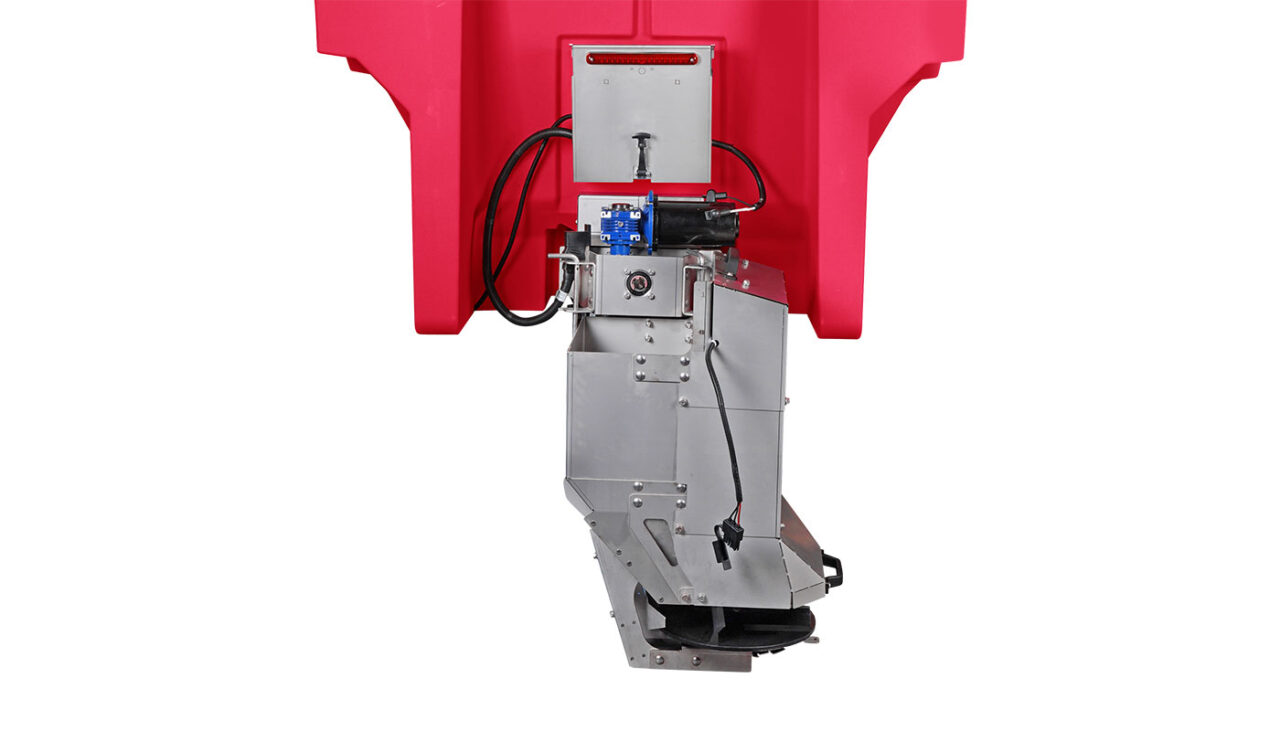

- Hinged design provides quick access to internal parts, making routine servicing fast and easy on all models
- Precision-engineered spinner ridges ensure an even, uniform spread pattern across the entire arc, preventing material clumping
- A direct-drive motor offers better torque and reduces maintenance
- Heavy-duty, weather resistant power plug is IP-68 rated with positive latching to ensure a secure connection, even with vibrations caused by consistent travel
Universal Features
Electric Motor
Shutter Deflector
Dump & Work Light Switches
FLEET FLEX Electrical System
Standard Options
Material compatibility
Accessories
Central Point Grease Kit
Part NumbersPart Number
The Central Point Grease Kit provides easy access to grease points, simplifying preventative maintenance greasing that is essential to maximize bearing life.
* Chain Models Only (P150C & P220C)
Ratchet Straps
Part NumbersPart Number
Positive locking mount with ratchet-strap assist provides additional in-bed stability, security, and simplifies installation for multiple vehicle types.
Hopper spreaders require bolting to the vehicle frame for proper operator safety.
Chute Extension Kit
Part NumbersPart Number
A chute extension kit can convert your short chute into a long chute.
Specifications
Selecting a model updates product features and specs below.
| Specification | 30810 | 31410 | 30820 | 31420 |
|---|---|---|---|---|
| Capacity (Volume) | 1.5 cu yd | 1.5 cu yd | 2.2 cu yd | 2.2 cu yd |
| Capacity (Weight) | 3,240 lb | 3,240 lb | 4,752 lb | 4,752 lb |
| Spreading Width |
Salt: Up to 36' Sand: Up to 24' |
Salt: Up to 36' |
Salt: Up to 36' Sand: Up to 24' |
Salt: Up to 36' |
| Approx. Weight (Empty) | 723 lb | 673 lb | 823 lb | 793 lb |
| Hopper Length (A) | 96.50" | 96.50" | 104.50" | 104.50" |
| Bed Length (B) | 80" | 80" | 87" | 87" |
| Overall Hopper Length (C) | 108.25" | 108.25" | 116.25" | 116.25" |
| Width of Hopper Opening (D) | 63.50" | 63.50" | 63.50" | 63.50" |
| Height of Hopper w/o Chute (E) | 46" | 46" | 51.50" | 51.50" |
| Body Side Length | 7' | 7' | 8’ | 8’ |
| Rec. Bed Length | 74" | 74" | 90" | 90" |
| Material Delivery Dimensions | 16" Wide | 6" Diameter | 16" Wide | 6" Diameter |
| Spinner Size | 16" Diameter | 16" Diameter | 16" Diameter | 16" Diameter |
| Specification | 30810 | 31410 | 30820 | 31420 |
|---|---|---|---|---|
| Smart Model Number | P150C | P150A | P220C | P220A |
| Vehicle Compatibility | ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck | ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck | ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck | ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck |
| Material Compatibility | Bulk Salt, Bulk Sand, 50/50 Mix, Pre-Wet & Liquid Brine | Bulk Salt, Pre-Wet & Liquid Brine | Bulk Salt, Bulk Sand, 50/50 Mix, Pre-Wet & Liquid Brine | Bulk Salt, Pre-Wet* & Liquid Brine* |
| Hopper Construction | Polyethylene Body, Stainless Steel Drive Line | Polyethylene Body, Stainless Steel Drive Line | Polyethylene Body, Stainless Steel Drive Line | Polyethylene Body, Stainless Steel Drive Line |
| Factory Chute Configuration | Short | Short | Short | Short |
