Hydraulic-Wing Pusher Plow
NEW 30" Height!
- Blade Width: 8', 10', 12', 14' & 16'
- Fits: Skid-Steers, Tractors & Wheel Loaders
- Moldboard: Powder-Coated Steel
PUSH FORWARD WITH
UNMATCHED PLOWING VERSATILITY

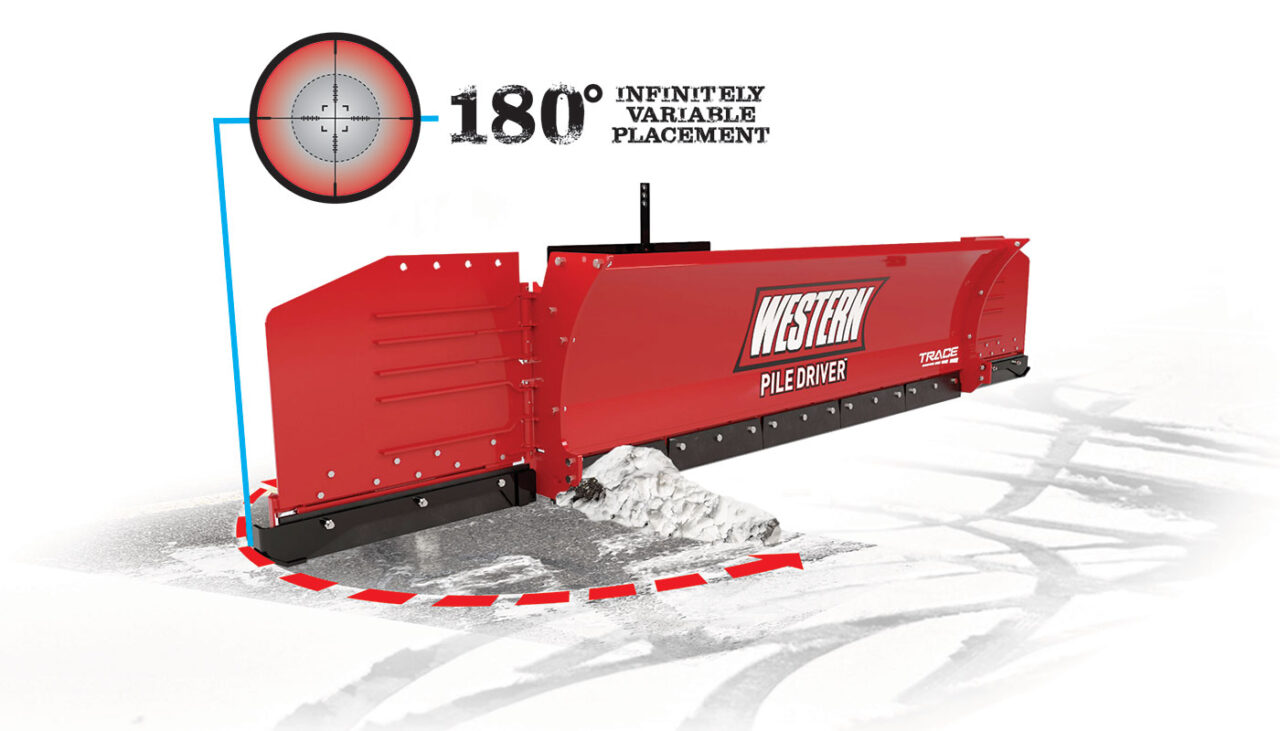

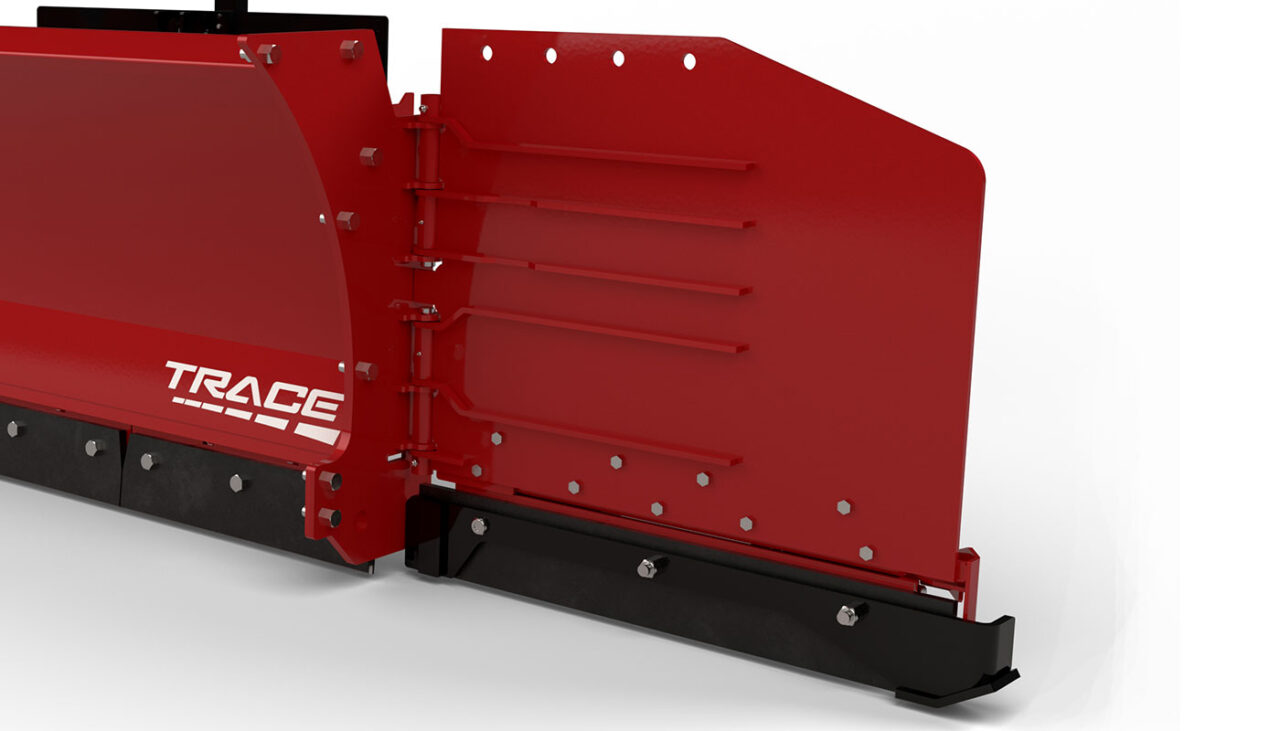

Move massive amounts of snow at a wide range of properties with the WESTERN® PILE DRIVER™ XL hydraulic wing pusher plows. Their hydraulic, independently controlled wings can be positioned anywhere within a 180-degree arc of travel, allowing you to instantly switch from a wide-open box plow to a tight windrow or a straight blade to maximize snow removal and work around obstacles. This unrivaled versatility gives you the perfect configuration for any job on the fly, ensuring maximum scraping performance and profitability.

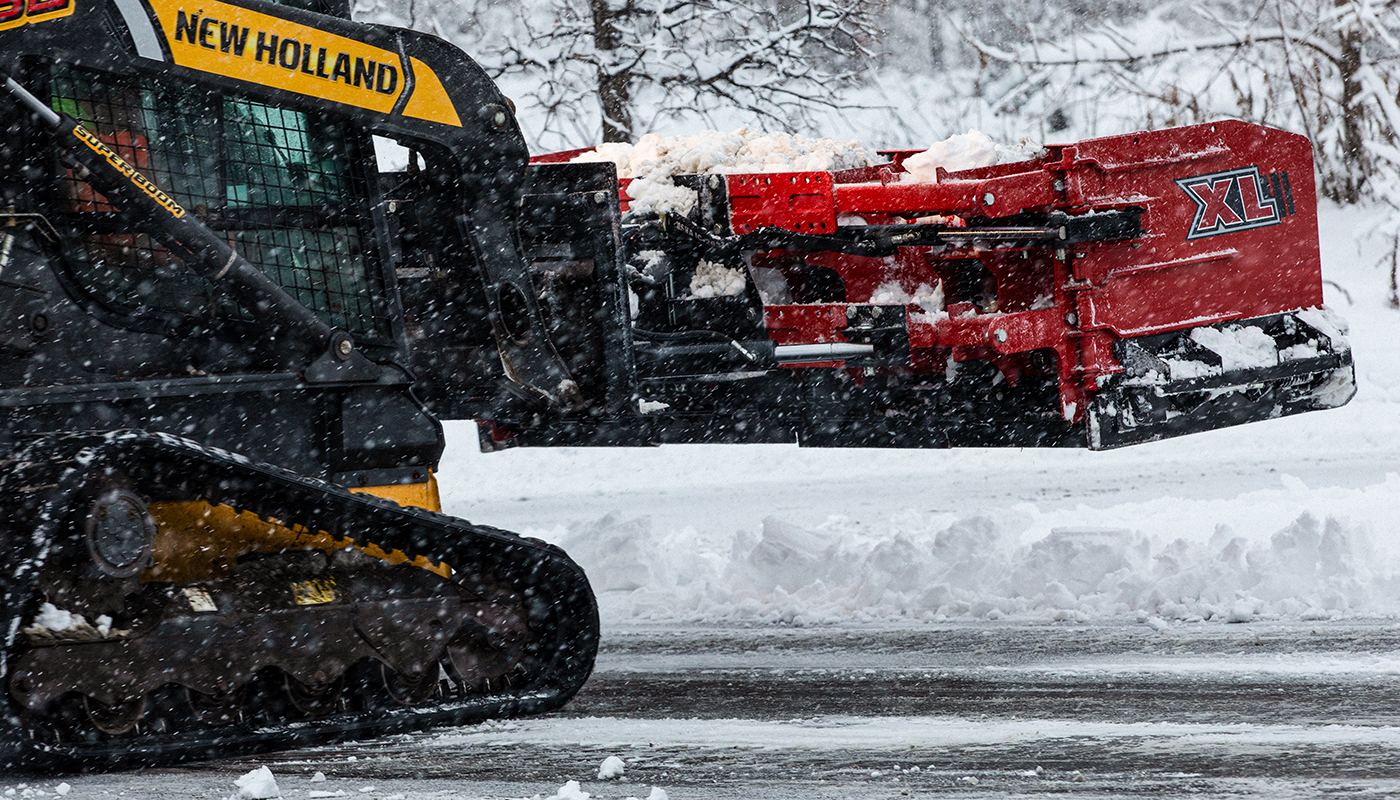

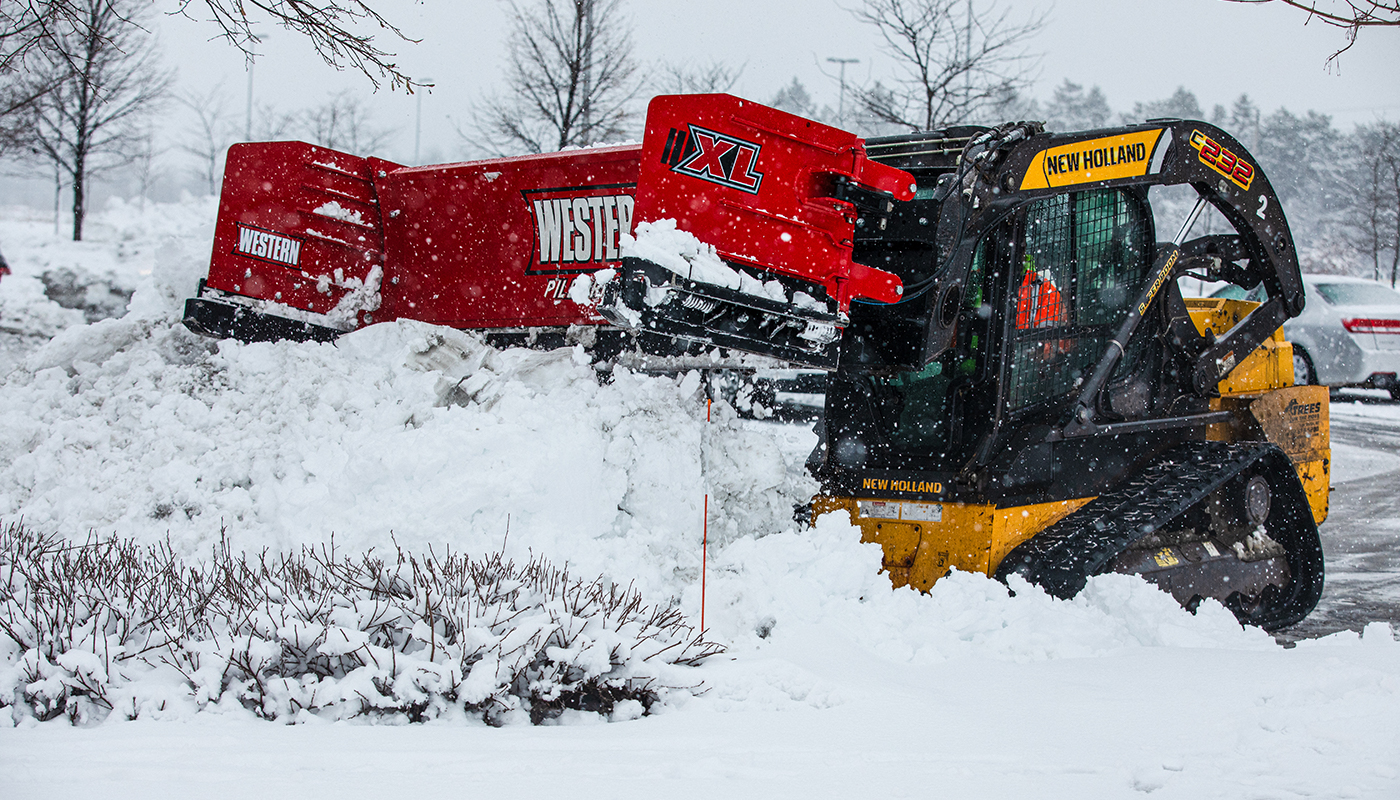

Compatible with Skid-Steers, Tractors & Wheel Loaders
Product Specs
Metric
| Models | 31108-3 | 31708-3 | 31110-3 | 31710-2 | 32722-3 | 31712-3 | 32604-3 | 31714-3 | 32606-3 | 31716-3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Blade Width & Height | 8' x 30" | 8' x 36" | 10' x 30" | 10' x 36" | 12' x 30" | 12' x 42" | 14' x 30" | 14' x 42" | 16' x 30" | 16' x 42" |
| Blade Width & Height | 8' x 30" | 8' x 36" | 10' x 30" | 10' x 36" | 12' x 30" | 12' x 42" | 14' x 30" | 14' x 42" | 16' x 30" | 16' x 42" |
| Moldboard Options | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel |
| Moldboard Options | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel |
| Blade Type | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher |
| Blade Type | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher |
| Vehicle Compatibility | Skid-Steer | Tractor / Wheel Loader | Skid-Steer | Tractor / Wheel Loader | Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors | Tractor / Wheel Loader | Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors | Wheel Loader | Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors | Wheel Loader |
| Vehicle Compatibility | Skid-Steer | Tractor / Wheel Loader | Skid-Steer | Tractor / Wheel Loader | Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors | Tractor / Wheel Loader | Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors | Wheel Loader | Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors | Wheel Loader |
| Approx. Weight* (Without Mount) | 2,533 lb | 2,628 lb | 2,770 lb | 2,822 lb | 2,950 lb | 3,197 lb | 3,317 lb | 3,666 lb | 3,551 lb | 3,855 lb |
| Approx. Weight* (Without Mount) | 1,148.9 kg | 1,192.0 kg | 1,256.5 kg | 1,280.1 kg | 1,340.9 kg | 1,450.1 kg | 1,507.7 kg | 1,662.9 kg | 1,614.1 kg | 1,748.6 kg |
| Application Weight (Max Operating Weight) | 8,000 lb | 10,000 lb | 9,000 lb | 12,000 lb | 25,000 lb | 25,000 lb | 25,000 lb | 30,000 lb | 25,000 lb | 35,000 lb |
| Application Weight (Max Operating Weight) | 3,628.7 kg | 4,535.9 kg | 4,082.3 kg | 5,443.1 kg | 11,339.8 kg | 11,339.8 kg | 11,339.8 kg | 13,607.8 kg | 11,339.8 kg | 15,875.7 kg |
| Horsepower Compatibility | 45+ hp (Skid-Steer) | 40+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe) | 60+ hp (Skid-Steer) | 50+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe) | 40+ hp (Tractor) 60+ hp (Wheel Loader) | 100+ hp (Wheel Loader & Backhoe) | 40+ hp (Tractor) 60+ hp (Wheel Loader) | 140+ hp (Wheel Loader & Backhoe) | 40+ hp (Tractor) 60+ hp (Wheel Loader) | 140+ hp (Wheel Loader & Backhoe) |
| Horsepower Compatibility | 45+ hp (Skid-Steer) | 40+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe) | 60+ hp (Skid-Steer) | 50+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe) | 40+ hp (Tractor) 60+ hp (Wheel Loader) | 100+ hp (Wheel Loader & Backhoe) | 40+ hp (Tractor) 60+ hp (Wheel Loader) | 140+ hp (Wheel Loader & Backhoe) | 40+ hp (Tractor) 60+ hp (Wheel Loader) | 140+ hp (Wheel Loader & Backhoe) |
| Blade Width | 8' | 8' | 10' | 10' | 12' | 12' | 14' | 14' | 16' | 16' |
| Blade Width | 2.44 m | 2.44 m | 3.05 m | 3.05 m | 3.66 m | 3.66 m | 4.27 m | 4.27 m | 4.88 m | 4.88 m |
| Blade Height | 30" | 36" | 30" | 36" | 30" | 42" | 30" | 42" | 30" | 42" |
| Blade Height | 76.2 cm | 91.44 cm | 76.2 cm | 91.44 cm | 76.20 cm | 106.68 cm | 76.20 cm | 106.68 cm | 76.20 cm | 106.68 cm |
| Side Plate Width | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" |
| Side Plate Width | 91.44 cm | 91.44 cm | 91.44 cm | 91.44 cm | 91.44 cm | 91.44 cm | 91.44 cm | 91.44 cm | 91.44 cm | 91.44 cm |
| Side Plate Height | 30" | 36" | 30" | 36" | 30" | 42" | 42" | 42" | 42" | 42" |
| Side Plate Height | 76.2 cm | 91.44 cm | 76.2 cm | 91.44 cm | 76.20 cm | 106.68 cm | 106.68 cm | 106.68 cm | 106.68 cm | 106.68 cm |
| Moldboard Radius | 27" | 27" | 27" | 27" | 27" | 46" | 27" | 46" | 27" | 46" |
| Moldboard Radius | 68.58 cm | 68.58 cm | 68.58 cm | 68.58 cm | 68.58 cm | 116.84 cm | 68.58 cm | 116.84 cm | 68.58 cm | 116.84 cm |
| Approx. Snow Capacity | 75 cu ft | 108 cu ft | 94 cu ft | 135 cu ft | 113 cu ft | 219 cu ft | 132 cu ft | 250 cu ft | 151 cu ft | 280 cu ft |
| Approx. Snow Capacity | 2.12 cu m | 3.06 cu m | 2.66 cu m | 3.82 cu m | 3.20 cu m | 6.20 cu m | 3.73 cu m | 7.08 cu m | 4.28 cu m | 7.96 cu m |

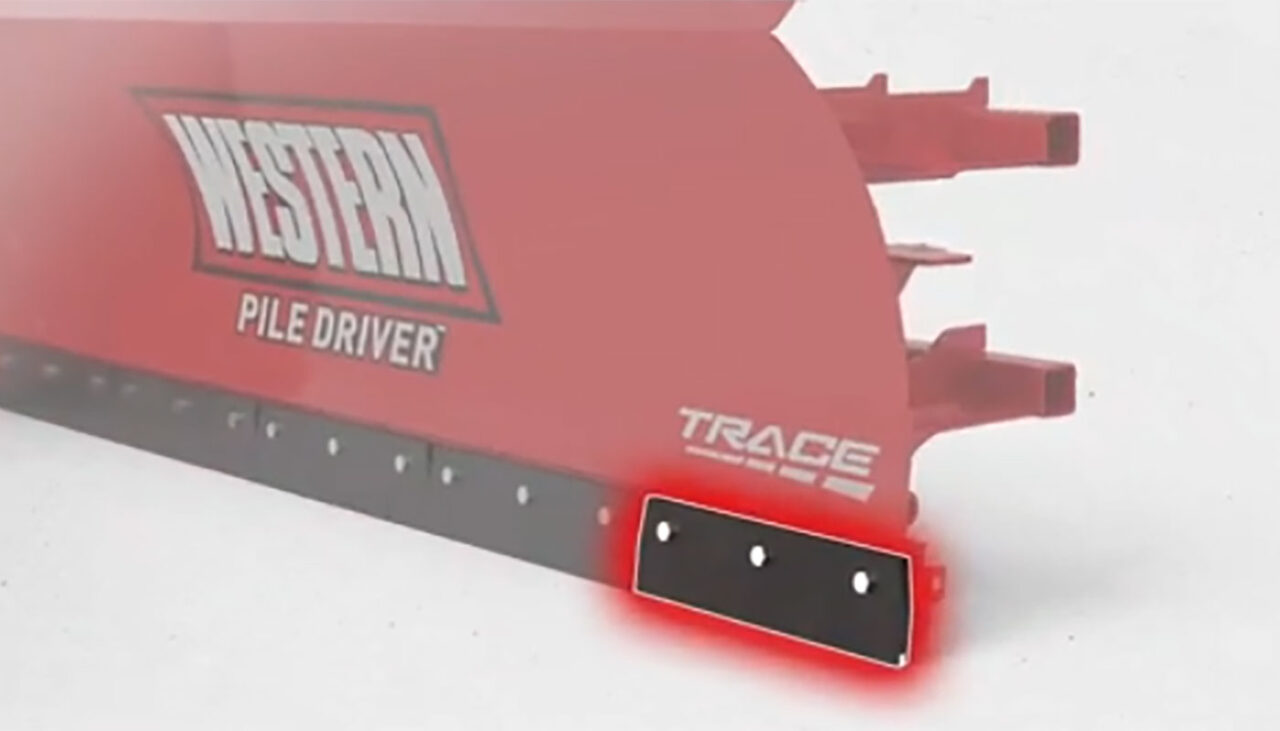

| Cutting Edge Technology | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge |
| Cutting Edge Technology | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge |
| Cutting Edge Material | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts |
| Cutting Edge Material | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts |

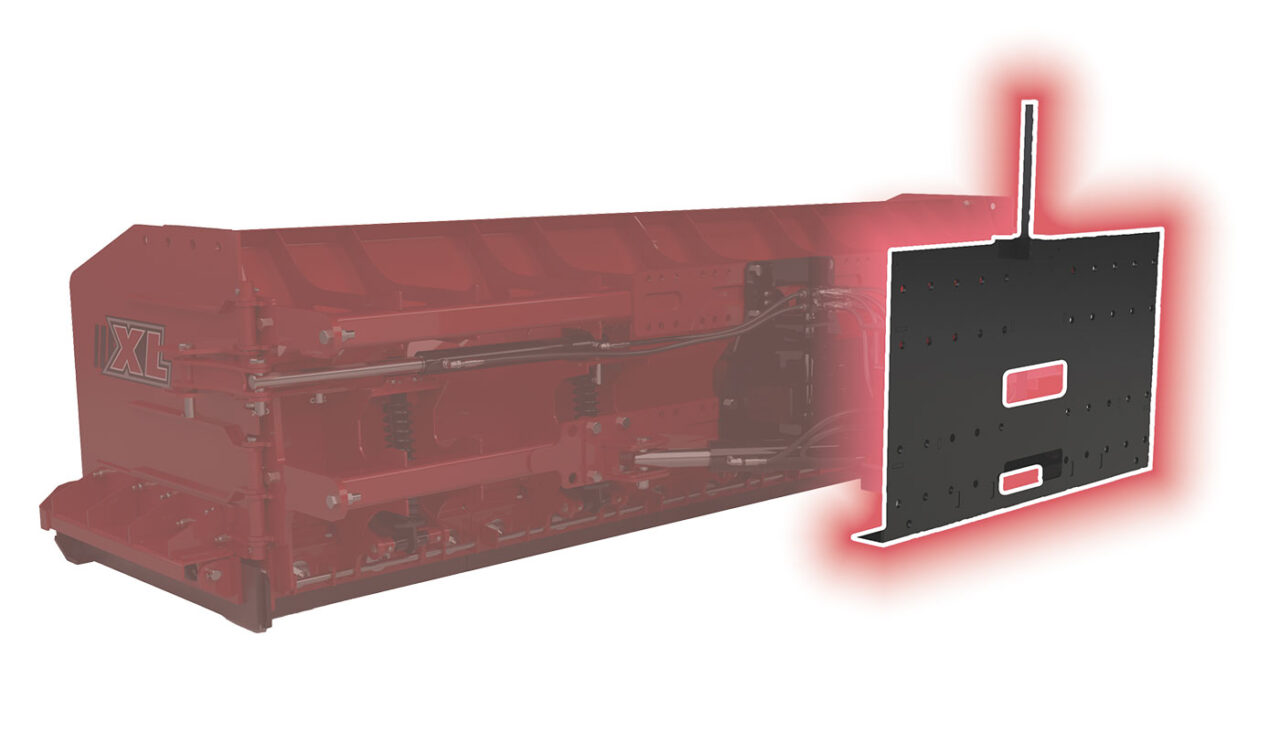

| Mount Type | Skid-Steer Attach Plate | Skid-Steer Attach Plate / Coupler | Skid-Steer Attach Plate | Skid-Steer Attach Plate / Coupler | Coupler | Coupler | Coupler | Coupler | Coupler | Coupler |
| Mount Type | Skid-Steer Attach Plate | Skid-Steer Attach Plate / Coupler | Skid-Steer Attach Plate | Skid-Steer Attach Plate / Coupler | Coupler | Coupler | Coupler | Coupler | Coupler | Coupler |
Product Literature & Support Manuals
Quick Match
Does This Pusher Fit My Vehicle?
Easily identify which WESTERN® pusher plows will fit your vehicle, based on your vehicle's unique specifications.

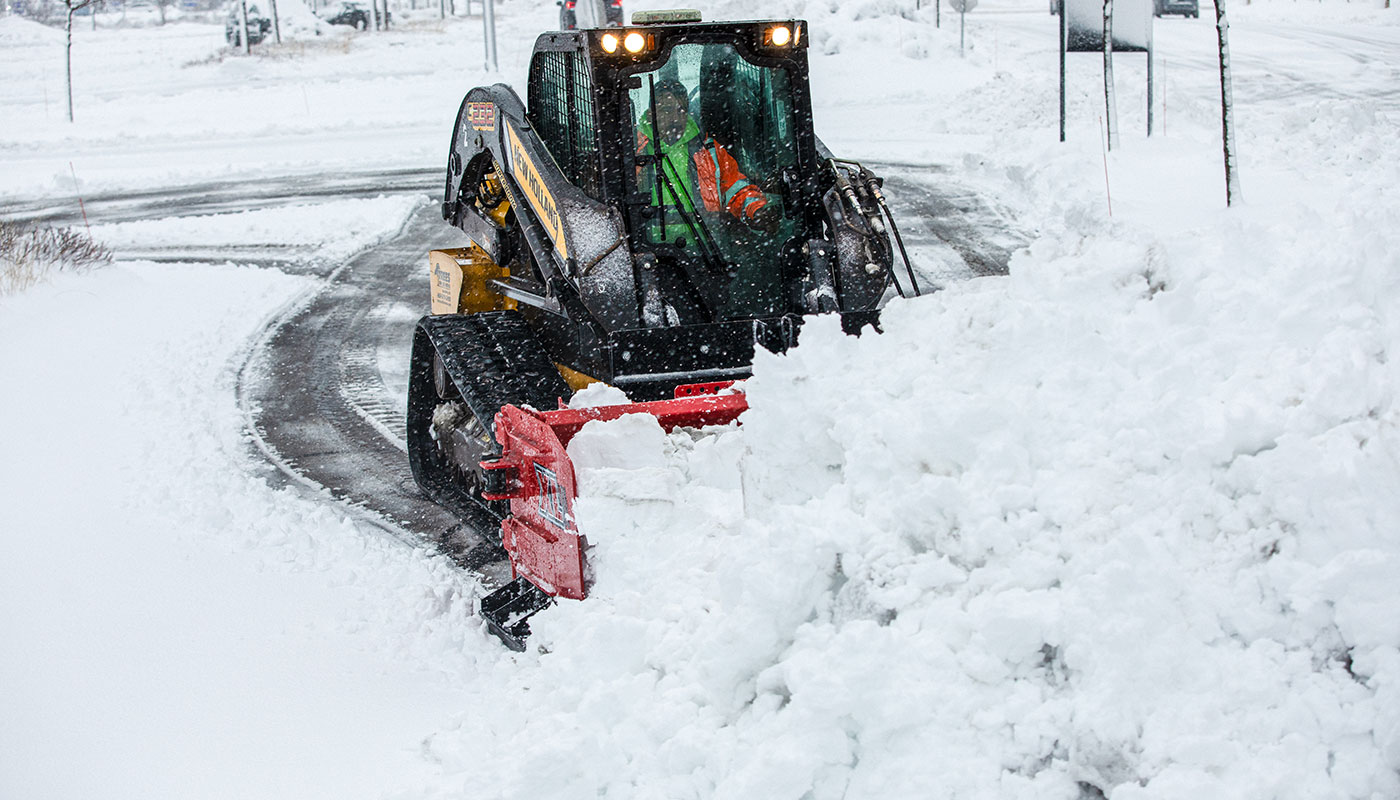

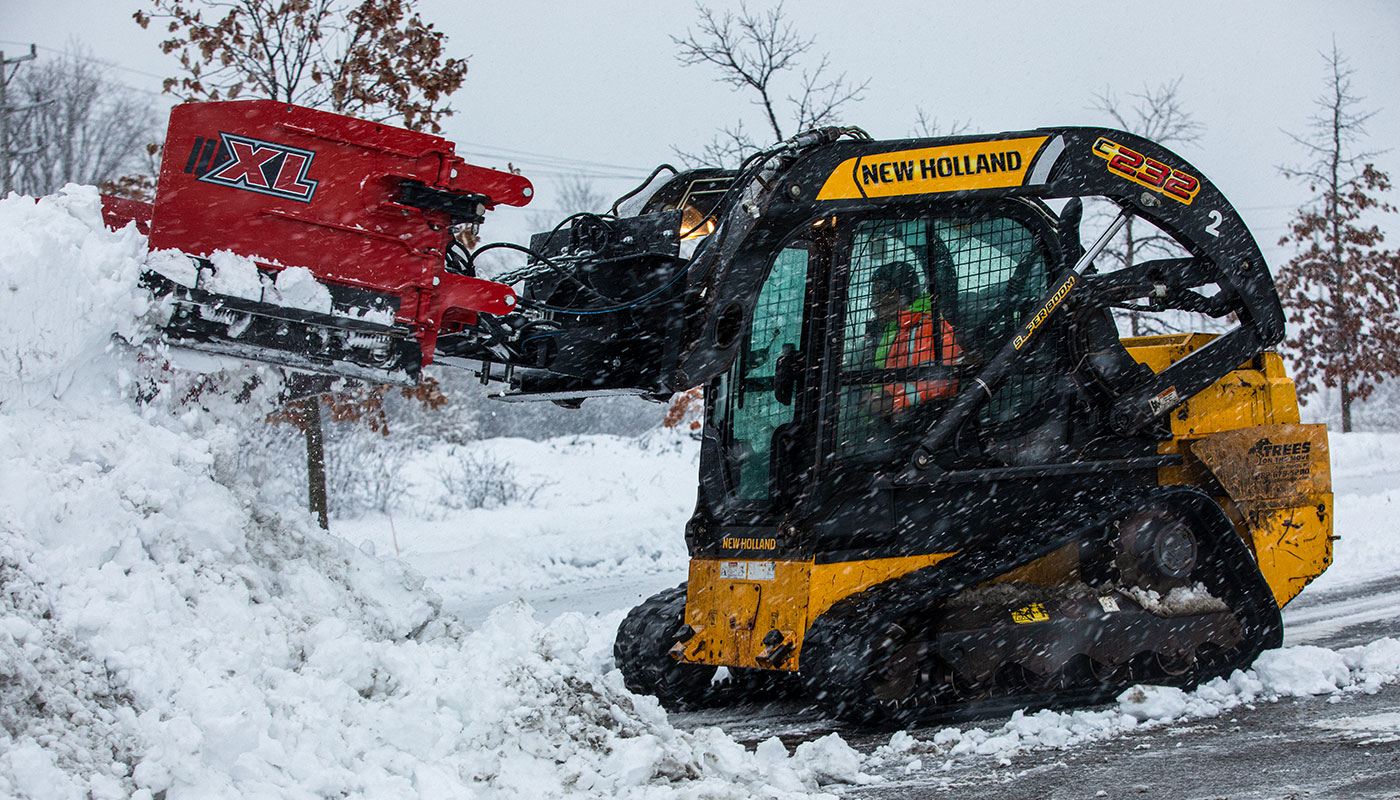

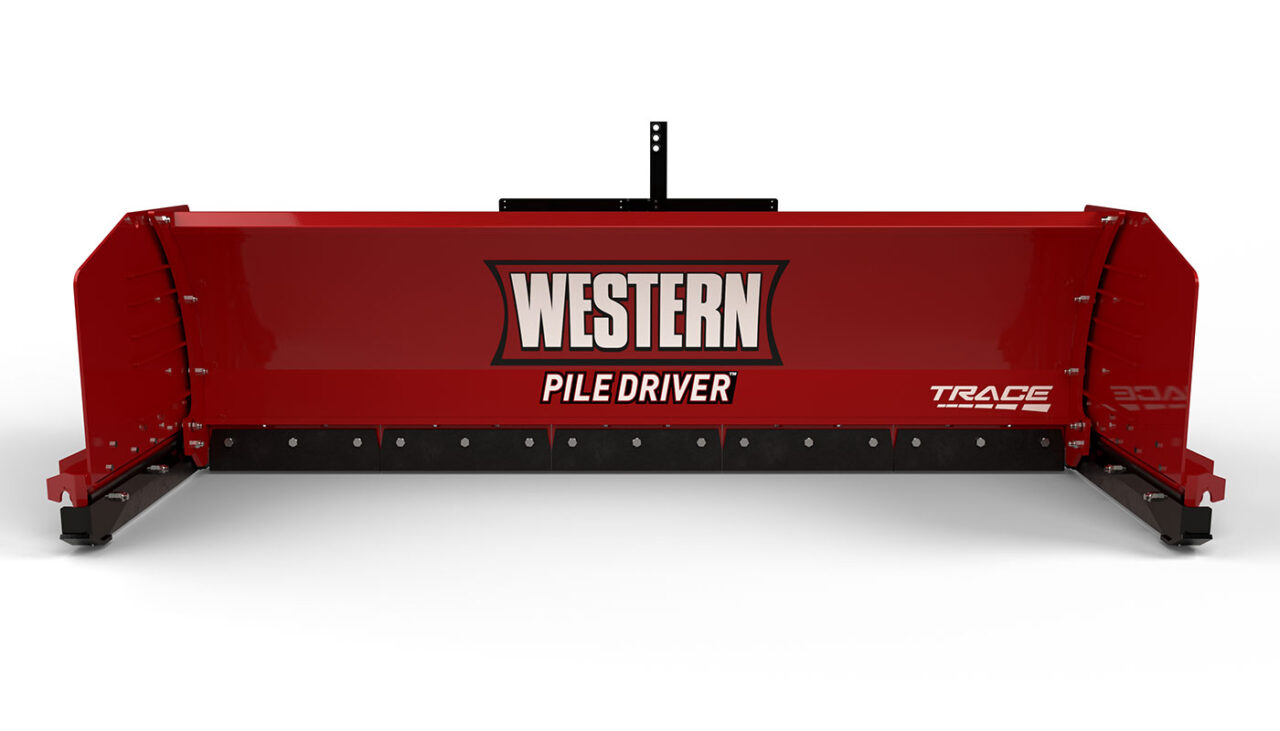

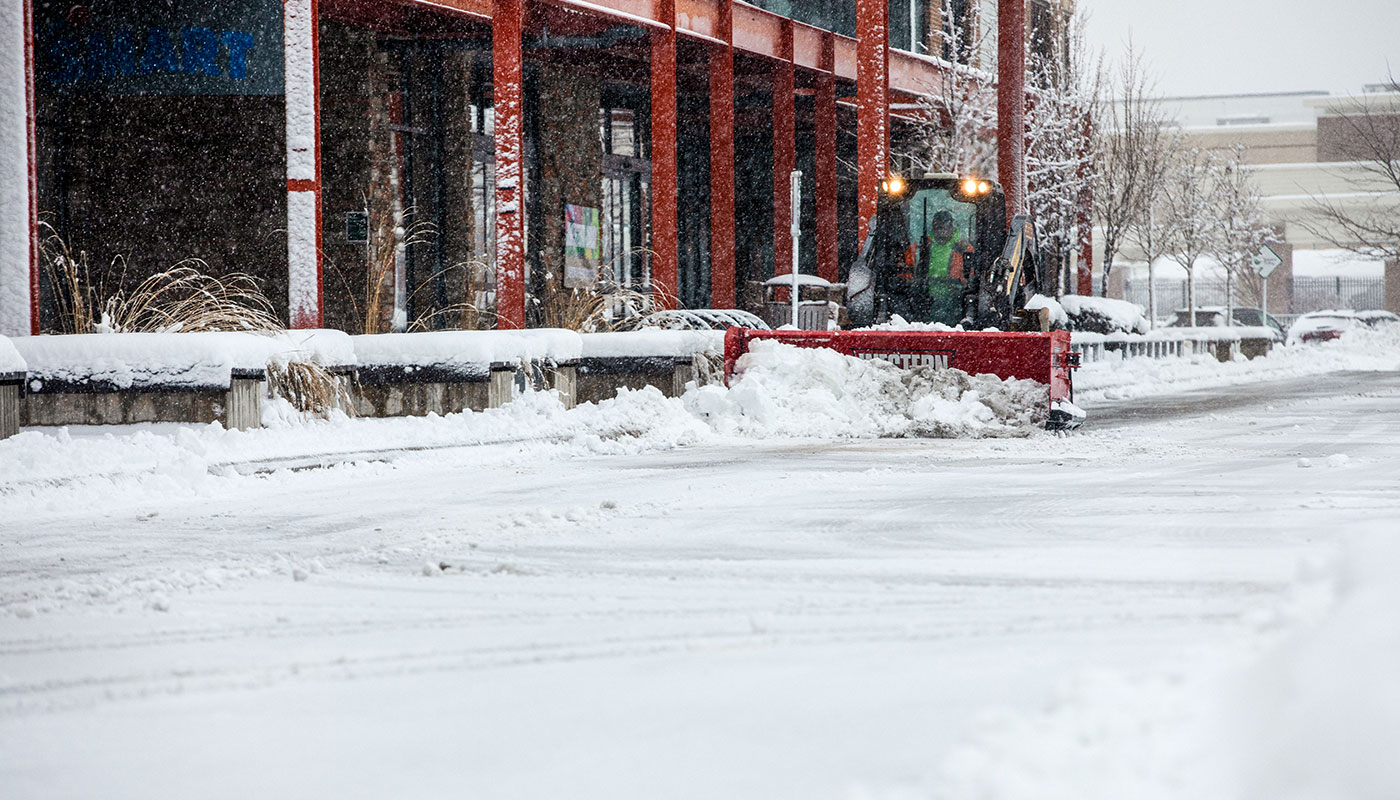

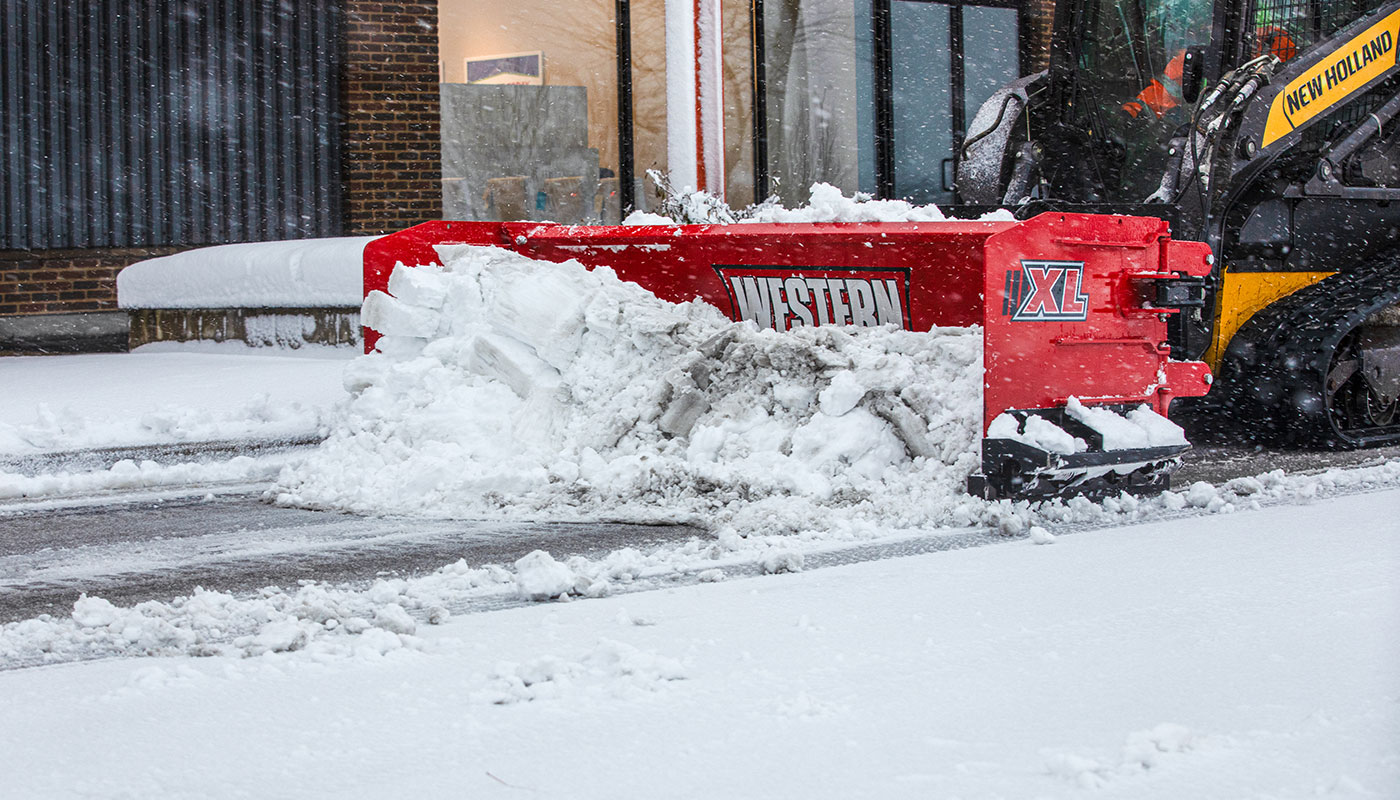

PILE DRIVER™ XL (TRACE™ Edge) Photo Gallery
